JUKI LU-2810-7 Series User Manual

– 2 –
2. Standard adjustment

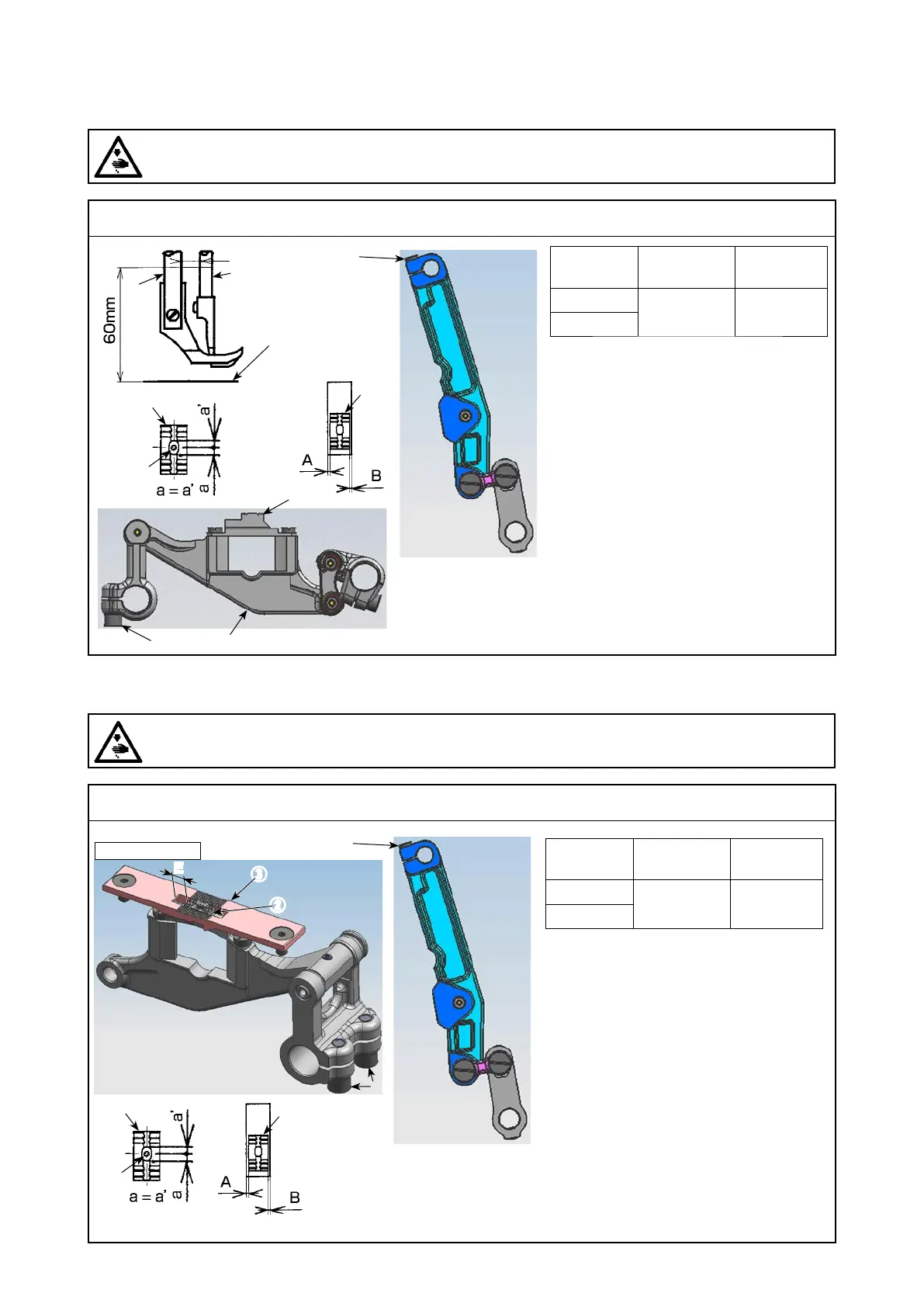

(1) Needle entry position (Standard gauge type)
WARNING :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.
Standard adjustment
(2) Needle entry position (Europe gauge type)
WARNING :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.
Standard adjustment
Model
Dimension E
(mm)
Gauge type
LU-2810
7.5 ± 0.1
Standard
gauge type
LU-2810-7
[Conditions]
• Needle bar at lowest dead point
• Feed amount : 0 mm
• Height of feed dog : 0.5 to 0.6 mm
(Highest position)
1
2
2
6
2
E
Top surface of
3
8
7
4
5
2
4
E
3
2
Operator's side
1
2
6
Model
Dimension E
(mm)
Gauge type
LU-2810
5.2 ± 0.2
Europe
gauge type
LU-2810-7
[Conditions]
• Needle bar at lowest dead point
• Feed amount : 0 mm
• Height of feed dog : 0.5 to 0.6 mm
(Highest position)
