JUKI LU-2810-7 Series - Feed Mechanism Adjustments

– 4 –

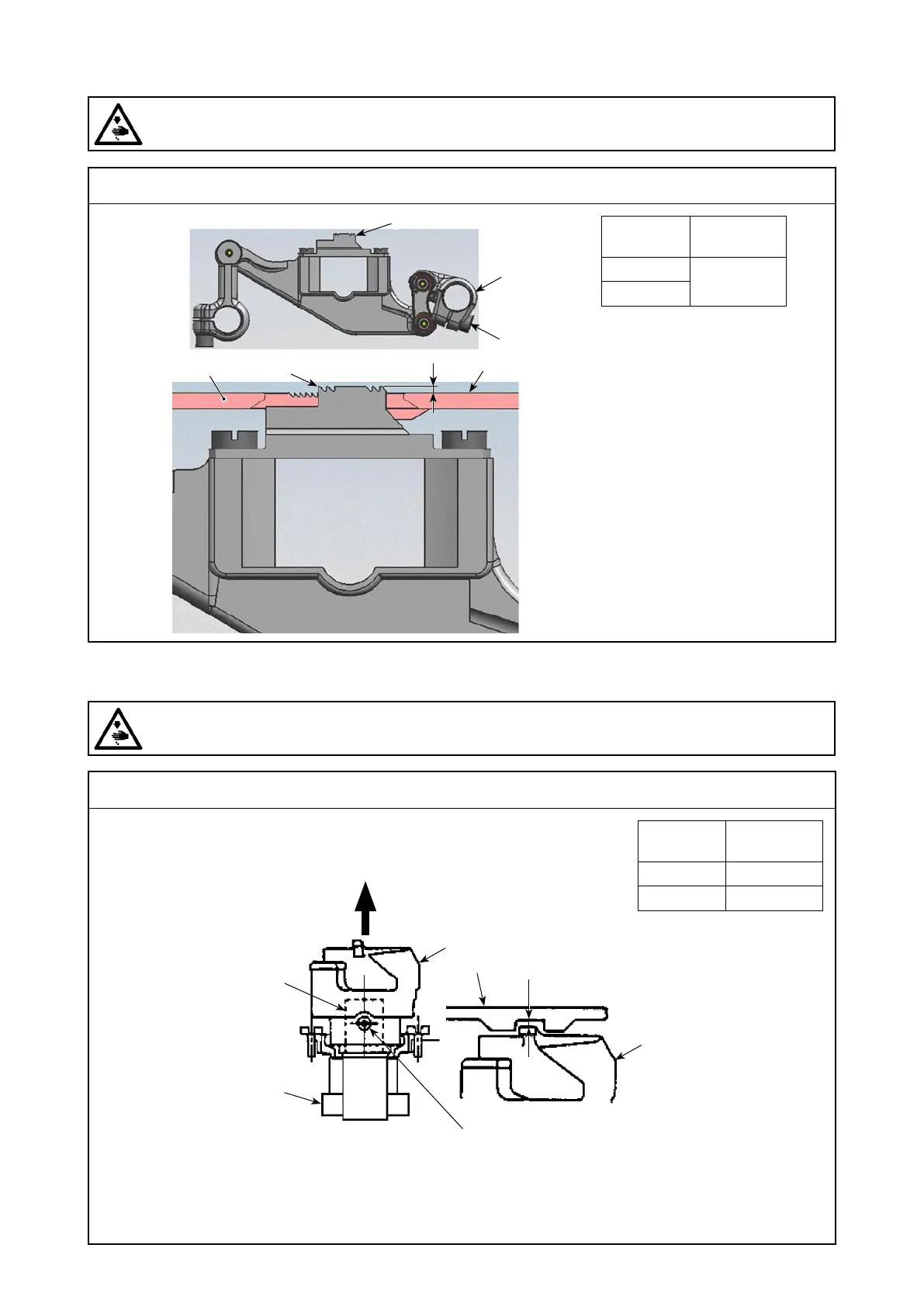

(3) Height of the feed dog
WARNING :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.
Standard adjustment
(4) Height of the hook
WARNING :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.
Standard adjustment
1
3
2
A
Top surface of
4
3
4
2
A
1
4
2
5
3
Model
Dimension A
(mm)
LU-2810
0.5 to 0.6
LU-2810-7
[Conditions]
• Feed amount : 0 mm
• Height of feed dog : maximum
Model
Dimension A
(mm)
LU-2810 1 ± 0.1
LU-2810-7 1.5 ± 0.1
