JUKI MO-114D - Removing Order of Covers; Front Cover; Base Plate

– 2 –

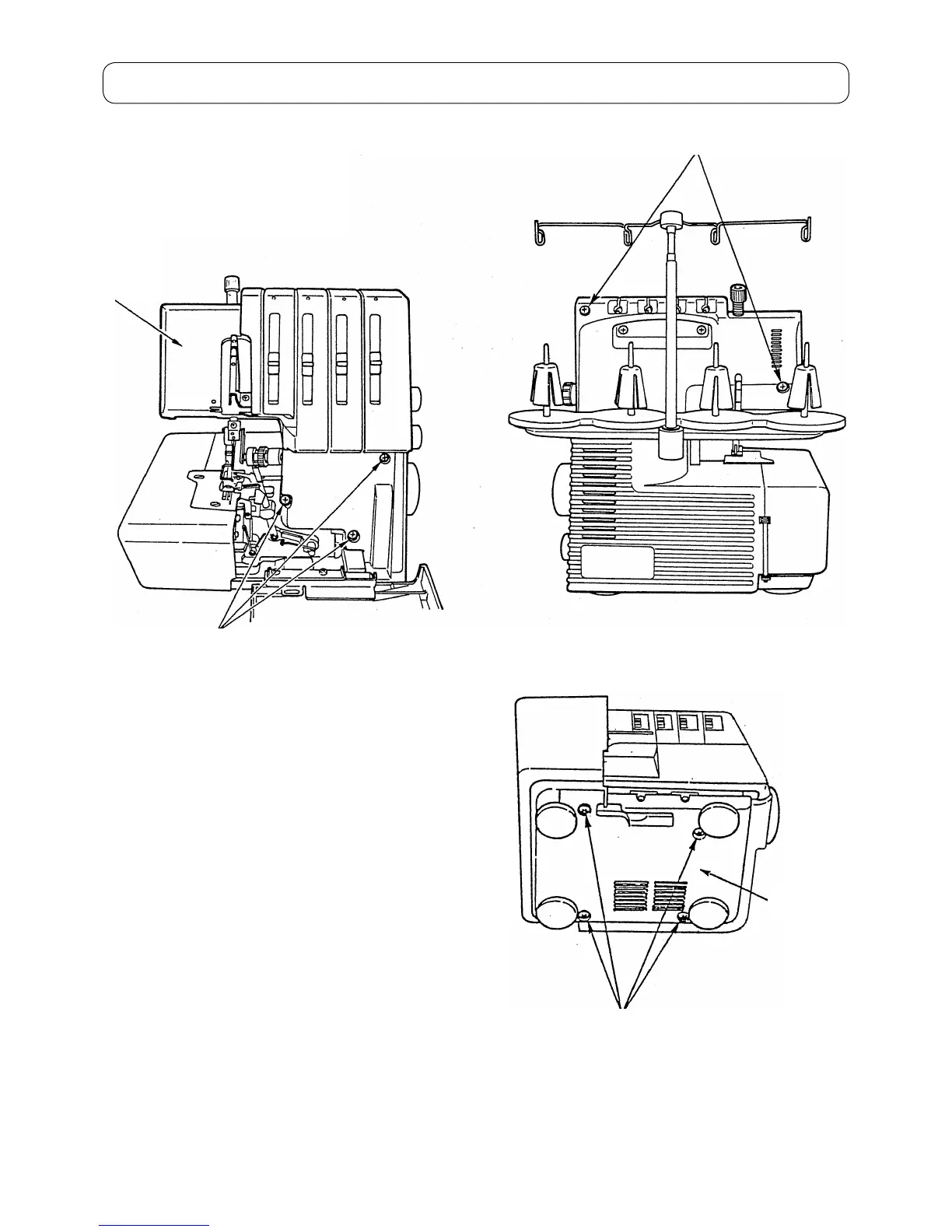

2. Removing order of covers
3
B
2
1
A
2-1. Front cover
○ Remove the setscrews
1
(3 locations).
○ Remove the setscrews
2
(2 locations).
○ Remove the front cover
A
.
2-2. Base plate
○ Remove the setscrews
3
(4 locations).
○ Remove the base plate
B
.
