(19) Position of the thread cam (Applicable only to MO-6716D series)
3) Adjusting looper thread auxiliary thread take-up lever (Exclusive for 30P)

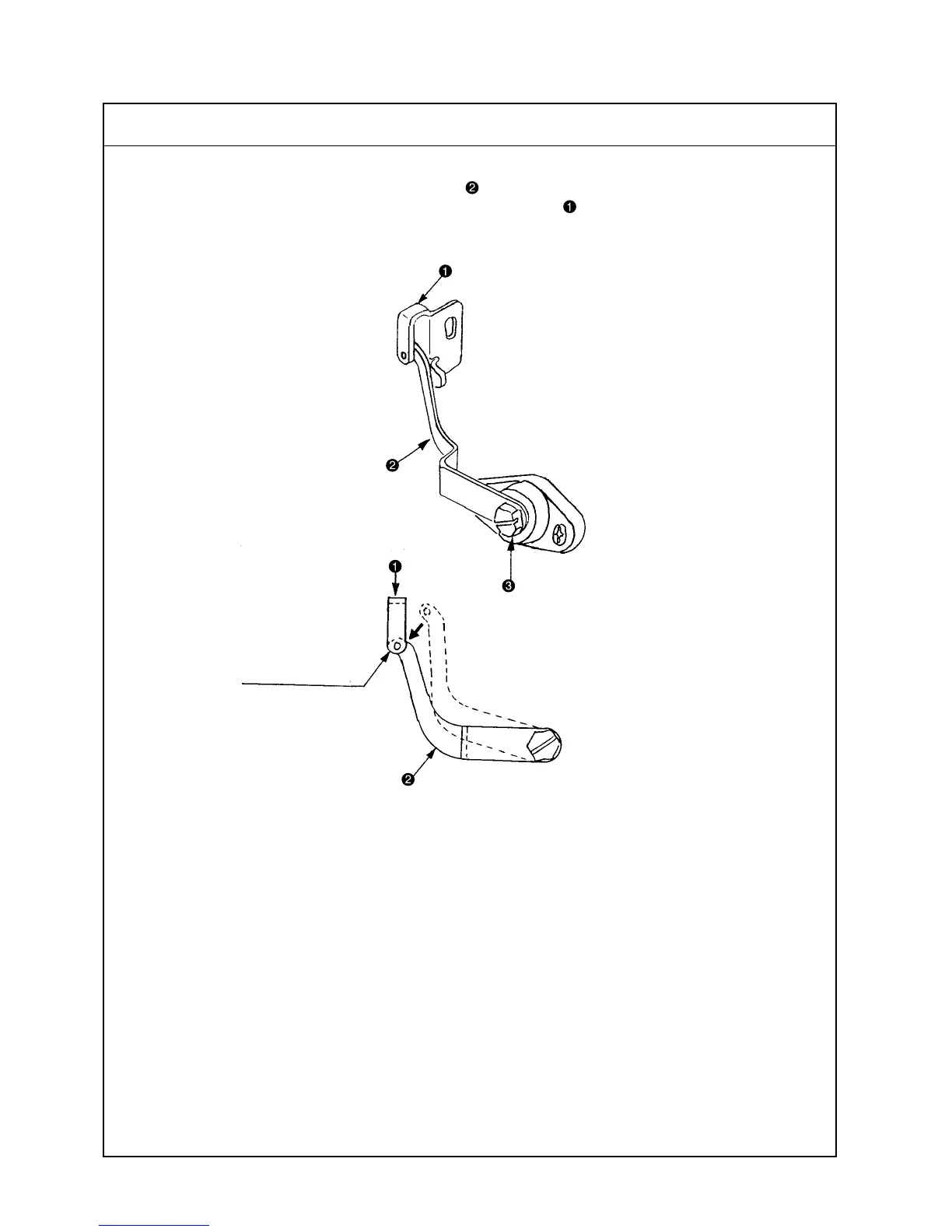

When lopper thread auxiliary thread take-up lever is in its lower dead point, the thred hole should align
with the hole in lopper thread auxiliary thread take-up lever guide .
The holes should align
with each other at the
lower dead point.
Standard Adjustment
