JUKI MO-6700D Series - Center-To-Center Distance of the Upper Looper Holder; Caution in Assembly; Application of Sealant

– 41 –

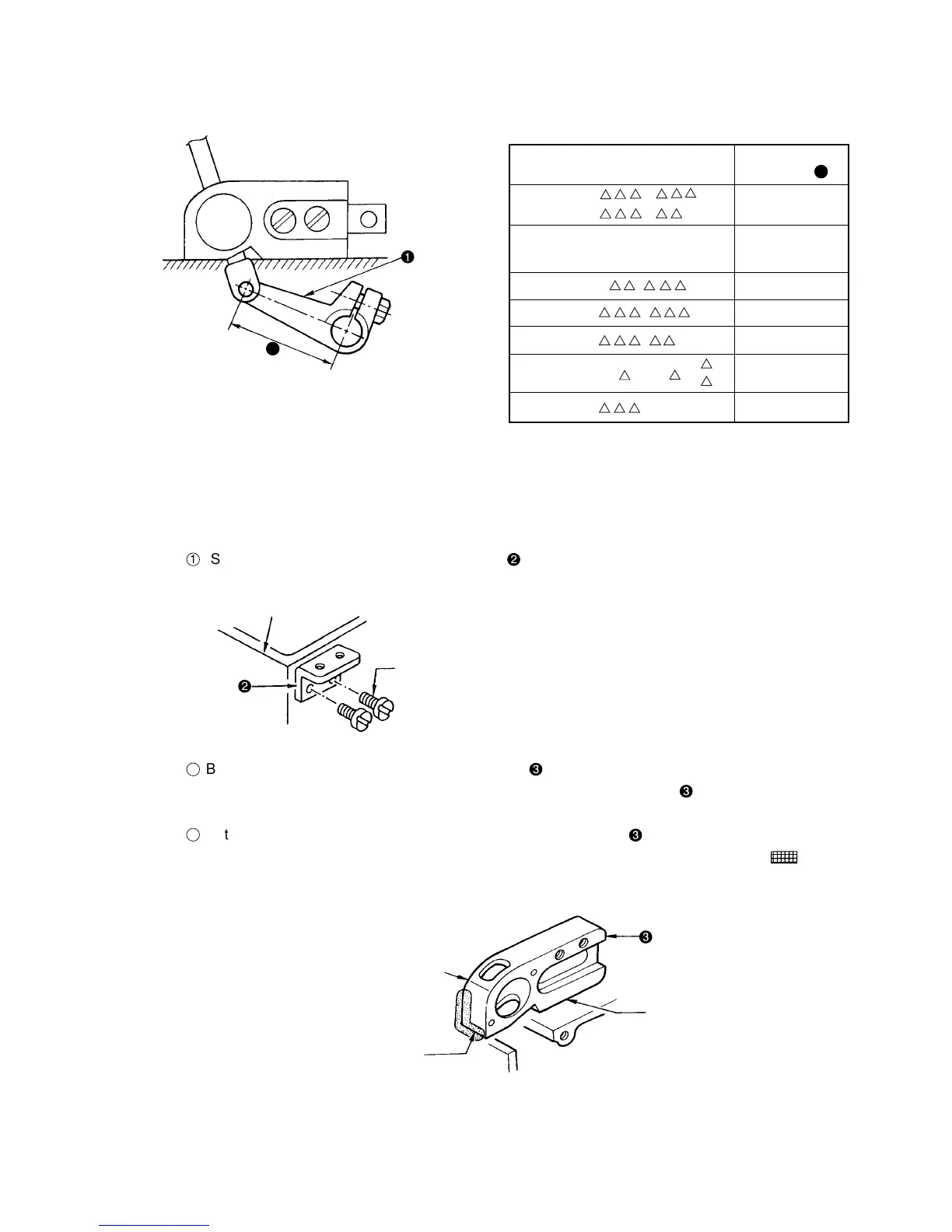

(3) Center-to-center distance of the upper looper holder
The center-to-center distance of upper looper holder 1.
Be careful not to allow the
sealant to run to the rear.
Apply the sealant to the
bottom surface.
Apply the sealant to the
bottom surface.
H
(4) Caution in assembly
1) Application of sealant
1 Setscrew of the throat plate base (B) retainer (JUKI seal)
Apply the sealant only to the right setscrew.
2 Bottom surface of the upper looper guide support (Three-bond 1104)
Apply the sealant to the bottom surface of the upper looper guide support , which contacts with the
frame surface.
3 After assembling the front edge of the upper looper guide support (JUKI seal), apply the sealant to
the gap of the contact surface between the frame and the upper looper guide support ( section
in the illustration).
Frame
Apply only to the right setscrew
Model
MO-6704D - -
MO-6705D - - 0
MO-6704D - 0E4 40H
0F6 50H
MO-6712D -D -
MO-6714D - -
MO-6716D - - 0
MO-6716D -DE to FF -
MO-6743D - - 40H
(Unit : mm)
38
39
39
39
38
39
39
4 H
5 H
-
Center-to-center
distance
H
