– 9 –
J
F
G
H
I

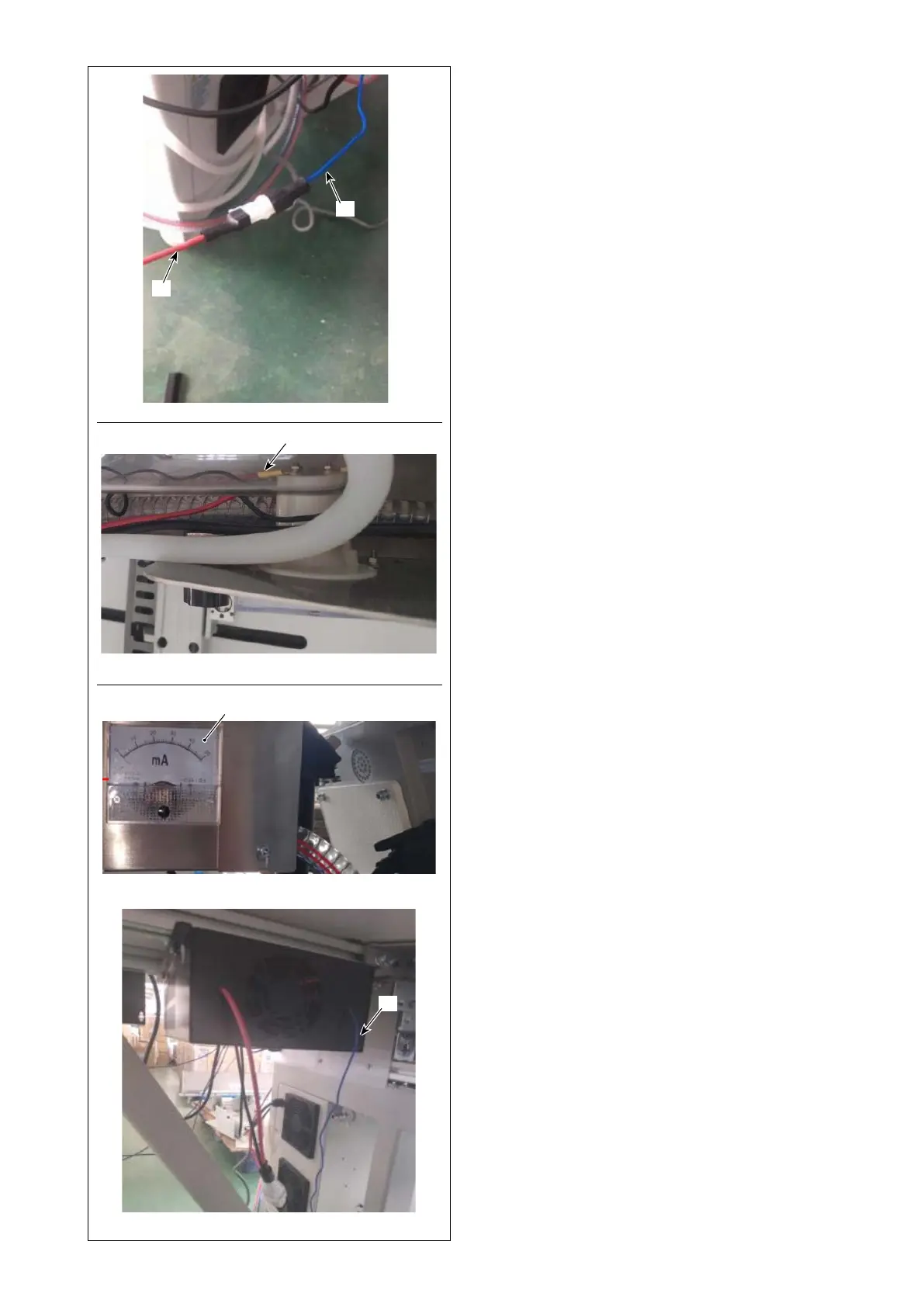

4) Connect the current indication meter connec-
tor to the laser power supply cord connector.
Insert laser power supply connection connec-
tor 2 G into the current indication meter (See
the figure on the left).
F: Current indication meter connector (2P
male terminal)
G : Laser power supply connection connector
2 (2P female terminal)
H : Current indication meter connecting wire
I : Current indication meter
J : Laser power supply connecting wire 2
5) Put 2.5-L pure water or distilled water in the
cooling system. Use of tap water or mineral
water is prohibited. (Refer to "5-4-2. How to
feed water to the cooling system, and water
changing cycle" p.12 for how to put water
in the cooling system.)
To Next Page
