ENGLISH

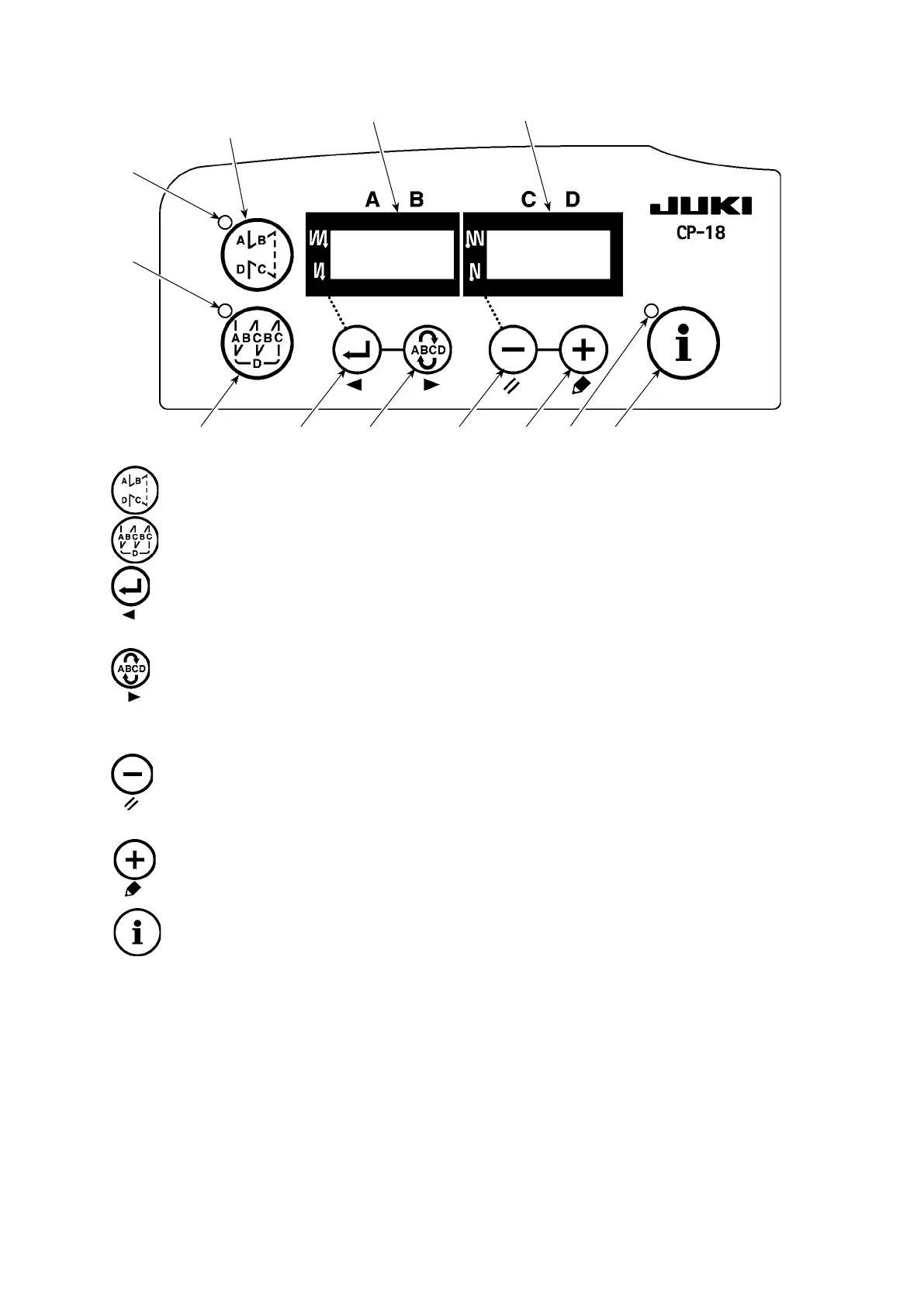

2. Operation panel (CP-18)
1
switch : Used for changing over effective/ineffective of the reverse feed stitching pattern.
2
switch : Used for changing over effective/ineffective of the overlapped stitching pattern.
3
switch : Used for conrming the contents of setting and for changing over effective/ineffective of
the reverse feed stitching at sewing start.
4
switch : Used for selecting the process (A, B, C, D) the number of stitches for which is to be
changed.
* The selected process ashes on and off.
5
switch : Used for changing the content of the selected display (ashing section) and for changing
over effective/ineffective of the reverse stitch at sewing end.
6
switch : Used for changing the content of the selected display (ashing section).
7
switch : Used to call the production support function or one-touch setting (by keeping the switch
held pressed for one second).
Indicators
A
and
B
: Various pieces of information are displayed.
LED
C
: Lights up when the reverse feed stitching pattern is effective.
LED
D
: Lights up when the overlapped stitching pattern is effective.
LED
E
: Lights up when the production support function is displayed.
Flashes on and off when invoking the one-touch setting.
3
1
A
B
4 5 62
C
D
7
E
