Julabo HE-4 - CONTROL - Control INTERNAL; EXTERNAL

Menu functions
44
9.5.1. CONTROL – Control INTERNAL / EXTERNAL
Pt100
L Switchover can only be effected if a Pt100 external sensor is
connected.
Factory setting: INT
IMPORTANT: Additional measures for external temperature control
L Suggested settings for external temperature control:
BAND HIGH / LOW and INTERN MAX / MIN
see chapter >MENU LIMITS<
L Sensor calibration of the Pt100 external sensor is carried out in the
menu >ADJUST<, submenu >ATC SENOR - EXT<; set ATC
STATUS< to >OFF<
(See page 49).
Attention:
Place the external sensor into the temperature-controlled medium and securely fix the
sensor.

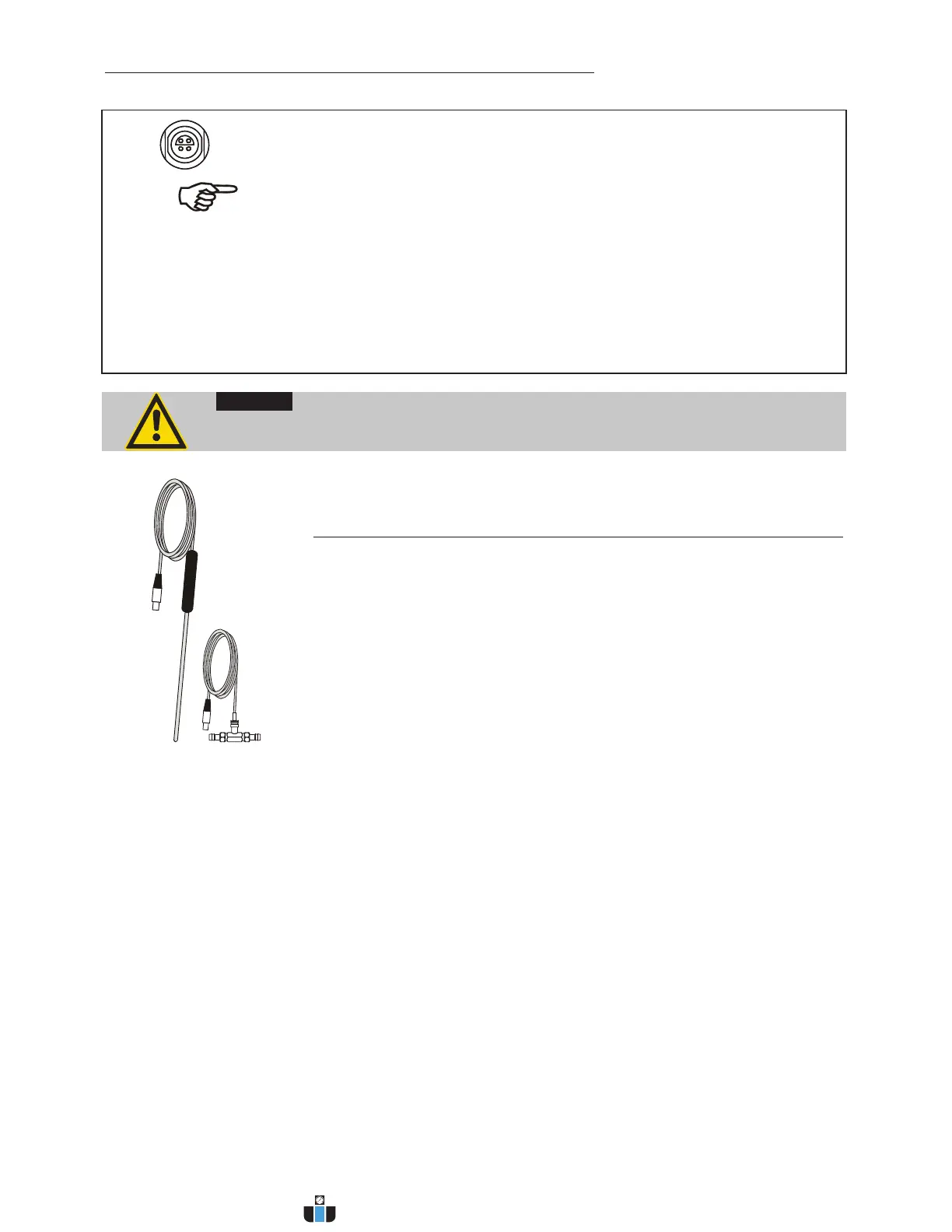

Pt100 M+R
Accessory: Pt100 external sensor
Order No. Description Material Cable
8981003 200x6 mm Ø, stainless steel 1.5 m
8981005 200x6 mm Ø, glass 1.5 m
8981006 20x2 mm Ø, stainless steel 1.5 m
8981010 300x6 mm Ø, stainless steel 1.5 m
8981015 300x6 mm Ø, stainless steel / PTFE coated 3 m
8981013 600x6 mm Ø, stainless steel / PTFE coated 3 m
8981016 900x6 mm Ø, stainless steel / PTFE coated 3 m
8981014 1200x6 mm Ø, stainless steel / PTFE coated 3 m
8981103 Extension cable for Pt100 sensor 3.5 m
8981020 M+R in-line Pt100 sensor
The M+R in-line Pt100 sensor is a flow sensor and can be installed loop
circuit
