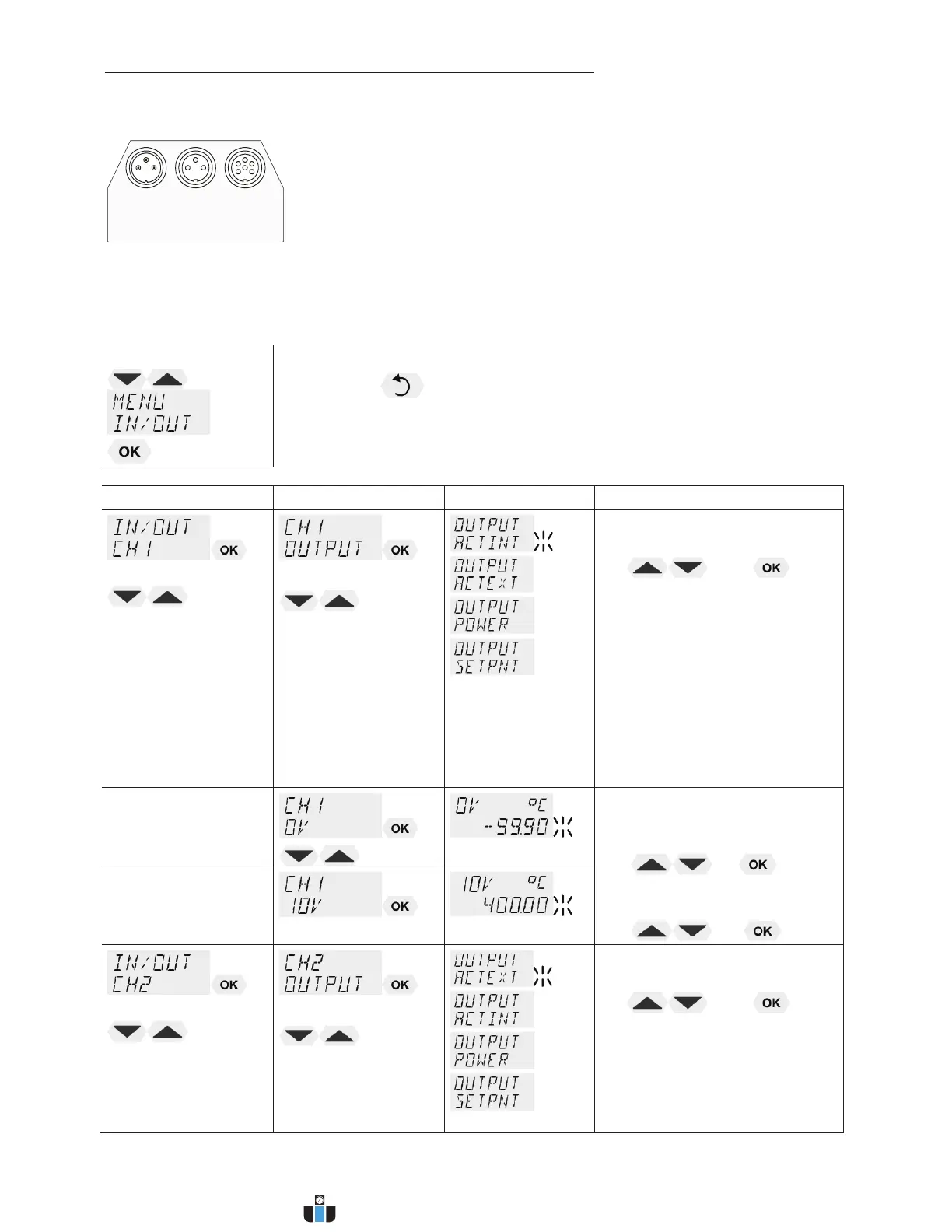

9.9. MENU IN/OUT – Analog inputs/outputs (Option)
A
LARM
REG+
E-PROG
STAND-BY
L In order to use the analog inputs and outputs, the circulator must be
equipped with the electronic module available as option.
Order No. 8 900 100 Electronic module
This submenu enables setting of the input and output values for the
programmer input and the temperature recorder outputs of socket REG+E-
PROG.
The >STAND-BY< input and the >ALARM< output are configurable.
Menu level 1
Ð
L Press the key if parameter is to be retained. Correction function for
parameters or values (prior to OK).
Level 2 Level 3 Parameter level
Î Î
x The parameter flashes,
switch by pressing
and
ACTINT [°C]
internal actual temperature value
(bath temperature)
ACTEXT [°C]
external actual temperature
value (external sensor)
S-POINT [°C]
active setpoint temperature
POWER [%]
Î
x Integer digits flash, set by
pressing
+
x Decimal digits flash, set by
pressing
+
Î
Î Î
x The parameter flashes,
switch by pressing
and
