ASSEMBLYASSEMBLY

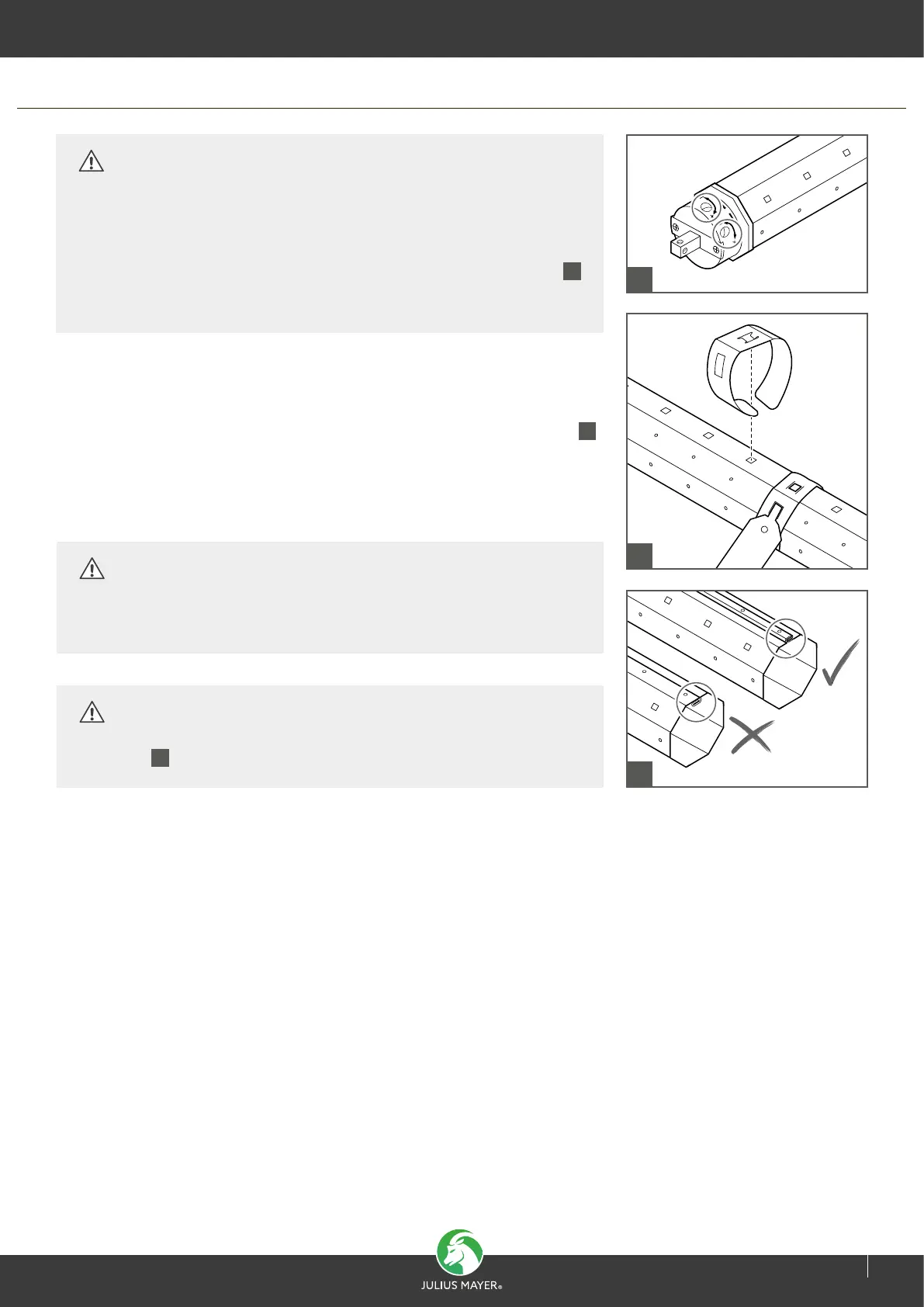

10. Use steel band hangers to secure the roller shutter to the shaft,
also called securing springs. When installing 35 mm motors in 40 mm shutter shafts
or 45 mm motors in 50 mm shutter shafts, it is recommended to use hook-in clips
6
for the securing springs. The clips ensure that the roller shutter motors are not dama-
ged by the dovetails of the securing springs.
ATTENTION!
When installing in 40 mm steel shafts, make sure that the rebate of the shaft is on
the outside
7
to avoid damage to the motor!
ATTENTION!
If you screw screws into the roller shutter shaft to suspend the roller shutter,
please ensure that they are short enough and do not touch the motor under any
circumstances!
ATTENTION!
Do not drill into the motor and do not screw into the motor!
When installed, the rolled-up roller shutter must run vertically into the guide rail.
Make sure that the bearings or the shaft are installed horizontally.
A roller shutter that winds up crooked can block and destroy the motor.
Make sure that the motor is mounted in such a way that the adjustment screws
5
remain easily accessible!
5
6
7
Mounting the motor
