Julius Mayer JM35-F Series User Manual

30
ELECTRICAL CONNECTION
WARNING!
y There is a risk of fatal electric shock when working on electrical equipment! The motor may only be connected to the
mains and all work on electrical equipment may only be carried out by an authorized electrician in accordance with the
relevant connection diagrams for the device.
y Carry out all assembly and connection work in a de-energized state.

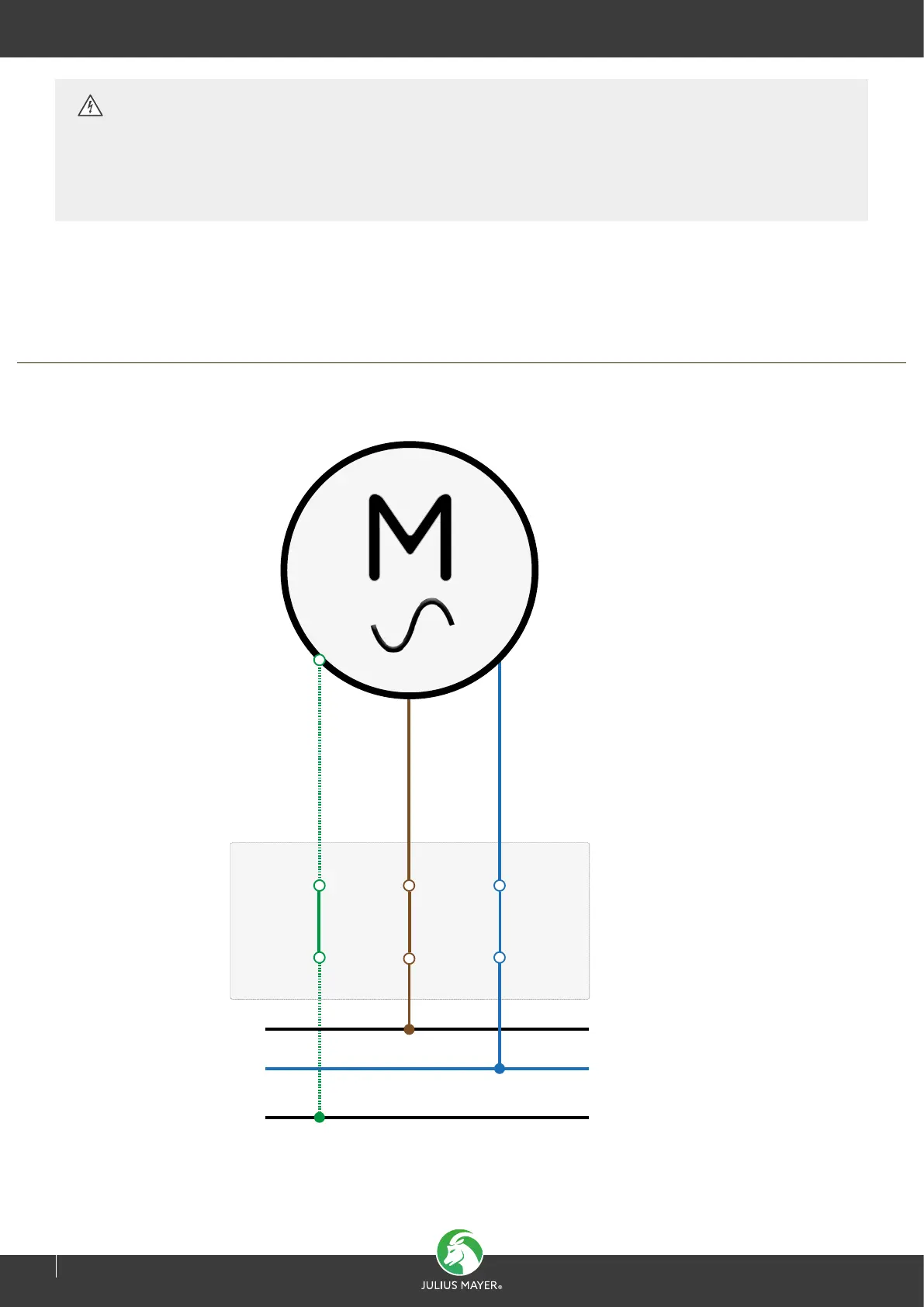

Wiring diagram - motor with mechanical limit switches
and integrated radio receiver
grün-gelb braun blau
L
N
PE
Abzweig-
dose
Motorleitung:
braun: L (Phase)
blau: N (Neutralleiter)
grün-gelb: PE (Schutzleiter)
green-yellow brown blue
Motor lead:
brown: L (phase)
Junction
box
blue: N (neutral conductor)
green-yellow: PE (protective earth)
