JUMO diraTRON Series Brief Instructions

15
2 Mounting

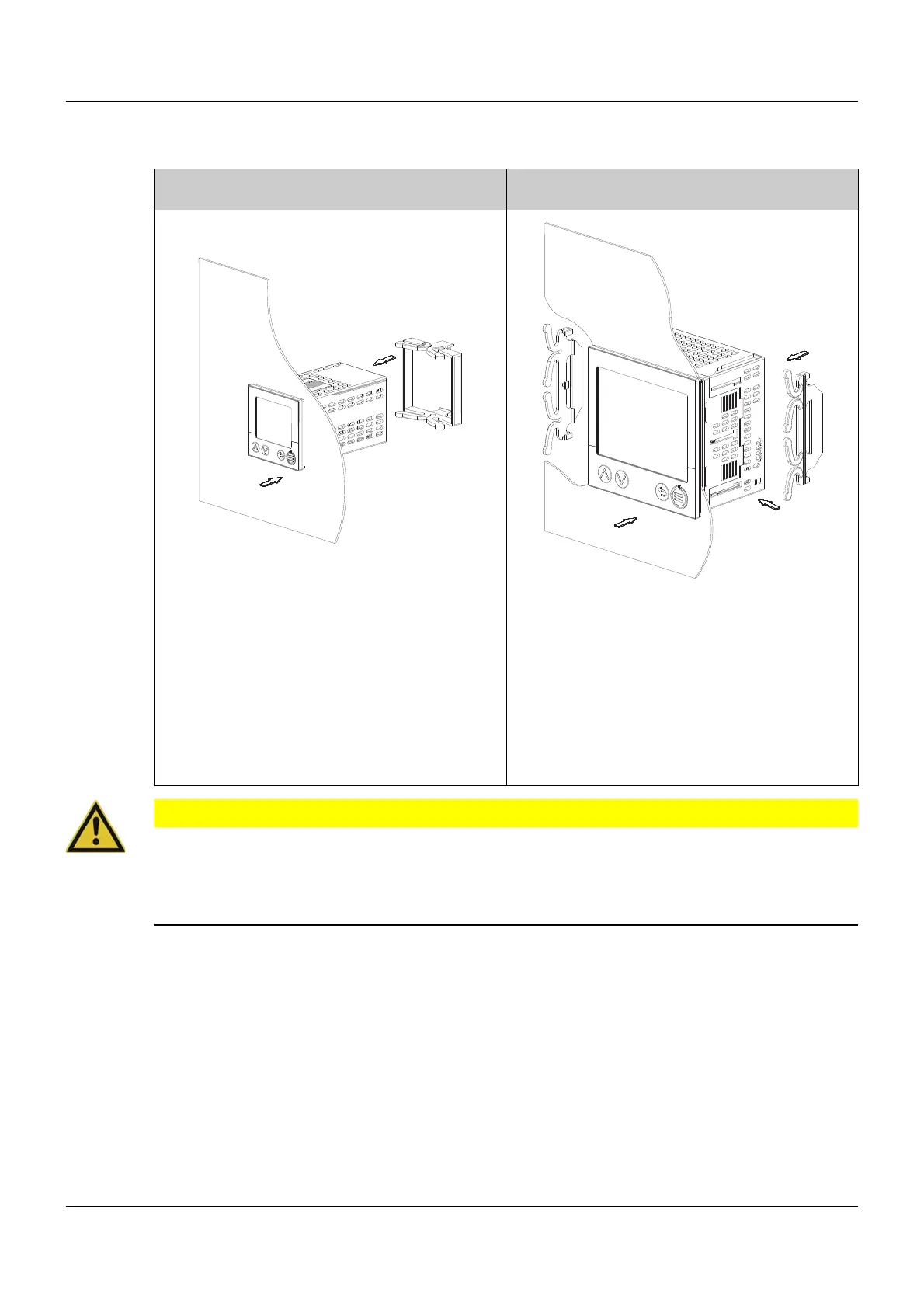

2.5 Panel mounting
CAUTION!
The front of the device and housing have different protection types.
The protection type IP65 (front-side) is only guaranteed if the seal is flush and even.
 Use the mounting frame or both mounting elements as shown in the figure and ensure an even at-
tachment!
Types 702110 (format 132), 702111 (format 116) Types 702112 (format 108H), 702113 (format
108Q), 702114 (format 104)
1. Insert the device from the front into the pan-
el cut-out and ensure that the seal is correct-
ly positioned.
1. Insert the device from the front into the pan-
el cut-out and ensure that the seal is correct-
ly positioned.
2. Push the mounting frame from the panel
rear onto the device body and press the
springs against the panel rear until the de-
tent lugs engage in their slots and the frame
is sufficiently fastened.
2. From behind the panel, use the guide lugs to
insert both mounting elements on either side
into the three recesses of the device case.
3. Press both mounting elements evenly with
the springs against the panel rear until the
detent lugs engage in their slots and the
frame is sufficiently fastened.
1.
2.
1.
3.
2.
