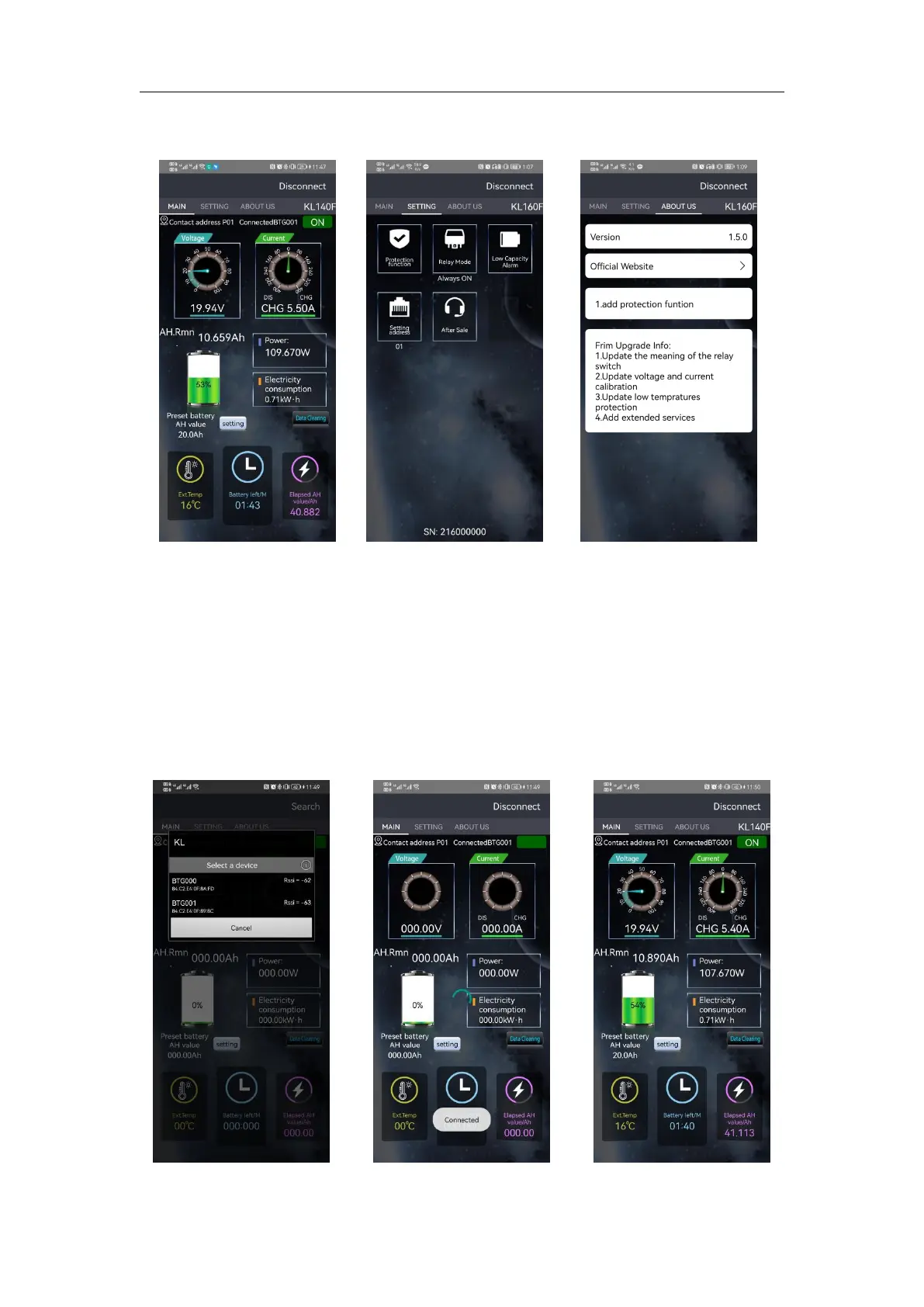

4) App interface display
Figure 3-1-4 Main
interface
Figure 3-1-5 System
Settings
Figure 3-1-6 About us
5) App operating instructions
A. Online
Open the APP on the homepage and click the search in the upper right
corner to search for the corresponding Bluetooth. After clicking the
corresponding Bluetooth, "Connected" will pop up, and the search in the upper
right becomes disconnected, and the machine model appears, indicating that
the connection is complete. As shown in Figure 3-1-7, Figure 3-1-8, and Figure
3-1-9.
Figure 3-1-7 Online 01
Figure 3-1-8 Online 02
Figure 3-1-9 Online 03
