4) App interface

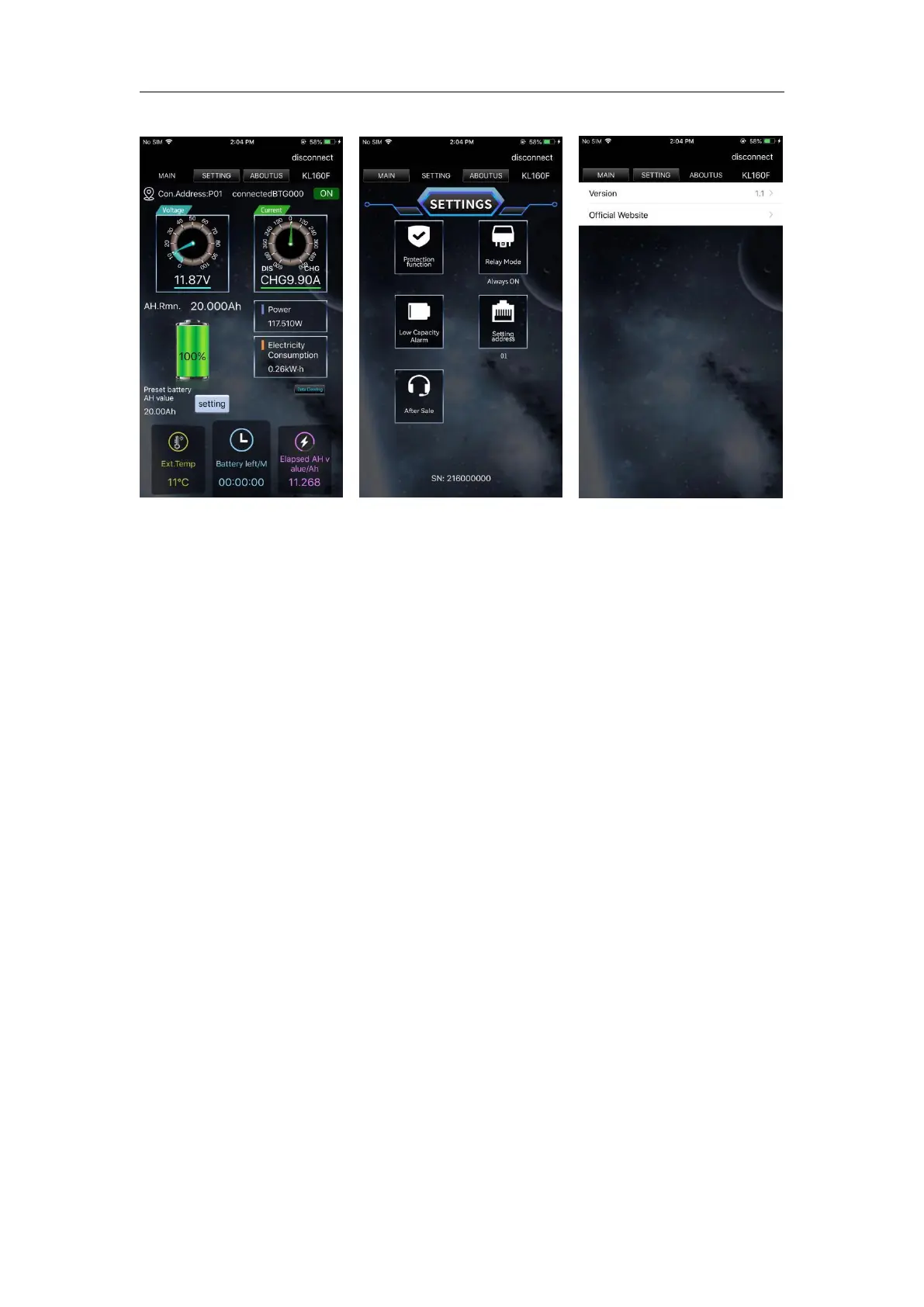

Figure 3-1-42 Main
interface
Figure 3-1-43 System
Settings
5) App operating instructions
The operation of IOS is the same as that of Android.
2. Wiring methods
Wiring instructions video：http://68.168.132.244/KL-F_jxfs_EN.mp4
(1) Self-powered wiring method
If the voltage range of the battery under test is between 10-120V during
normal operation, self-powered wiring can be used. First, turn the power
selection interface switch to "2W". When wiring, connect the positive terminal
of the battery to the power interface "VSNS". This line does not need to be
particularly thick. 13-16AWG wire is fine. Pay attention to the positive and
negative poles of the battery, do not connect the wrong or reverse connection.
The negative pole of the battery is connected to the screw with “BATT-”
printed on the sampler, and the negative pole of the charger and the negative
pole of the load are connected to another screw of the sampler. It is better to
use a copper nose to connect it firmly. When charging, the current direction
symbol of the APP color is red, and the remaining capacity value increases.
When discharging, the color of the current direction symbol is sky blue, and the
remaining capacity value decreases.
