03.11 EN
82
6.6 Checking electrical fuses
Checking fuses
Requirements
Truck prepared for maintenance and repairs, (see "Preparing the truck for
maintenance and repairs" on page 78).
Front panel removed, (see "Removing the front panel" on page 79).
Procedure
Check the fuse ratings against the table and replace if necessary.
The fuses are now checked.

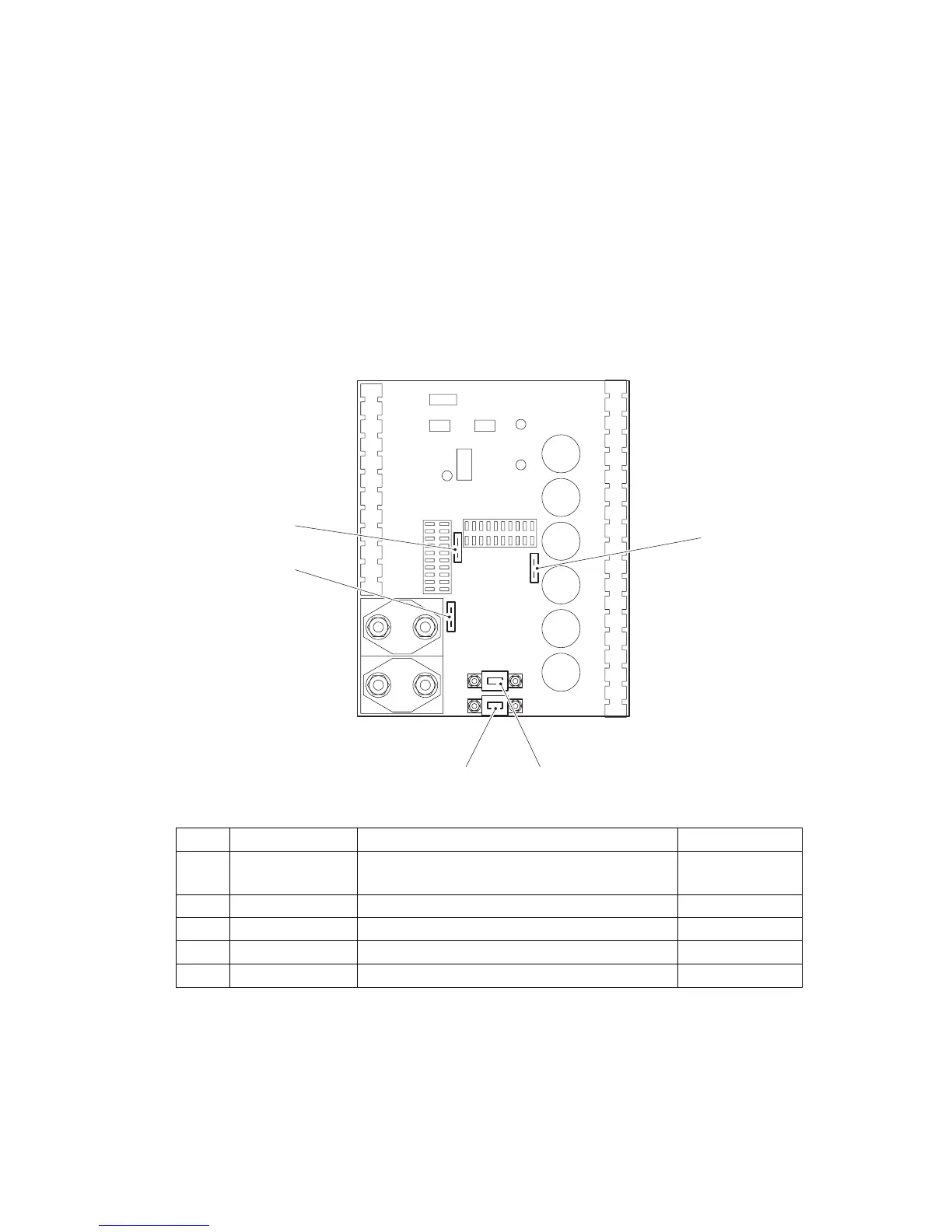

Item Name To protect EJC B14 / B16
76 6F1 Battery charge / discharge indicator
control fuse
10 A
77 F1 Overall control fuse 10 A
78 1F10 Drive motor (parallel to 1F1) 40 A
79 2F1 Pump motor 150 A
80 1F1 Drive motor (parallel to 1F10) 150 A
79
76
78
77
80
03.11 EN
82
6.6 Checking electrical fuses
Checking fuses
Requirements
Truck prepared for maintenance and repairs, (see "Preparing the truck for
maintenance and repairs" on page 78).
Front panel removed, (see "Removing the front panel" on page 79).
Procedure
Check the fuse ratings against the table and replace if necessary.
The fuses are now checked.
Item Name To protect EJC B14 / B16
76 6F1 Battery charge / discharge indicator
control fuse
10 A
77 F1 Overall control fuse 10 A
78 1F10 Drive motor (parallel to 1F1) 40 A
79 2F1 Pump motor 150 A
80 1F1 Drive motor (parallel to 1F10) 150 A
79
76
78
77
80
