Open bottom pallets or pallets with transverse boards can be lifted inside or outside
the area of the load wheels or roll cage.
Loads can be stacked and unstacked and transported over long distances.
The driver's cab is raised together with the load lifting device to provide excellent vis-
ibility and easy access to the rack levels to be operated.
The racks must be suitable for the EKS 314. The following safety distances specified
by the manufacturer must be observed:
QwW In order to prevent accidents, whenever a truck is used in rack system aisles
(rail guided) a safety distance of at least 3.54 inch / 90 mm between either
side of the truck and the racks must be maintained.
In case of inductively / wire guided trucks a safety distance of at least
4.92 inch/ 125 mm is recommended.
The ground surface must comply with the floor specifications mentioned above.
Guide rails must be provided in the narrow aisles for the rail guidance system.
Vulkollan guide rollers attached to the truck chassis guide the truck between the
guide rails.
A guidance wire must be routed in the ground for the inductive / wire guidance (WG)
system. The signals from the wire are received on the chassis and processed in the
on-board computer.
The capacity is shown on the data plate, for example:

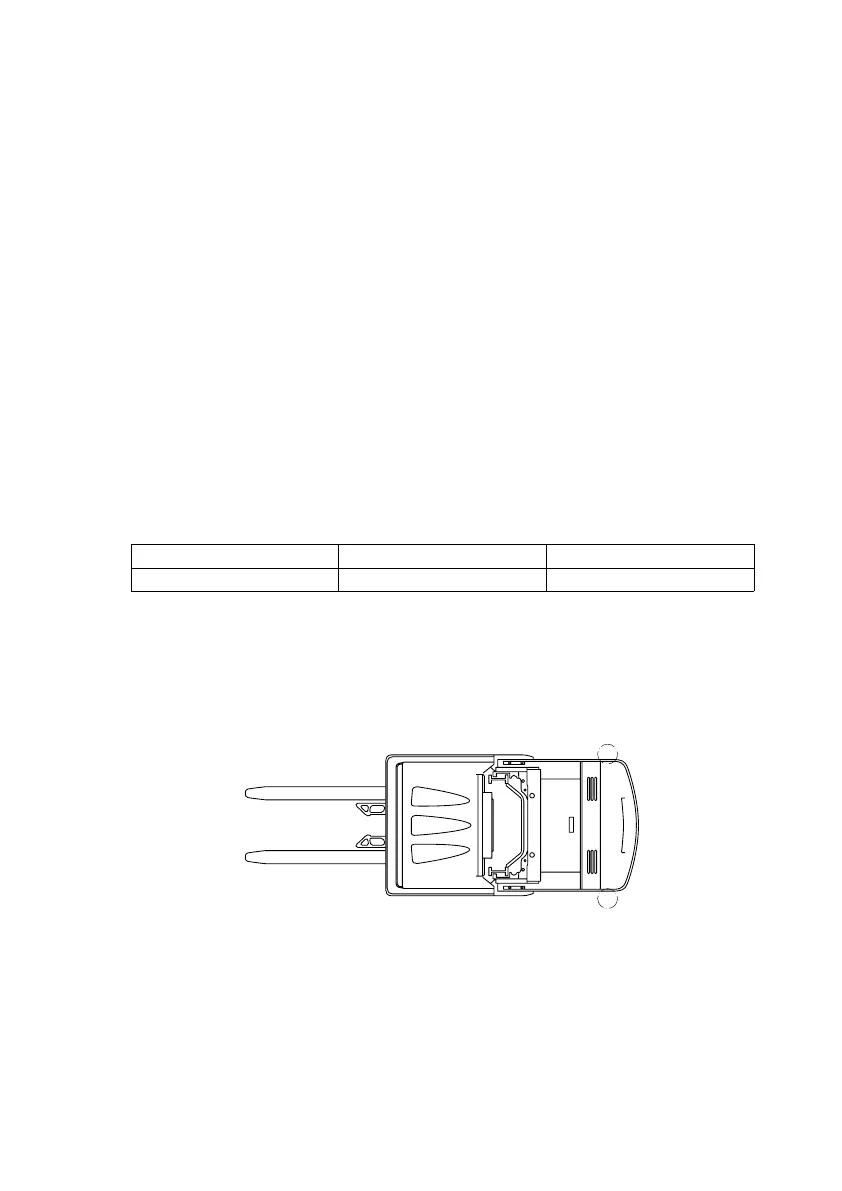

Travel direction definition:
To indicate travel directions, the following orientations will be used in this manual:
Type Capacity Load center of gravity
EKS 314 3000 lbs / 1360 kg 23.6 inch / 600 mm
Left
Right
Drive
direction
Load
direction
0108.USA
D 2
Open bottom pallets or pallets with transverse boards can be lifted inside or outside
the area of the load wheels or roll cage.
Loads can be stacked and unstacked and transported over long distances.
The driver's cab is raised together with the load lifting device to provide excellent vis-
ibility and easy access to the rack levels to be operated.
The racks must be suitable for the EKS 314. The following safety distances specified
by the manufacturer must be observed:
QwW In order to prevent accidents, whenever a truck is used in rack system aisles
(rail guided) a safety distance of at least 3.54 inch / 90 mm between either
side of the truck and the racks must be maintained.
In case of inductively / wire guided trucks a safety distance of at least
4.92 inch/ 125 mm is recommended.
The ground surface must comply with the floor specifications mentioned above.
Guide rails must be provided in the narrow aisles for the rail guidance system.
Vulkollan guide rollers attached to the truck chassis guide the truck between the
guide rails.
A guidance wire must be routed in the ground for the inductive / wire guidance (WG)
system. The signals from the wire are received on the chassis and processed in the
on-board computer.
The capacity is shown on the data plate, for example:
Travel direction definition:
To indicate travel directions, the following orientations will be used in this manual:
Type Capacity Load center of gravity
EKS 314 3000 lbs / 1360 kg 23.6 inch / 600 mm
Left
Right
Drive
direction
Load
direction
