Juniper AX411 Configuration And Deployment Guide

Copyright © 2011, Juniper Networks, Inc. 9
APPLICATION NOTE - Configuring and Deploying the AX411 Wireless Access Point
#APs conguration. By default all traic not assigned to a VLAN is send untagged.
#Both radios are used (radio 1 in the 5hz band and radio 2 in the 2.4Ghzs band)
and broadcast the same SSID
#AP-1
set wlan access-point AP-1 mac-address 00:12:cf:c5:4a:40
set wlan access-point AP-1 access-point-options country US
set wlan access-point AP-1 radio 1 virtual-access-point 0 ssid WiNet
set wlan access-point AP-1 radio 1 virtual-access-point 0 security none
set wlan access-point AP-1 radio 2 virtual-access-point 0 ssid WiNet
set wlan access-point AP-1 radio 2 virtual-access-point 0 security none
#AP-2
set wlan access-point AP-2 mac-address 00:12:cf:c5:4b:40
set wlan access-point AP-2 access-point-options country US
set wlan access-point AP-2 radio 1 virtual-access-point 0 ssid WiNet
set wlan access-point AP-2 radio 1 virtual-access-point 0 security none
set wlan access-point AP-2 radio 2 virtual-access-point 0 ssid WiNet
#AP-3
set wlan access-point AP-3 mac-address 00:12:cf:c5:4c:40
set wlan access-point AP-3 access-point-options country US
set wlan access-point AP-3 radio 1 virtual-access-point 0 ssid WiNet
set wlan access-point AP-3 radio 1 virtual-access-point 0 security none
set wlan access-point AP-3 radio 2 virtual-access-point 0 ssid WiNet
The AX411 access points use the concept of a Virtual Access Point (VAP). A VAP appears to the wireless client as a
single independent access point, advertising a single service set identifier (SSID). In our first configuration, only a single
SSID is advertised and this signifies that a single VAP on each radio is being used.
L3 Management Mode
In this mode, each access point is connected to a different L3 interface. Since each interface belongs to a different
subnet, clients will get their addresses assigned from a pool based on the access point to which they are associated.

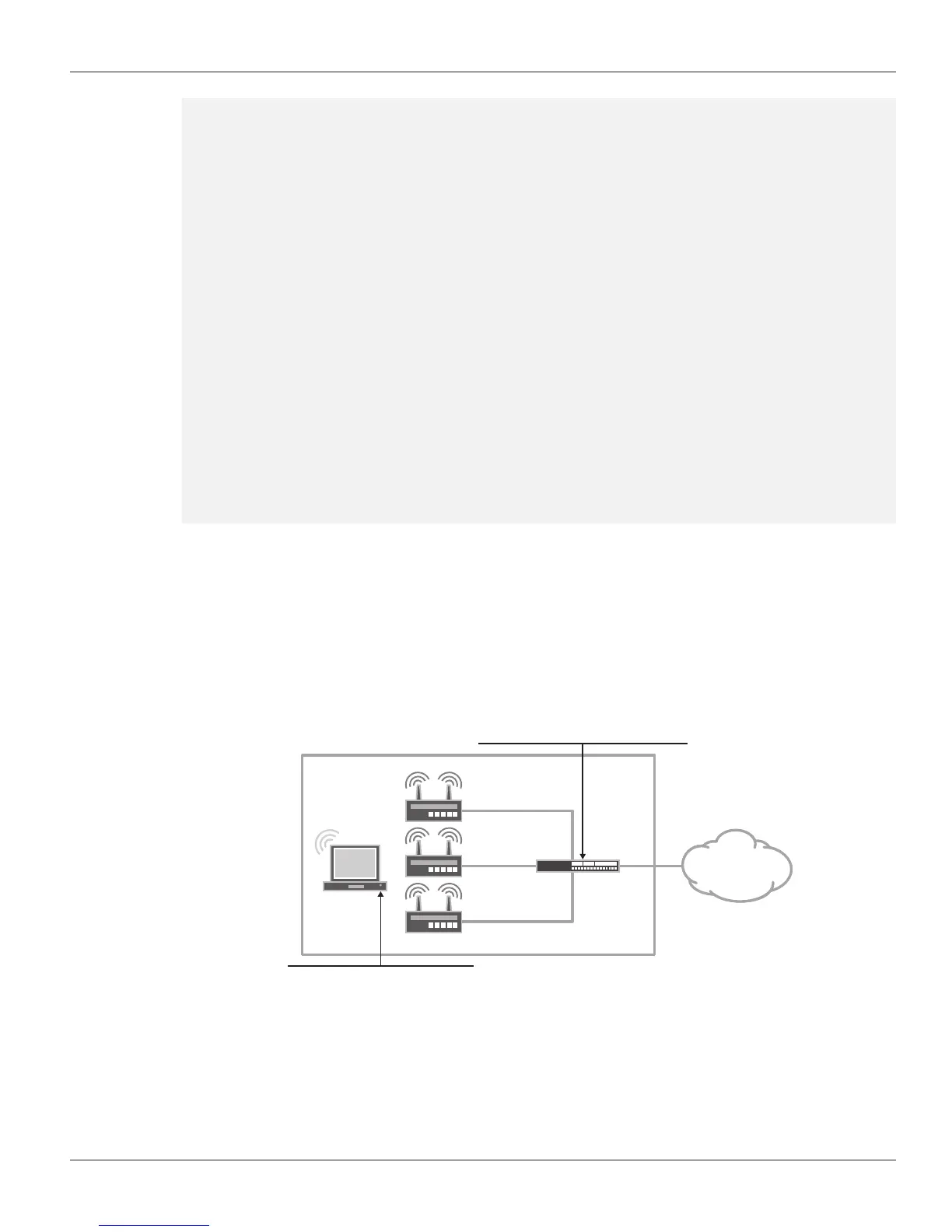

Figure 4: L3 management mode example
INTERNET
OFFICE
Client
AP-1
00:de:ad:10:75:00
AP-2
00:de:ad:10:76:00
AP-3
00:de:ad:10:77:00
ge-0/0/0.0
192.168.3.1/24
ge-0/0/0.0 (trust)
192.168.2.1/24
ge-0/0/0.0 (trust)
192.168.1.1/24
DHCP
Each interface handles out addresses from
a dierent pool
CorpNet SSID
A single broadcast SSID is advertised
SRX
Series
ge-0/0/0.0
(untrust)
198.0.0.1/24
