Juniper Day One+ Quick Start Guide

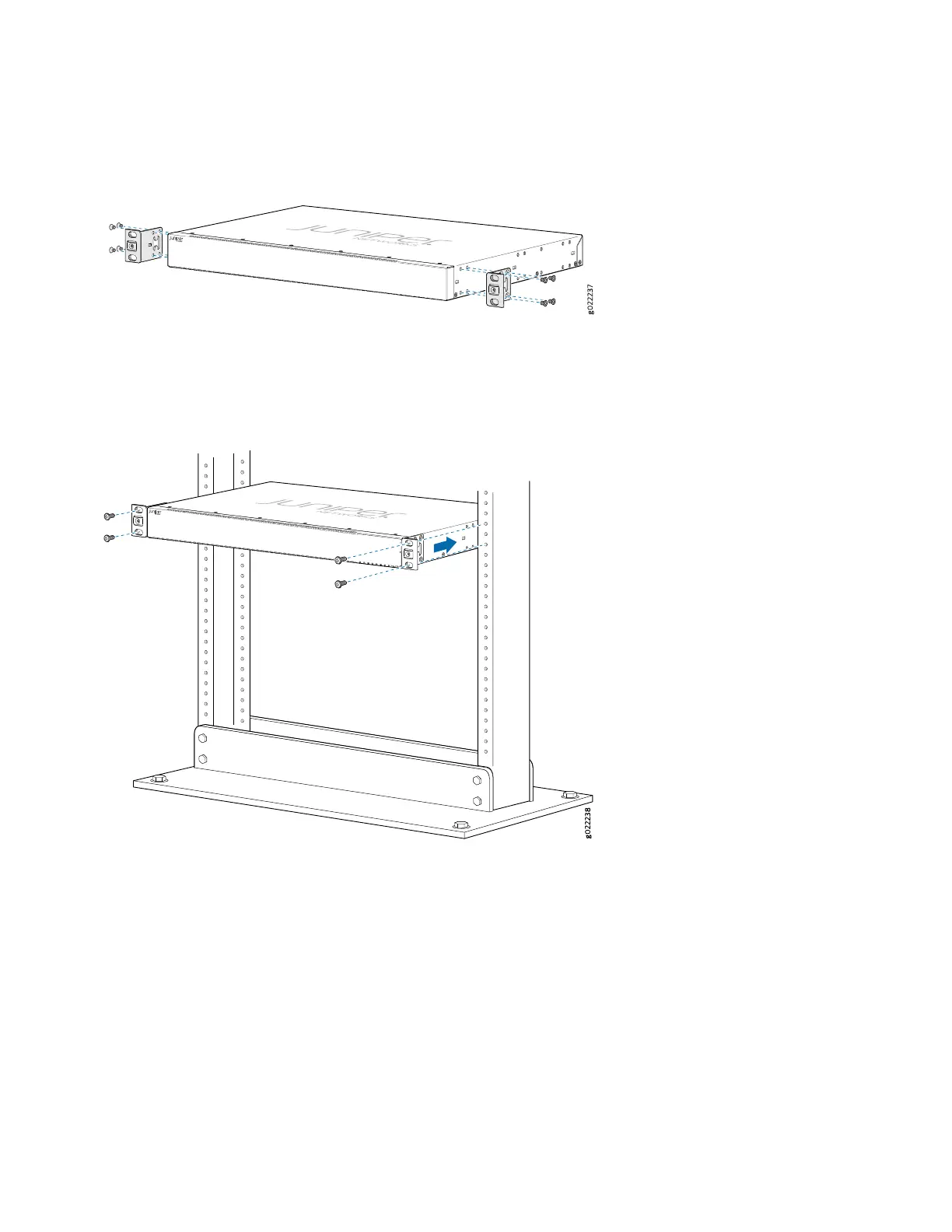

You’ll notice there are three locations on the side panel where you can attach the mounting brackets: front, center,
and rear. Attach the mounting brackets to the location that best suits where you want the EX3400 switch to sit in the
rack.
3. Lift the EX3400 switch and position it in the rack. Line up the bottom hole in each mounting bracket with a hole in
each rack rail, making sure the EX3400 switch is level.
4. While you’re holding the EX3400 switch in place, have someone insert and tighten the rack mount screws to secure
the mounting brackets to the rack rails. Make sure to tighten the screws in the two bottom holes first and then tighten
the screws in the two top holes.
5. Check that the mounting brackets on each side of the rack are level.
