WARNING: Ensure that the power cord does not block access to switch components
or drape where people can trip on it.
4. Insert the coupler end of the power cord into the AC power cord inlet on the AC
power supply faceplate.
5. Push the cord into the slot in the adjustment nut of the power cord retainer. Turn
the nut until it is tight against the base of the coupler and the slot in the nut is
turned 90° from the top of the switch (see Figure 2).
6. If the AC power source outlet has a power switch, set it to the OFF (0) position.
7. Insert the power cord plug into an AC power source outlet.
8. If the AC power source outlet has a power switch, set it to the ON (|) position.
9.
Verify that the AC OK LED on the power supply is lit and is on steadily.

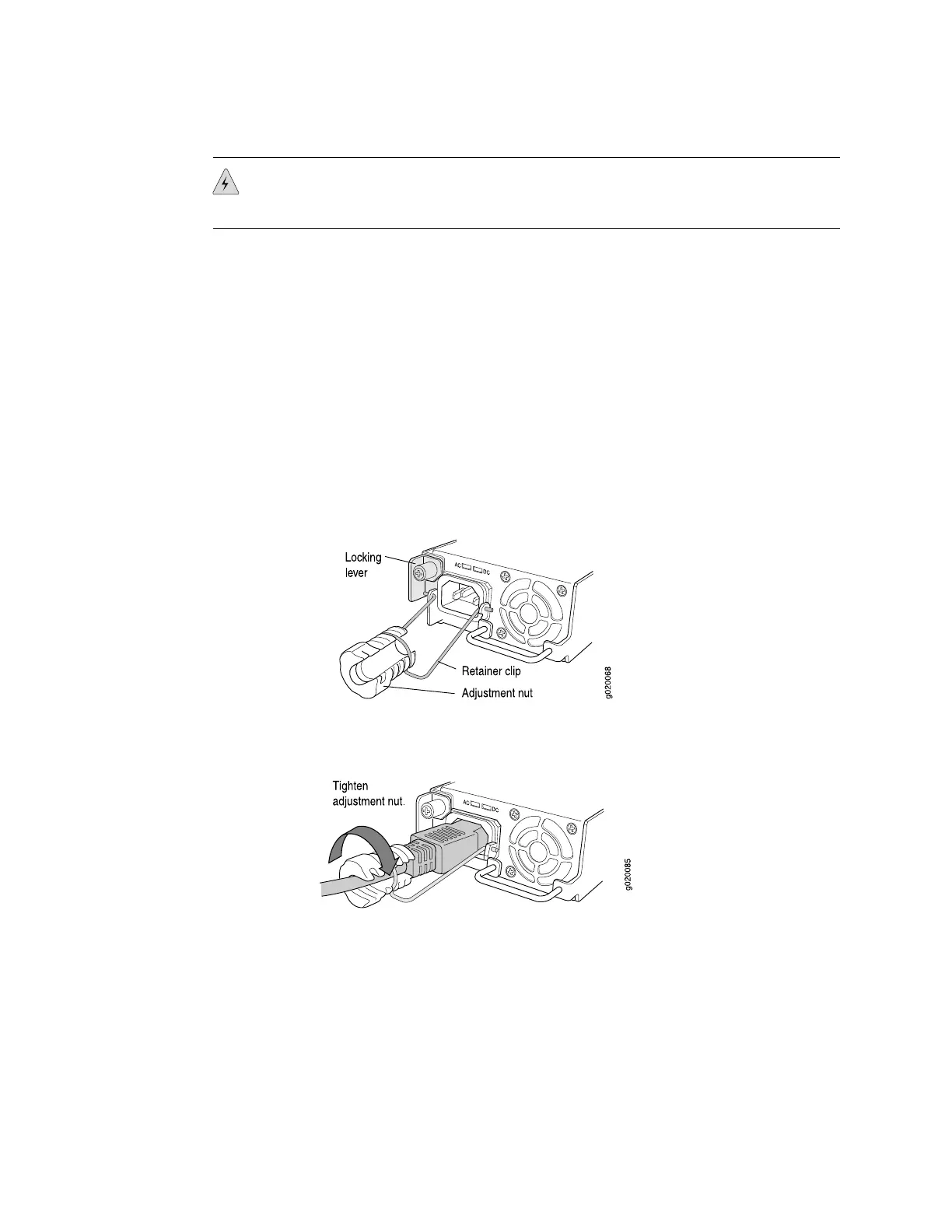

Figure 1: Connecting the AC Power Cord Retainer Clip to an AC Power Supply in an
EX3200 or EX4200 Switch
Figure 2: Connecting an AC Power Cord to an AC Power Supply in an EX3200 or
EX4200 Switch
Related Topics ■ Connecting and Configuring an EX Series Switch (CLI Procedure)
■ Connecting and Configuring an EX Series Switch (J-Web Procedure)
■ Connecting DC Power to an EX3200 or EX4200 Switch
2 ■ Connecting AC Power to an EX3200 or EX4200 Switch
