Table 7: Management Port LEDs (continued)
DescriptionStateLED
Connection is 1000 Mbps.OrangeTX/RX
Connection is 100 Mbps.Green
If LINK indicates activity, TX/RX off indicates connection
is 10 Mbps.
If LINK indicates no activity, TX/RX off indicates no activity
as well.
Off
High Availability Interface Port
The high availability interface port is a 10/100/1000 Mbps Ethernet port. In the
configuration and logs, the port is eth1. The high availability interface is a dedicated
interface used to share state information among IDP appliances in a high availability
cluster.
NOTE: IDP 5.0 does not support high availability.
Figure 3 on page 6 shows the management interface port LEDs.

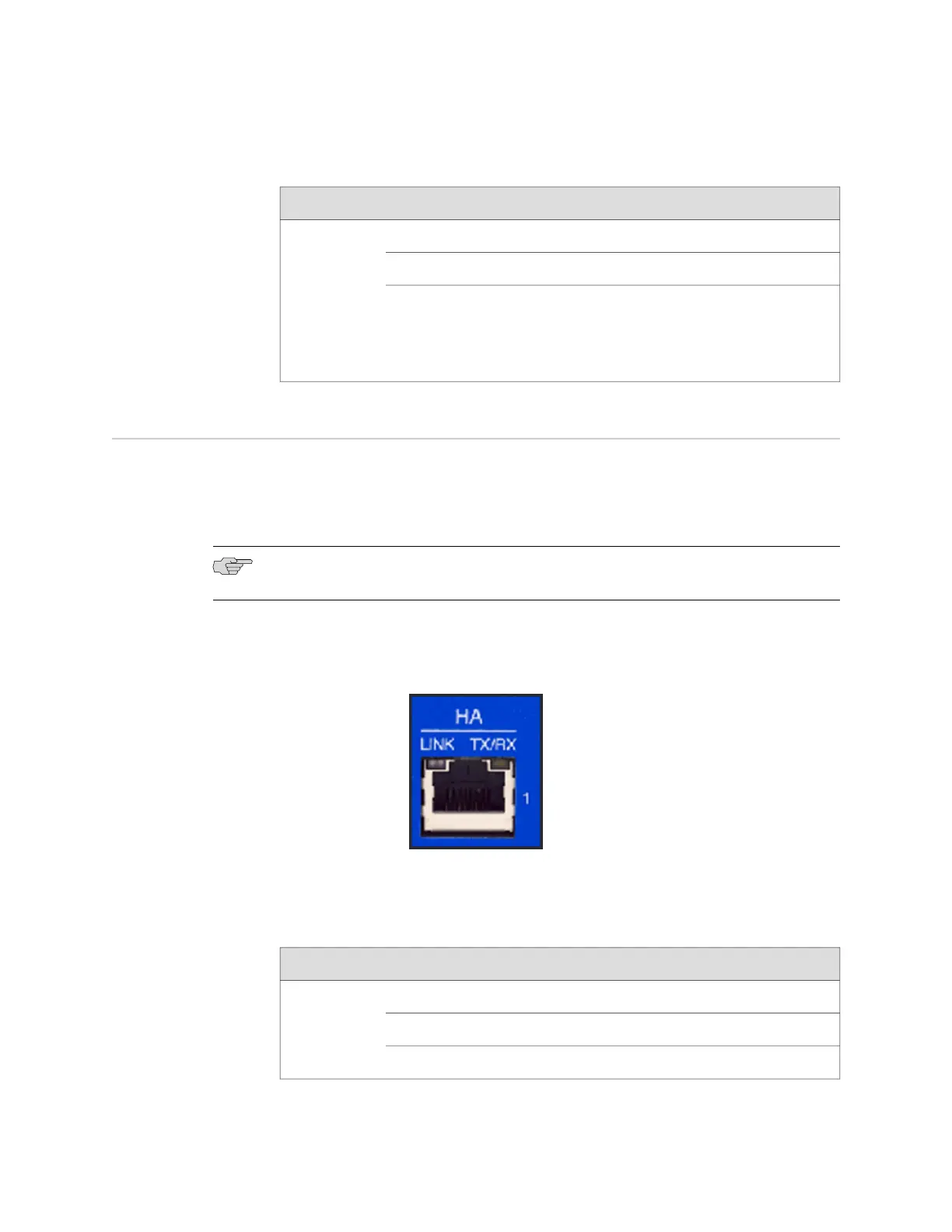

Figure 3: High Availability Interface Port LEDs
Table 8 on page 6 describes the high availability interface port LED states.
Table 8: High Availability Port LEDs
DescriptionStateLED
Link is present.Glows greenLINK
Activity.Blinks green
No link is present.Off
6 ■ High Availability Interface Port
IDP250 Installation Guide
