Juniper IDP Series - Copper Ports; Fiber Ports; Traffic Interface Features; Traffic Interface Ports

Table 8: High Availability Port LEDs (continued)
DescriptionStateLED
Connection is 1000 Mbps.OrangeTX/RX
Connection is 100 Mbps.Green
If LINK indicates activity, TX/RX off indicates connection
is 10 Mbps.
If LINK indicates no activity, TX/RX off indicates no activity
as well.
Off
Traffic Interface Ports
You use the traffic interface ports to connect the appliance to your network. The
interfaces receive and forward traffic. The type and capacity of interface ports vary
by model.
The following topics describe features of traffic interface ports:
■ Copper Ports on page 7
■ Fiber Ports on page 8
■ Traffic Interface Features on page 9
■ Peer Port Modulation on page 12
■ Layer 2 Bypass on page 13
Copper Ports
Figure 4 on page 7 shows copper port LEDs.

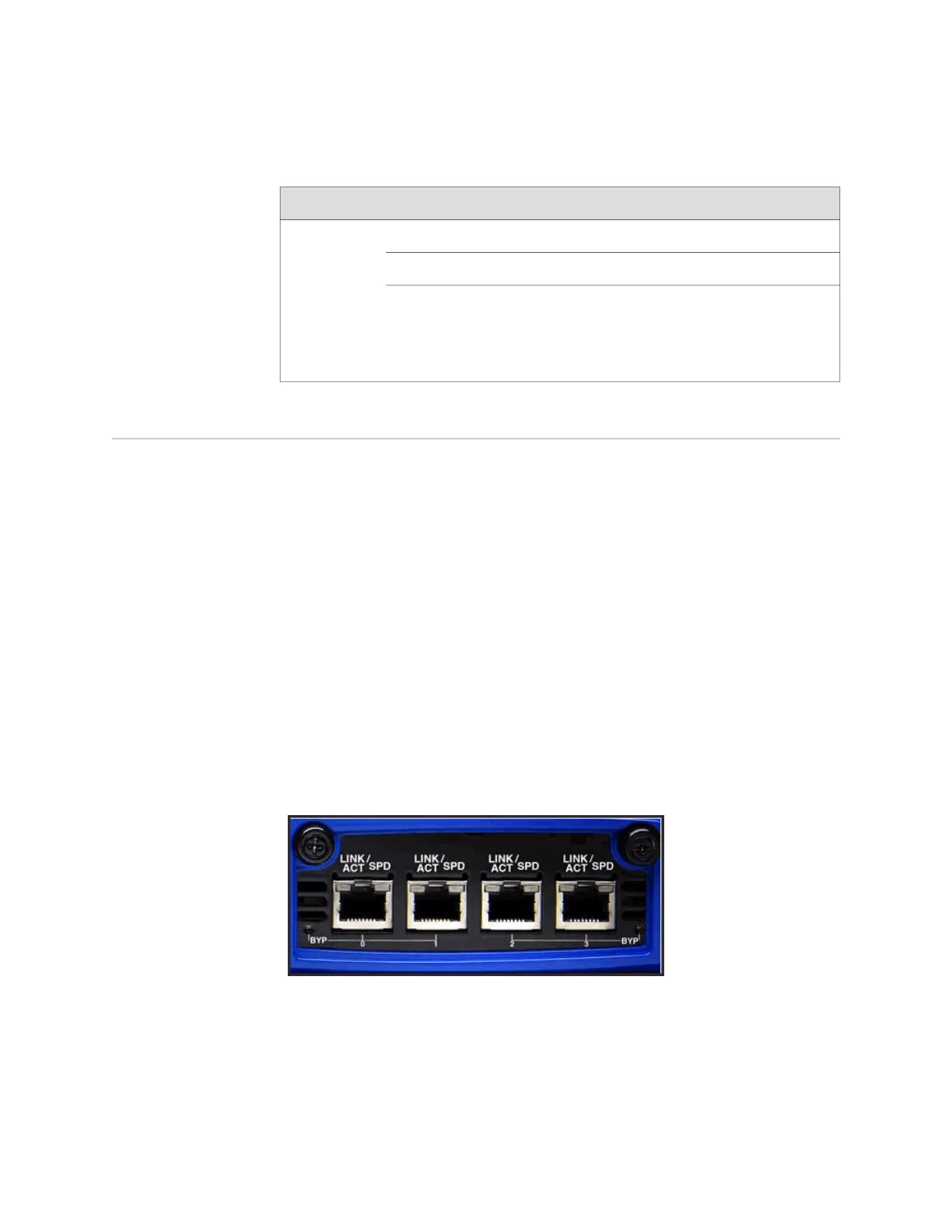

Figure 4: Copper Port LEDs
Table 9 on page 8 describes copper port LED states.
Traffic Interface Ports ■ 7
