Install a DC P ow e r
Supply

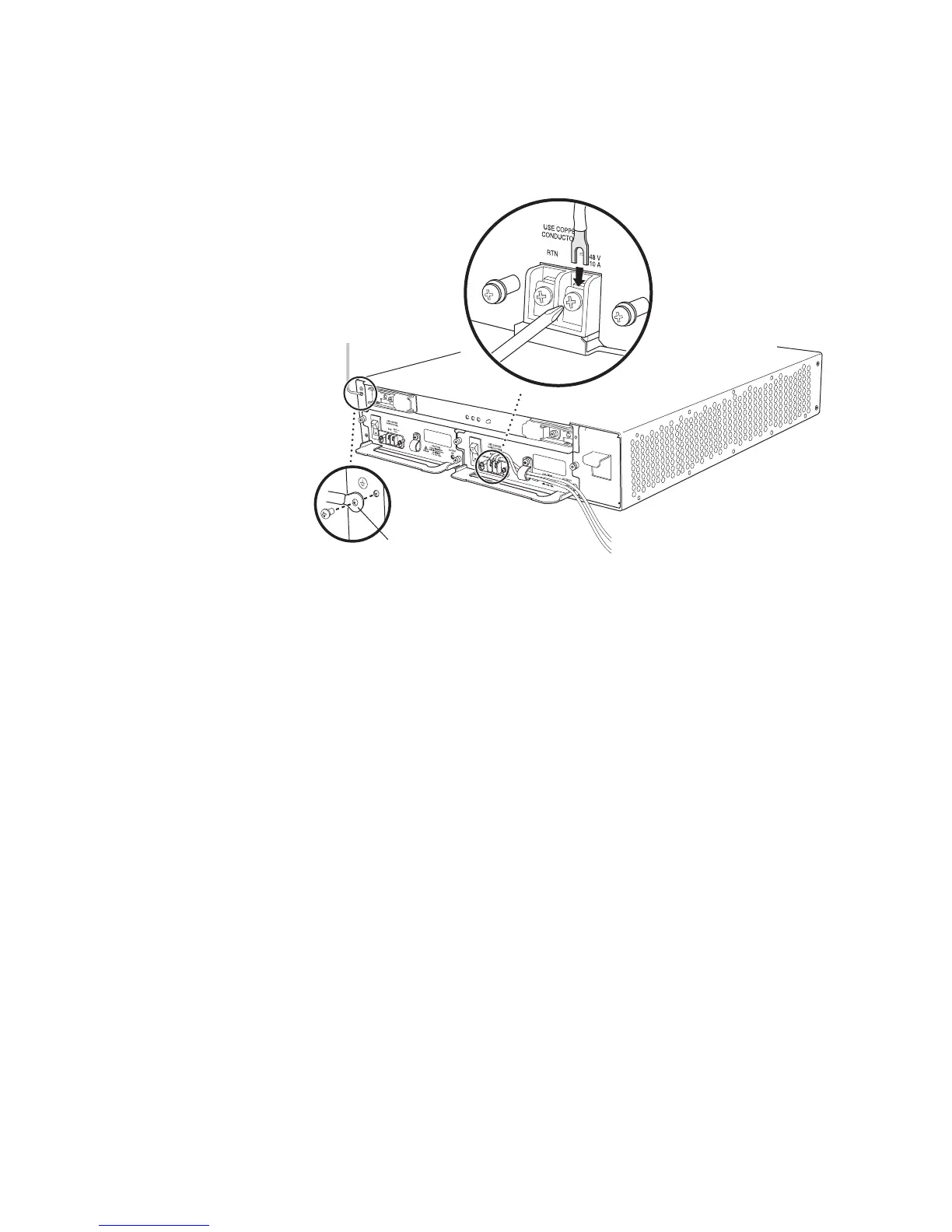

Figure 12: Connect Power Cables to a DC Power Supply on an M7i Router
g003243
To ground
Grounding lug
M7i and M10i Internet Routers Power Supply Installation Instructions 13
