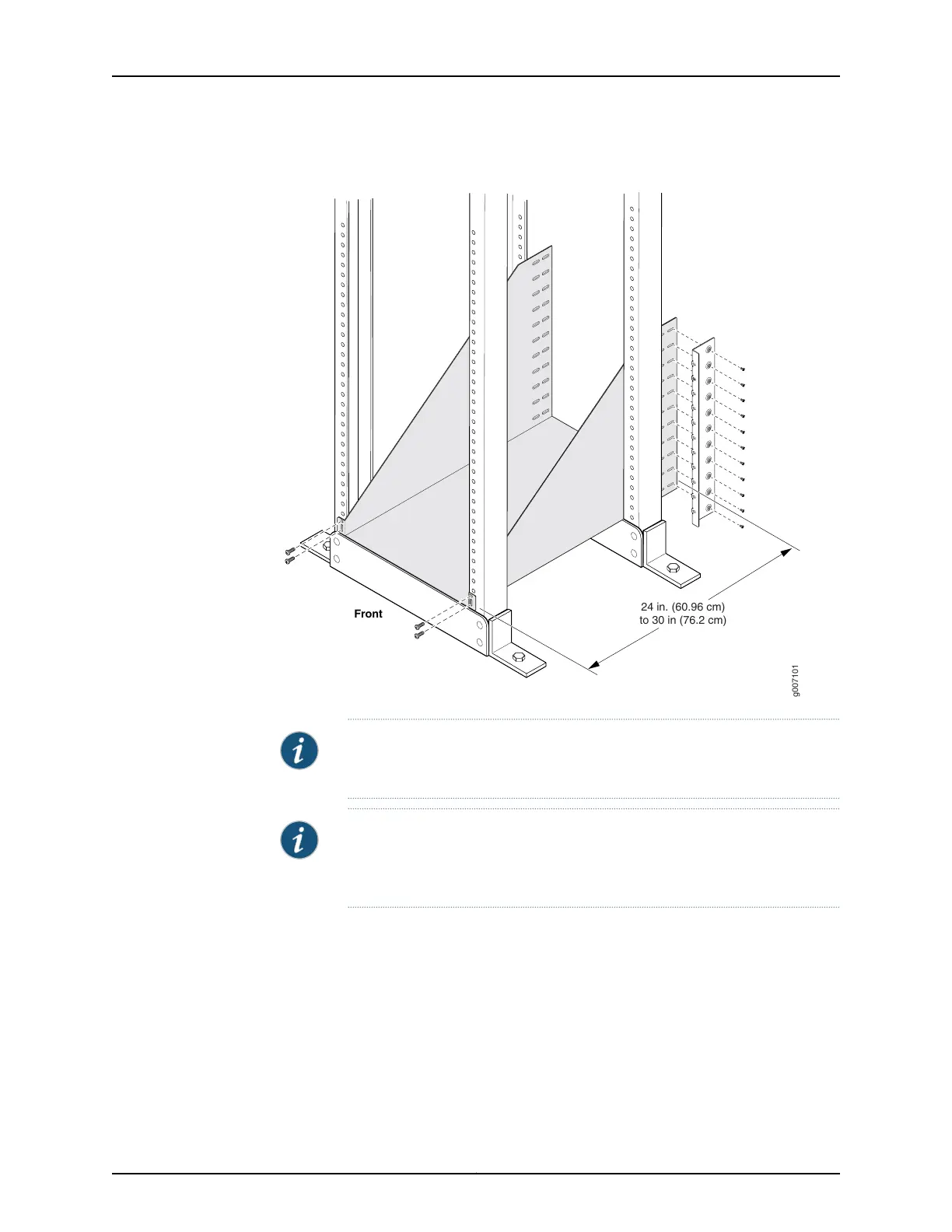

Figure 5: Mounting Hardware for a Four-Post Rack or Cabinet
g007101
24 in. (60.96 cm)
to 30 in (76.2 cm)
Front
NOTE: There must be a minimum of 45-U unobstructed front-to-back usable
rack space when installing the MX2020 router into a four-post rack or cabinet.
NOTE: If you are installing the MX2020 router into a network cabinet, make
sure that no hardware, device, rack, or cabinet component obstructs the 45-U
rack space from access during installation.
