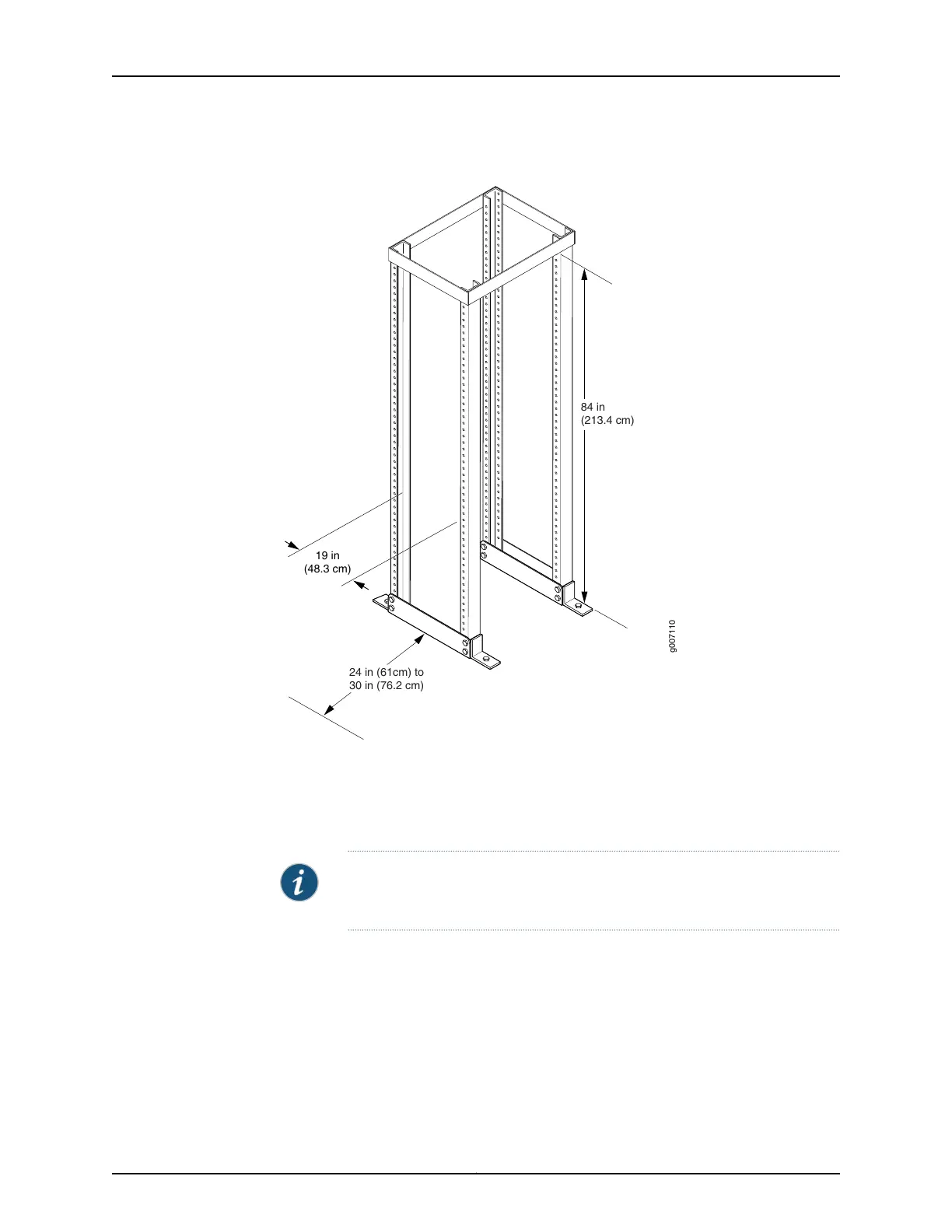

Figure 1: Typical Four-Post Rack
g007110
84 in
(213.4 cm)
24 in (61cm) to
30 in (76.2 cm)
19 in
(48.3 cm)
Moving Requirements and Guidelines Using a Router Transport Kit
The MX2020 requires a minimum 42 in. (106.7 cm) diameter of space to turn the chassis
on the router transport kit (see Figure 2 on page 7.
NOTE: The router transport kit handles can be removed to accommodate
aisle width.
