8. Align the right router transport mounting plate and wheel assembly (indicated by right
arrow) with the holes on the right side of the chassis (see Figure 21 on page 32).
9. Using a number 3 Phillips screwdriver, tighten the captive screws to secure the router
transport mounting plate and wheel assembly to the chassis.

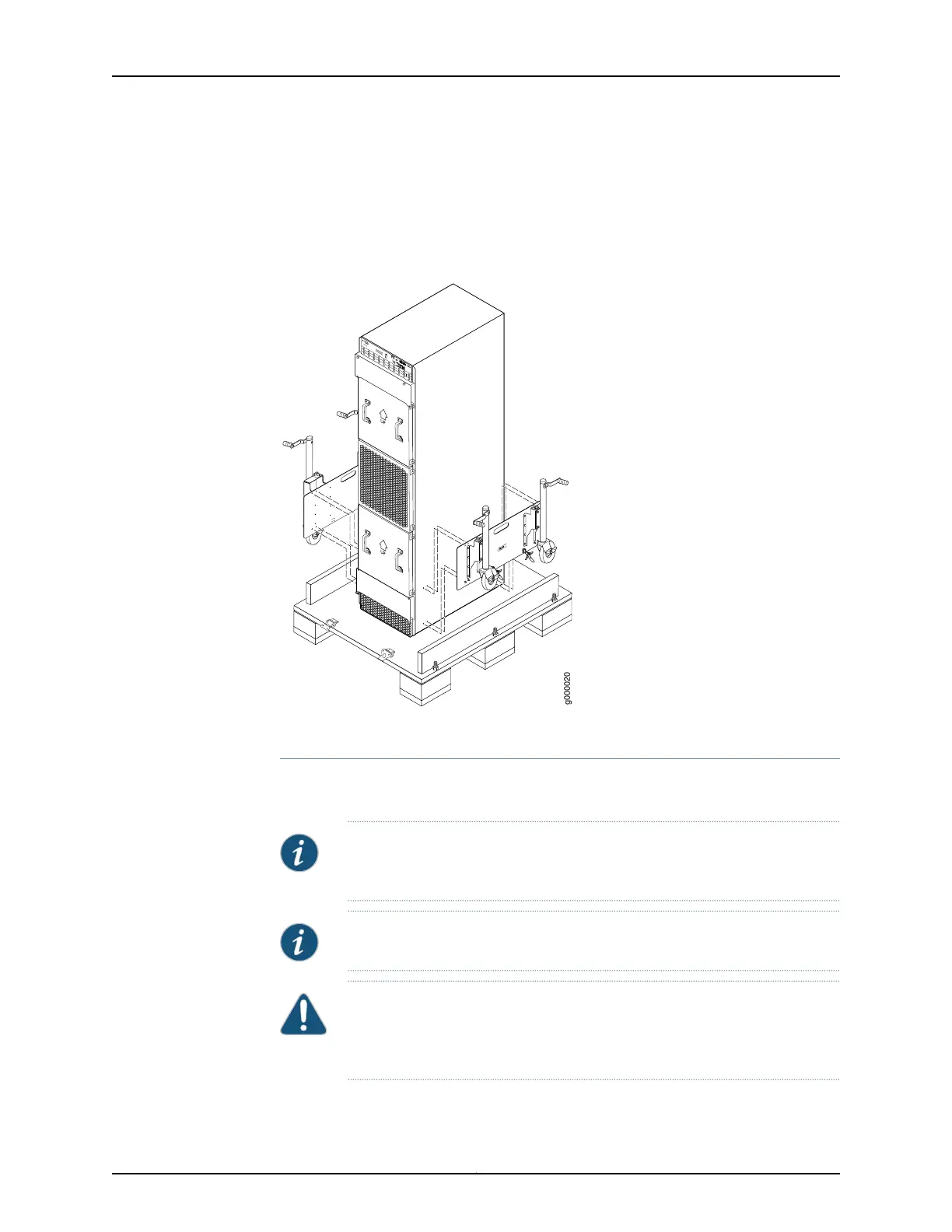

Figure 21: Installing the Router Transport Kit onto the MX2020 Router
RE0
RE1
MASTER
ONLINE
OFFLINE
PSM
1
2
3
4
5
6
7
8
0
10
11
12
13
14
15
16
17
9
MX2200
LC
CB-RE
LC
SFB
10
0
0
11
0
1
12
1
2
13
2
3
14
3
4
15
4
5
16
5
6
17
6
7
18
7
8
19
1
9
LC
CB-RE
LC
SFB
g000020
Use the Transport Kit to Install the Router in the Rack
Because of the router's size and weight—up to 1515 lb (687.2 kg) depending on the
configuration—you must use a router transport kit to install the router.
NOTE: We recommend that you purchase the router transport kit from Juniper
Networks.
NOTE: Four persons are needed to install the router into a rack.
CAUTION: Before front-mounting the router in a rack, have a qualified
technician verify that the rack is strong enough to support the router's weight
and is adequately supported at the installation site.
Copyright © 2015, Juniper Networks, Inc.32
MX2020 3D Universal Edge Router Quick Start
