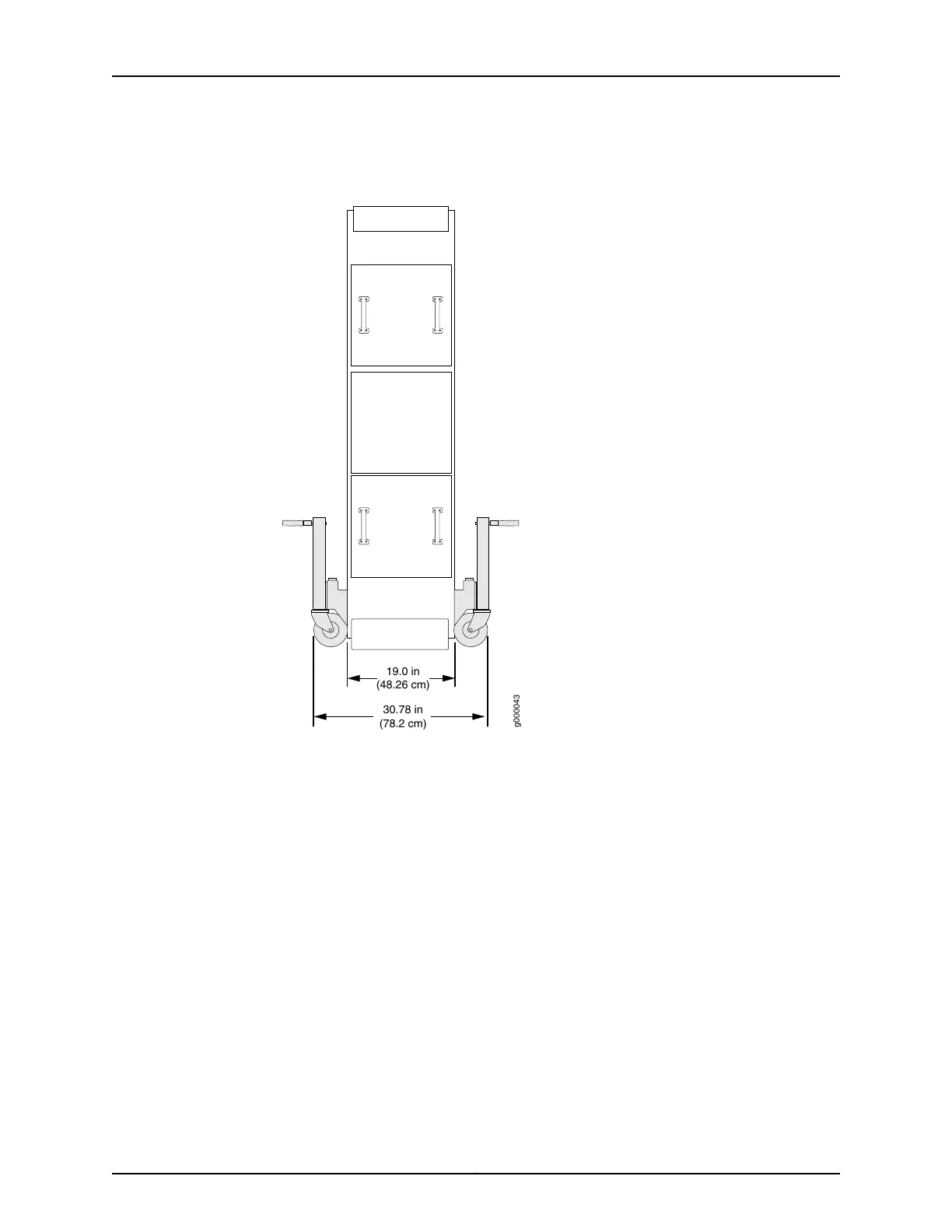

Figure 4: Measurements of the Router Transport Kit Installed on the
MX2020 (Front View)
g000043
30.78 in
(78.2 cm)
19.0 in
(48.26 cm)
Tools Required to Unpack and Prepare the MX2020 Router for Installation
To unpack the router and prepare for installation, you need the following tools and
equipment:
•
Standard pallet jack—48 in. (121.92 cm) deep x 27 in. (68.58 cm) wide
•
Pallet jack attachment (model number MX2000-PLLT-JCK-ADPTR)
•
Router transport kit (model number MX2K-TRNSPRT-KIT)
•
Front component shipping covers
•
Rear component shipping covers
•
Phillips (+) screwdrivers, numbers 1, 2, and 3
•
1-1/8-in. (28.57 mm) torque-controlled driver or socket wrench to tighten router
transport kit winch mechanism
•
9/16-in. (14 mm) open-end or socket wrench with extension to remove bracket bolts
from the shipping pallet
9Copyright © 2015, Juniper Networks, Inc.
Tools Required to Unpack and Prepare the MX2020 Router for Installation
