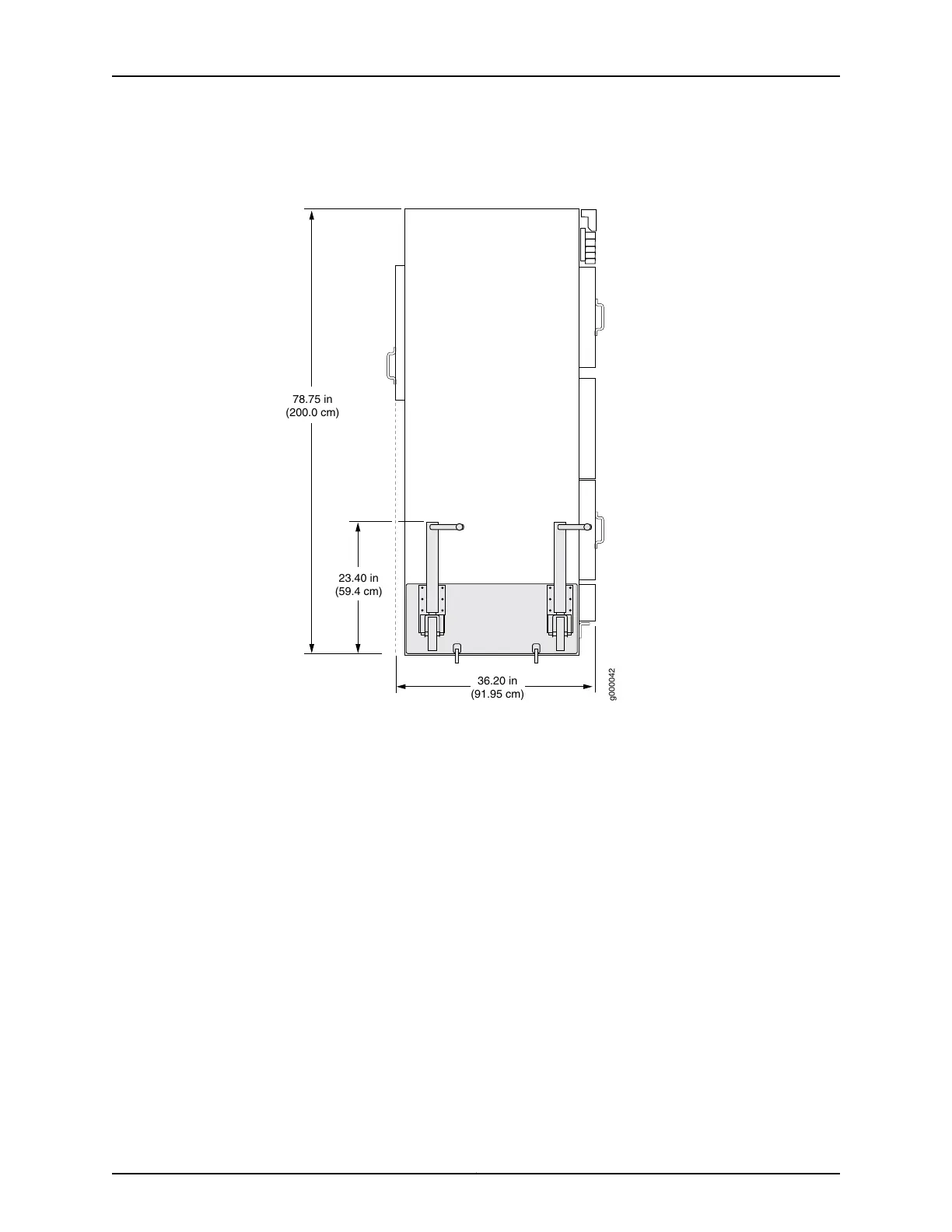

Figure 3: Measurements of the Router Transport Kit Installed on the
MX2020 (Side View)
g000042
78.75 in
(200.0 cm)
23.40 in
(59.4 cm)
36.20 in
(91.95 cm)
Viewed from the front, the router with the router transport kit installed measures 30.78 in.
(78.2 cm) wide (see Figure 4 on page 9).
Copyright © 2015, Juniper Networks, Inc.8
MX2020 3D Universal Edge Router Quick Start
