Juniper QFX5120 Series User Manual

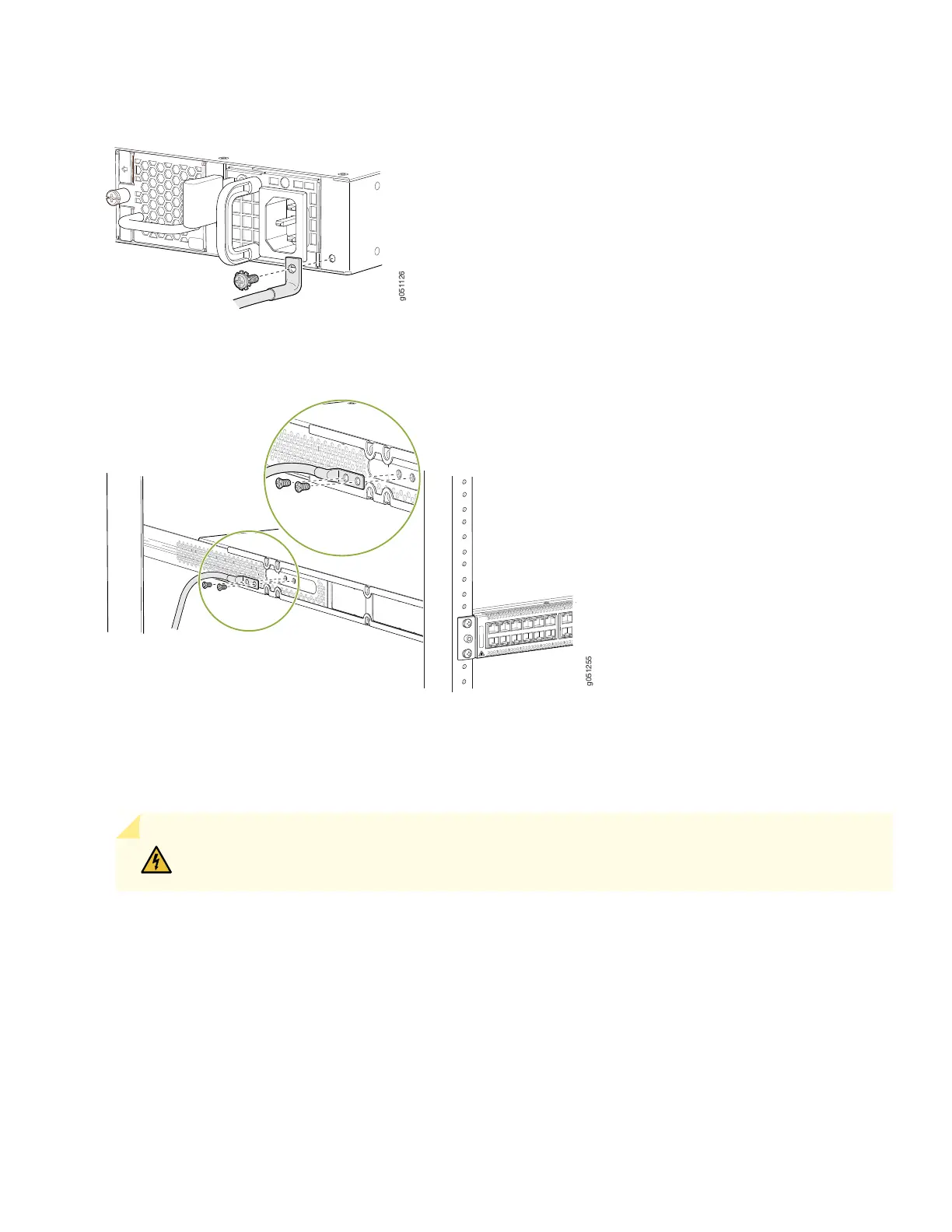

Figure 10: Connect a Grounding Cable to a QFX5120-32C Switch
g051126
Figure 11: Connect a Grounding Cable to a QFX5120-48Y or QFX5120-48T Switch
g051255
3. Secure the grounding lug to the protective earthing terminal with the washers and screws.
4. Dress the grounding cable and ensure that it does not touch or block access to other switch components.
WARNING: Ensure that the cable does not drape where people could trip over it.
Step 4: Connect Power to the Switch
We ship the QFX5120 switches with two power supplies preinstalled. Each power supply is a hot-removable and
hot-insertable field-replaceable unit (FRU) when the second power supply is installed and running: You can install power
supplies in the slots next to the fan modules without powering off the switch or disrupting switch functions.
10

Juniper QFX5120 Series Specifications

General

Rack Units	1 U
Junos OS	Yes
Form Factor	Fixed
Power Supply	Dual, hot-swappable
Cooling	Front-to-back or back-to-front airflow
Fans	Hot-swappable
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Humidity	5% to 90% non-condensing
AC Power Input	100 to 240 VAC
Management Ports	1x RJ-45 console, 1x USB, 1x RJ-45 management
