Juniper SRX650 User Manual

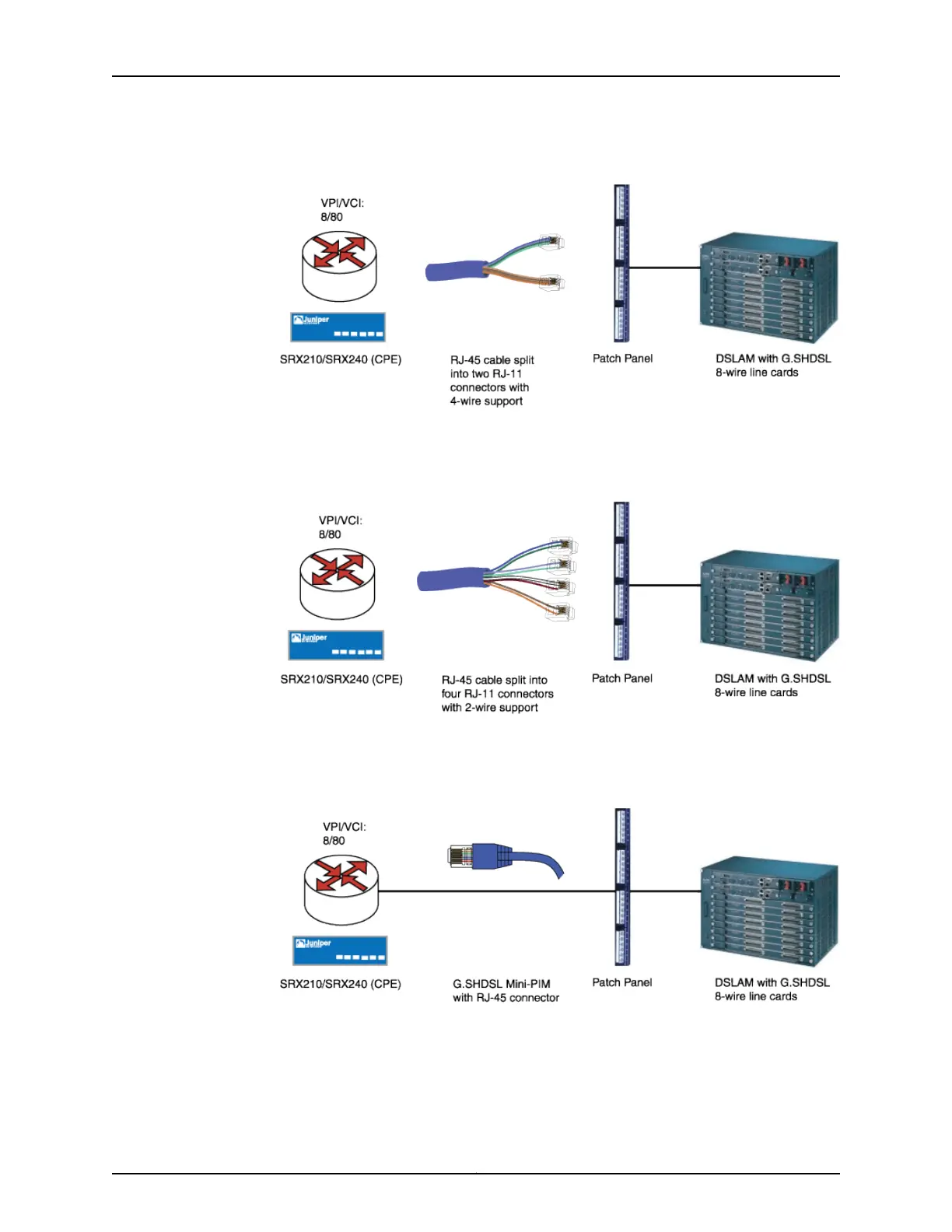

Figure 33: 1-Port G.SHDSL Mini-PIM Operating in 4 X 2-Wire Mode
Figure 34 on page 136 shows the topology for 1-Port G.SHDSL Mini-PIM operating in 2 X
4-wire mode.
Figure 34: G.SHDSL Mini-PIM Operating in 2 X 4-Wire Mode
Figure 35 on page 136 shows the topology for 1-Port G.SHDSL Mini-PIM operating in 1 X
8-wire mode.
Figure 35: G.SHDSL Mini-PIM Operating in 1 X 8-Wire Mode
RJ-45 Cable (RJ-45 to
Four RJ-11 Connectors)
Pin Assignment
Table 76 on page 137 shows the pin assignments of the RJ-45 cable (RJ-45 to 4 X RJ-11).
Copyright © 2015, Juniper Networks, Inc.136
SRX Series Services Gateways for the Branch Physical Interface Modules Reference
