Junkers ZWC 24-3 MFK User Manual

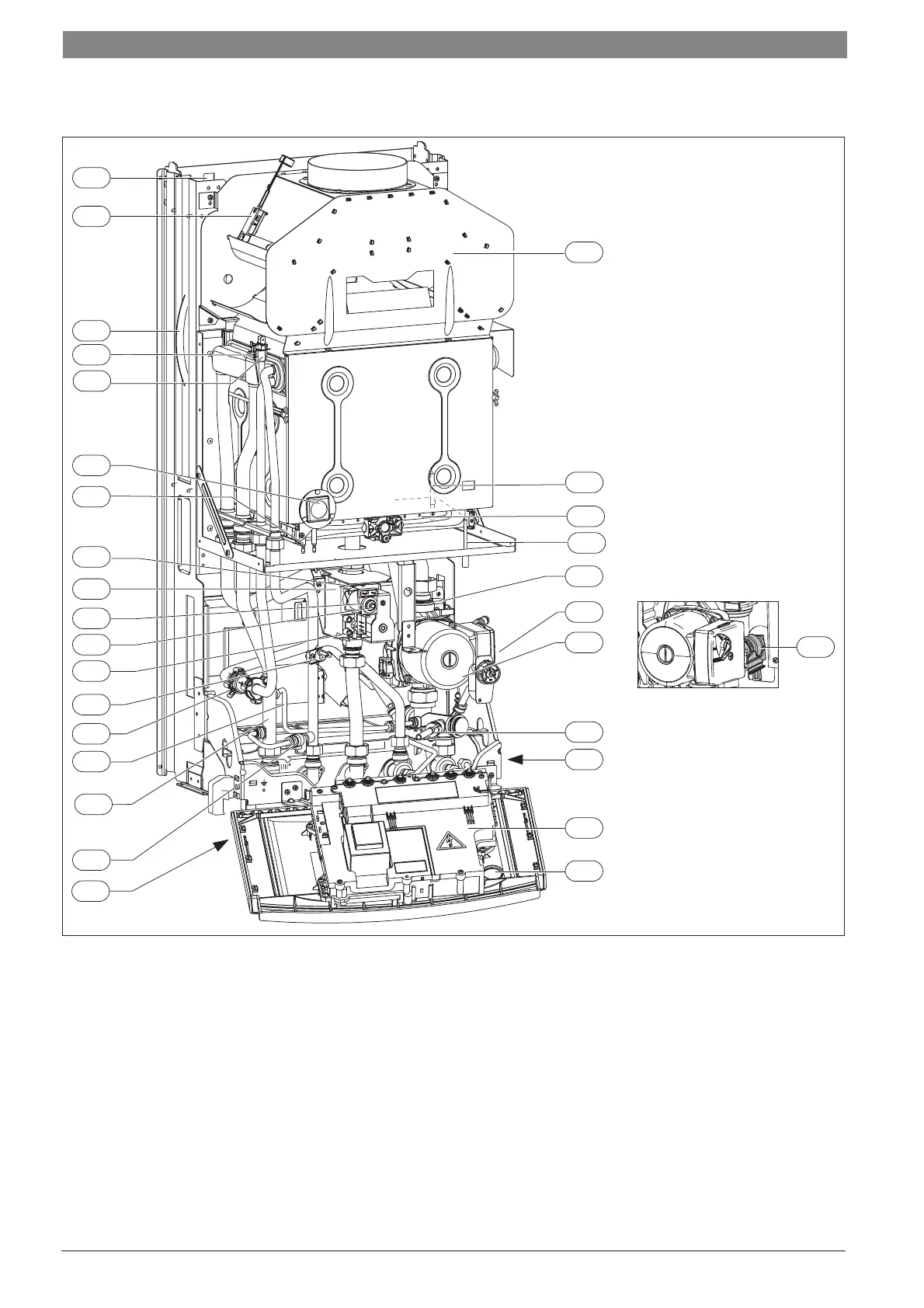

2.1.2 ZWE 24-5 MFK
Fig. 2
3 Testing point (injector pressure)
4 Heatronic 3
6 Temperature limiter for heat exchanger
6.1 Flue gas monitoring system (draught diverter)
6.2 Flue gas monitoring system (combustion chamber)
6.3 Temperature sensor for hot water
7 Testing point for gas supply pressure
8.1 Pressure gauge
15 Safety valve (CH system)
18 Central heating pump
18.1 Pump speed selector switch
20 Expansion vessel
27 Automatic air vent
29 Burner with injector manifold
32 Flame sensing electrode
33 Igniter electrodes
36 Temperature sensor in CH flow
38 System filling loop
39 Draught diverter
43 CH flow
56 Gas valve
63 Adjusting nut for max. gas inlet flow volume
64 Adjusting screw for min. gas inlet flow volume
102 Inspection window
120 Fixing points
295 Appliance type sticker
361.1 Drain tap
413 DHW flow meter (turbine)
418 Data plate
6 720 613 077-02.1O
15
6.1
120
6
102
38
7
64
63
33
56
3
11
39
27
18
18.1
361.1
418
8.1
4
29
6.2
295
20
32
36
6.3
43
413
6 720 660 238 (2008/07)
5
5 | Appliance Layout and Hydralic Diagrams
