three decimal places such as: 3.000, DPM8616, DPM8624 and DPM8650
current display two decimal places such as 03.00.
1. Indicator Introduction
PT: Temperature protection indicator. When the temperature is greater than
80
℃
, the PT light is on, indicating over-temperature protection.
CV: Constant voltage indicator. The CV indicator is on, indicating constant
voltage output.
CC: Constant current indicator. The CC indicator is on, indicating constant
current output.
COM: Communication indicator. When there is a command input, the COM
indicator will be on, indicating normal communication.
2. Module Introduction

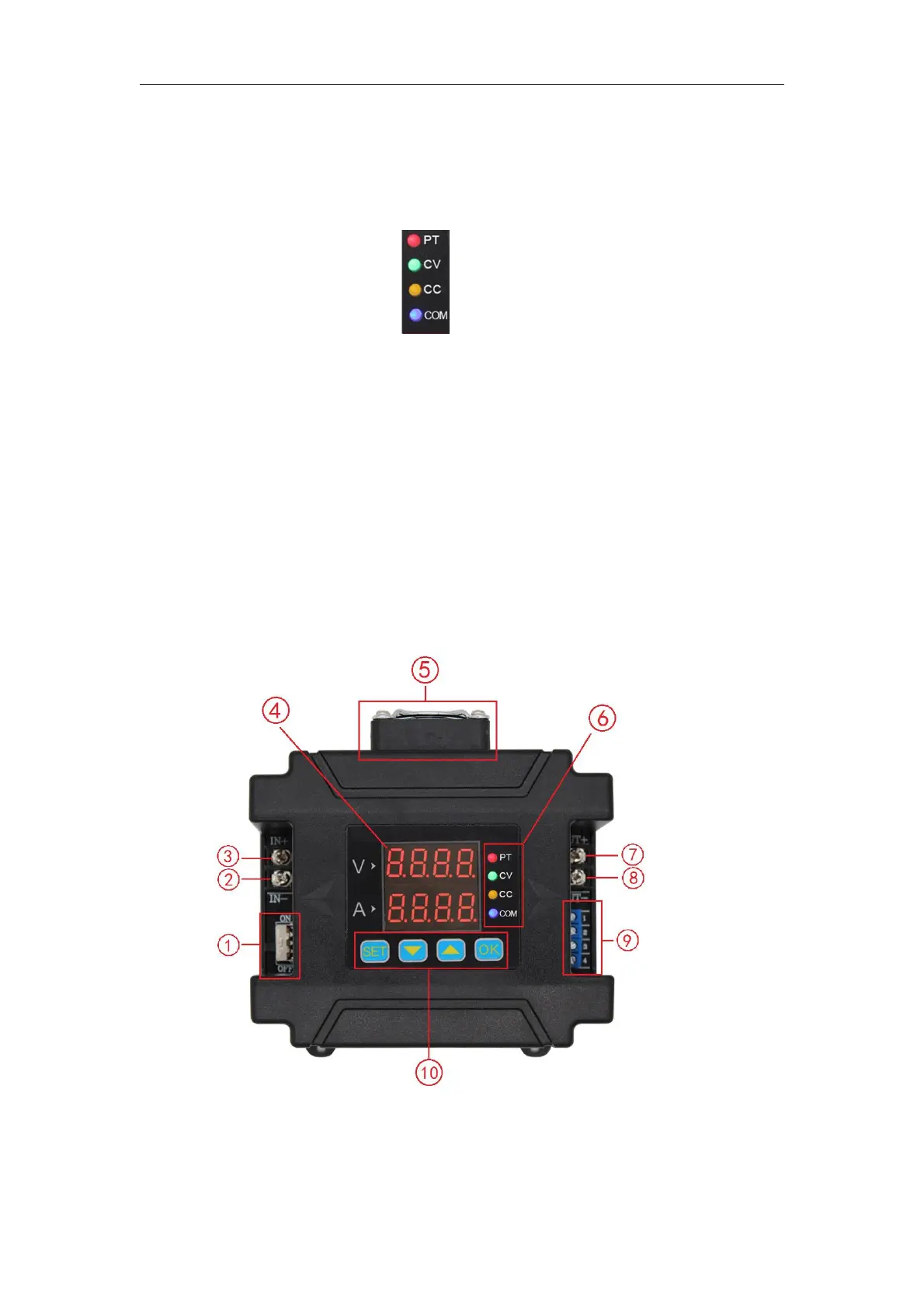

Figure 2-1 Illustration of DPM8600 series power supply (DPM8605 / DPM8608)
