Table 2-1 DPM8600 series power supply description(DPM8605 / DPM8608)
Item
Description
Item
Description
①
Switch
⑥
Indicator
②
Negative input terminal
⑦
Positive output terminal
③
Positive input terminal
⑧
Negative output terminal
④
LED
⑨
Communication Interface
⑤
Fan
⑩
Function buttons

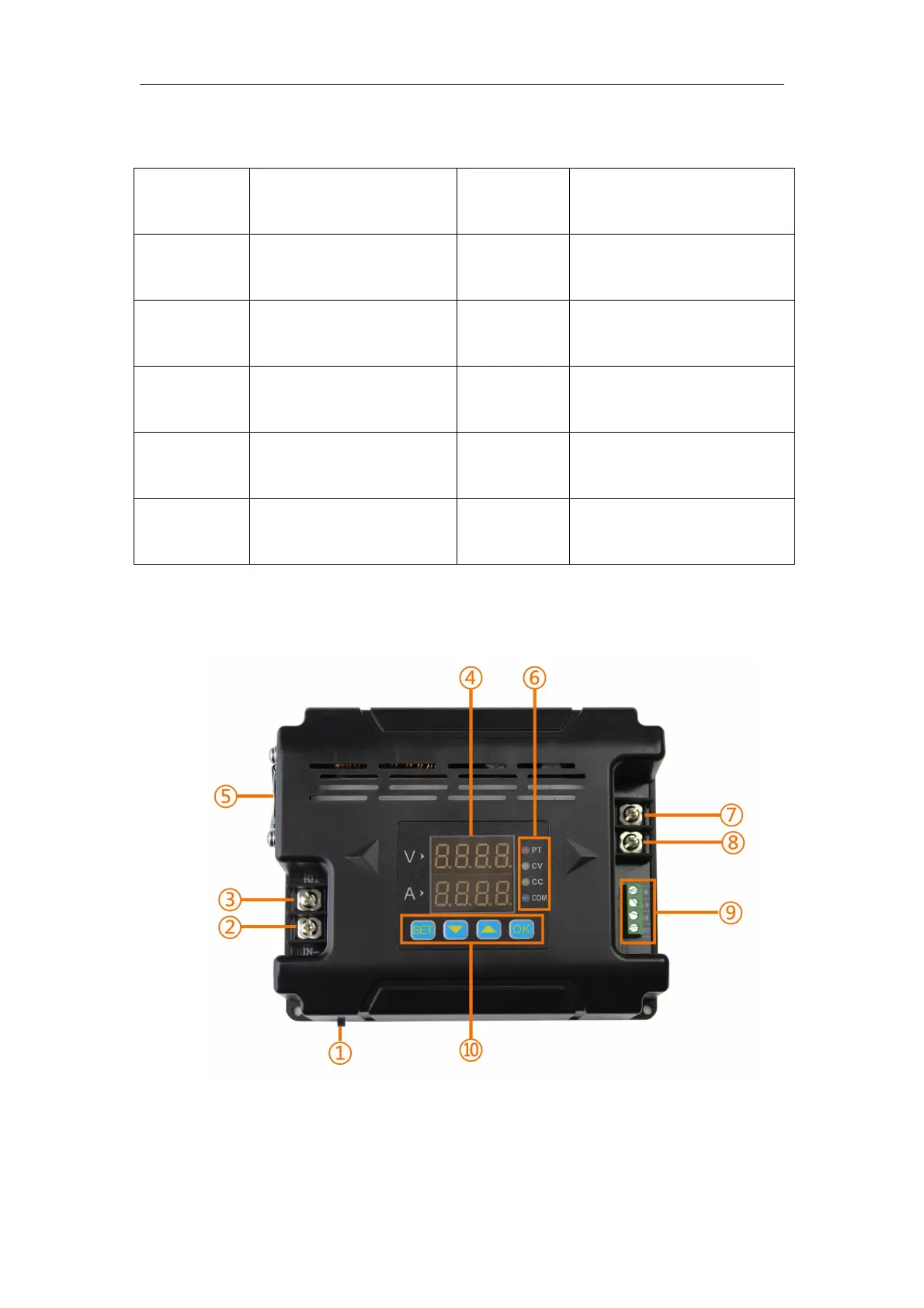

Figure 2-2 Illustration of DPM8600 series power supply (DPM8616 / DPM8624)
