Table 2-2 DPM8600 series power supply description(DPM8616 / DPM8624)
Item
Description
Item
Description
①
Switch
⑥
Indicator
②
Negative input terminal
⑦
Positive output terminal
③
Positive input terminal
⑧
Negative output terminal
④
LED
⑨
Communication Interface
⑤
Fan
⑩
Function buttons

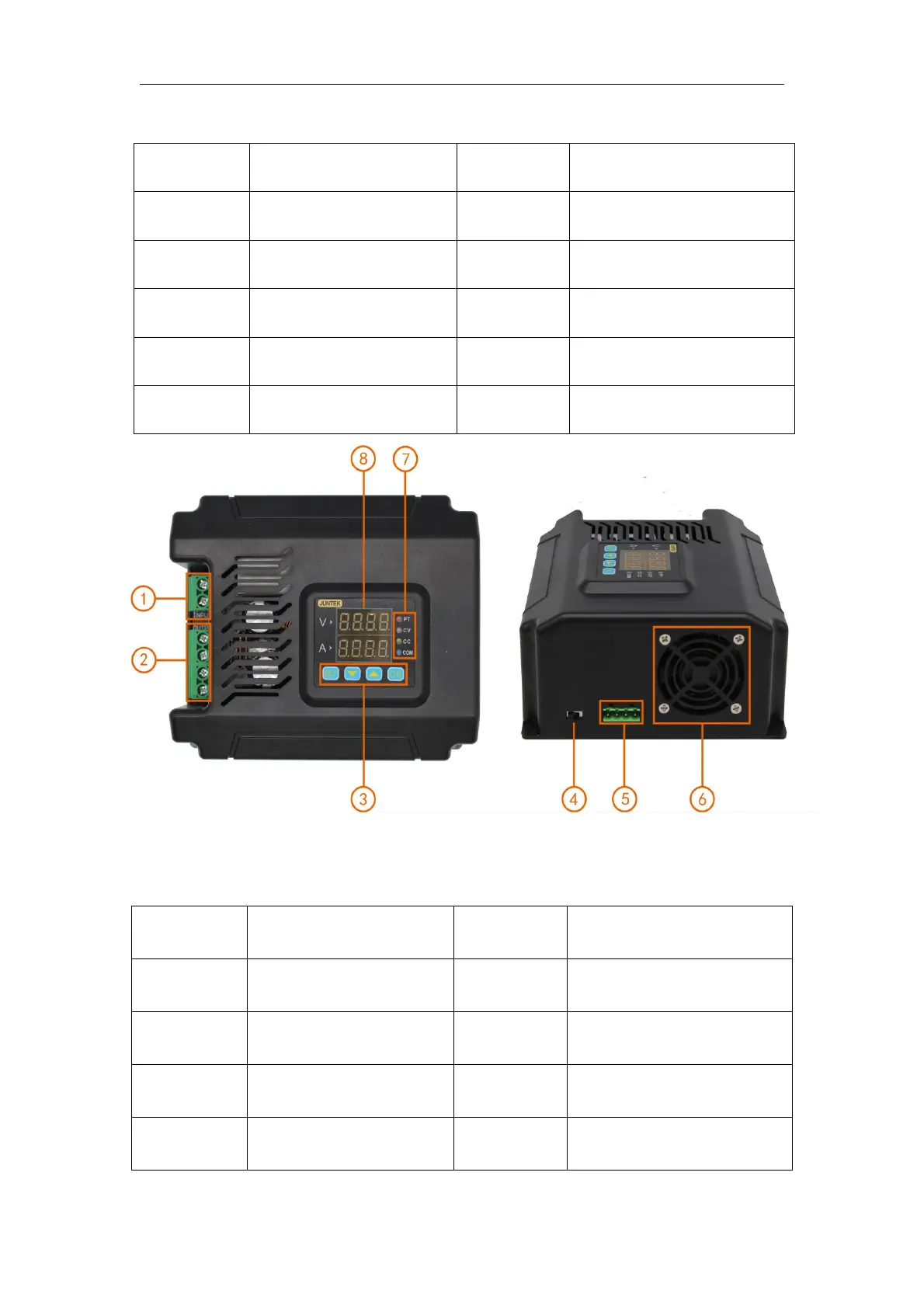

Figure 2-3 Illustration of DPM8600 series power supply (DPM8650)
Table 2-3 DPM8600 series power supply description (DPM8650)
Item
Description
Item
Description
①
Input terminal
⑤
Communication Interface
②
Output terminal
⑥
Fan
③
Function buttons
⑦
Indicator
④
Switch
⑧
LED
