1.1 Service cover / side panel 1
st
generation:

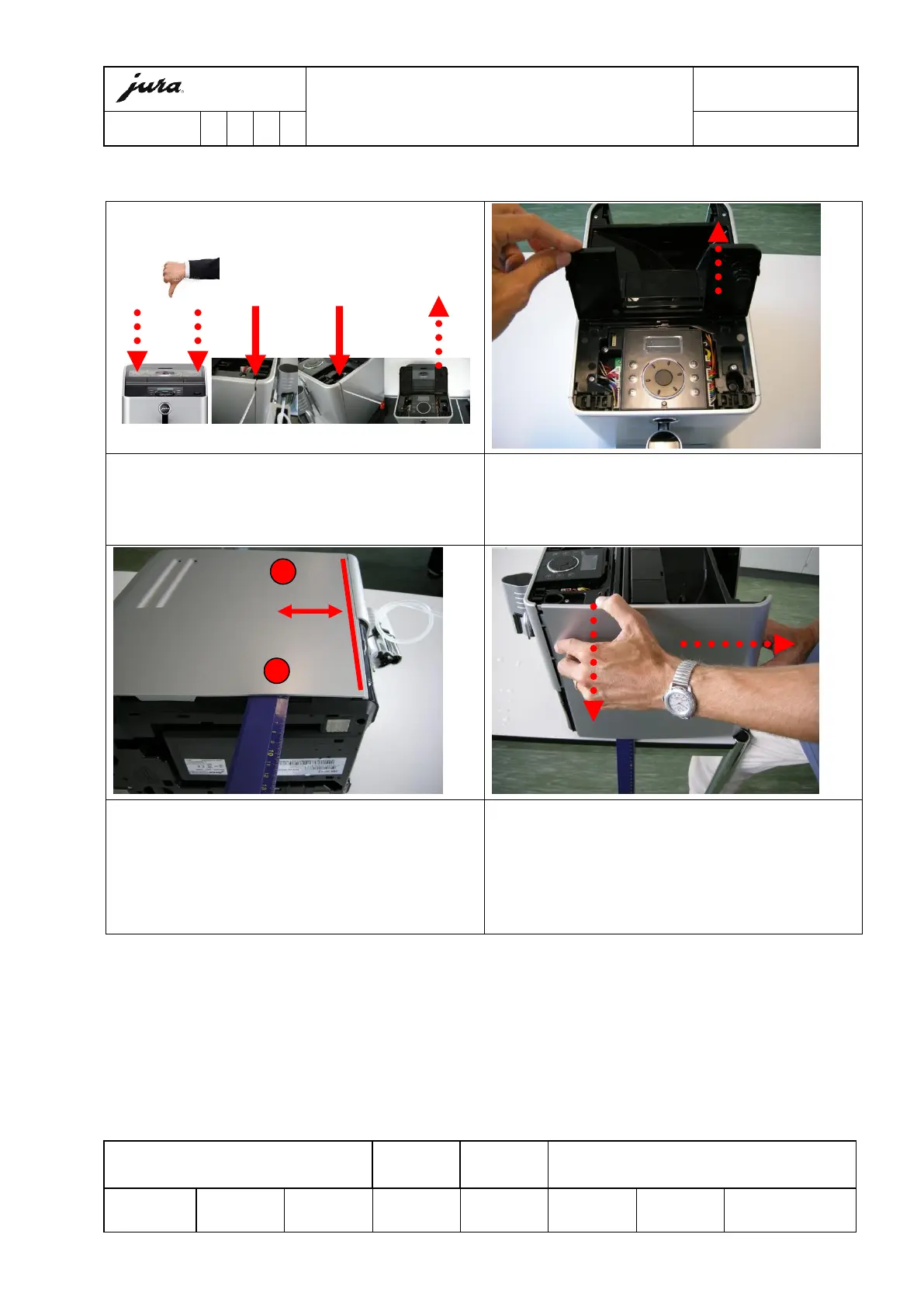

5. Push with a small screw driver (no. 0) or alike
simultaneous in both immersions of the interlock
(between both lateral- and front parts).
- Support by pushing with finger from above.
6. Remove cover of the service plug
7. Insert e.g. a plastic ruler in between the bottom
and lateral part to release the barb
(approx. 7 cm of distance)
8. On the same, upper side, pull outside the lateral
part with your thumb (or similar aid).
Pull backwards the whole lateral part.
Proceed the same way for the other
lateral part.
