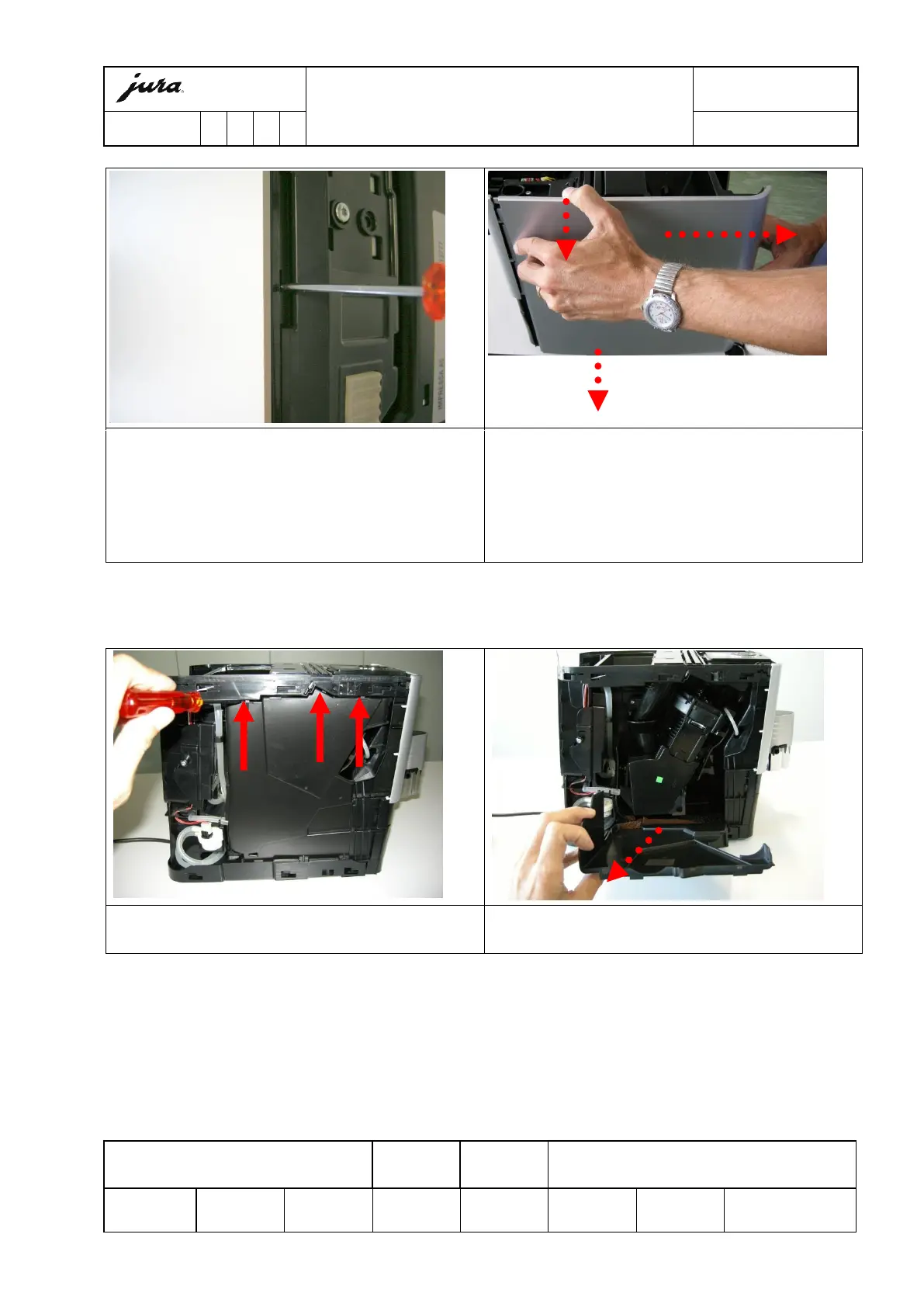

13. Sliding-in a small screw driver to release lower
barb (slot under appliance base) and keep in
position
14. On both sides, pull outside the lateral part with
your thumb (or similar aid).
Pull backwards the whole lateral part.
Proceed the same way for the other
lateral part.
1.3 Disassembling of further components:
15. Remove with a screw driver the cover of the
brewing unit
16. View:
Brewing unit cover removed.
