1.2 Service cover / side panel 2
nd
generation and IMPRESSA A line:

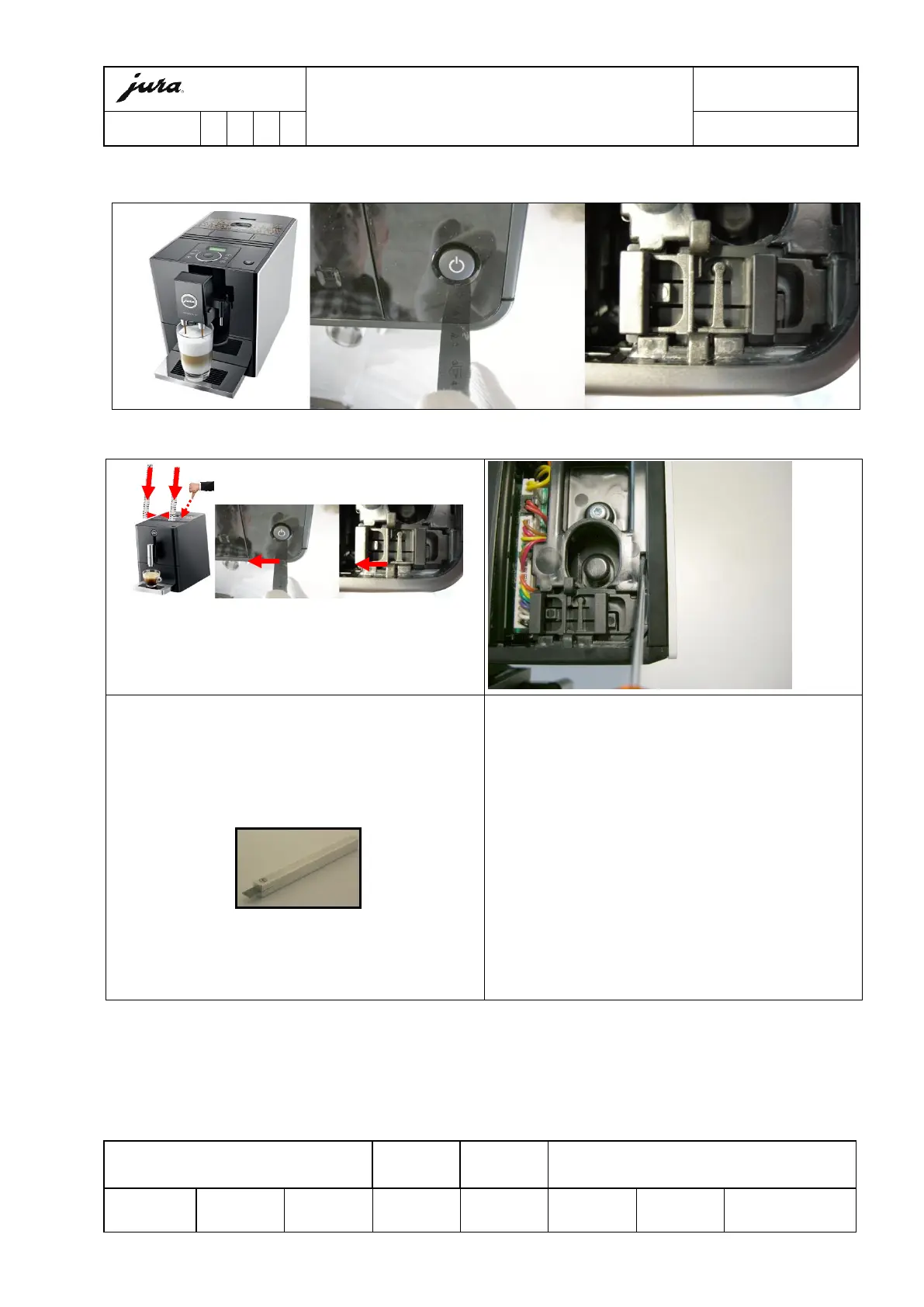

11. Insert a metal ruler (thickness max. 0.5 mm) on
the front side and slide it to the left
(pay attention to not scratch the control panel)
New: Unlock tool for service cover ENA Micro Art.
No. 71178
- Support by pushing with finger from above
- Release the left lock analogue
the right lock
12. Sliding-in a small screw driver to release upper
barb and keep in position
