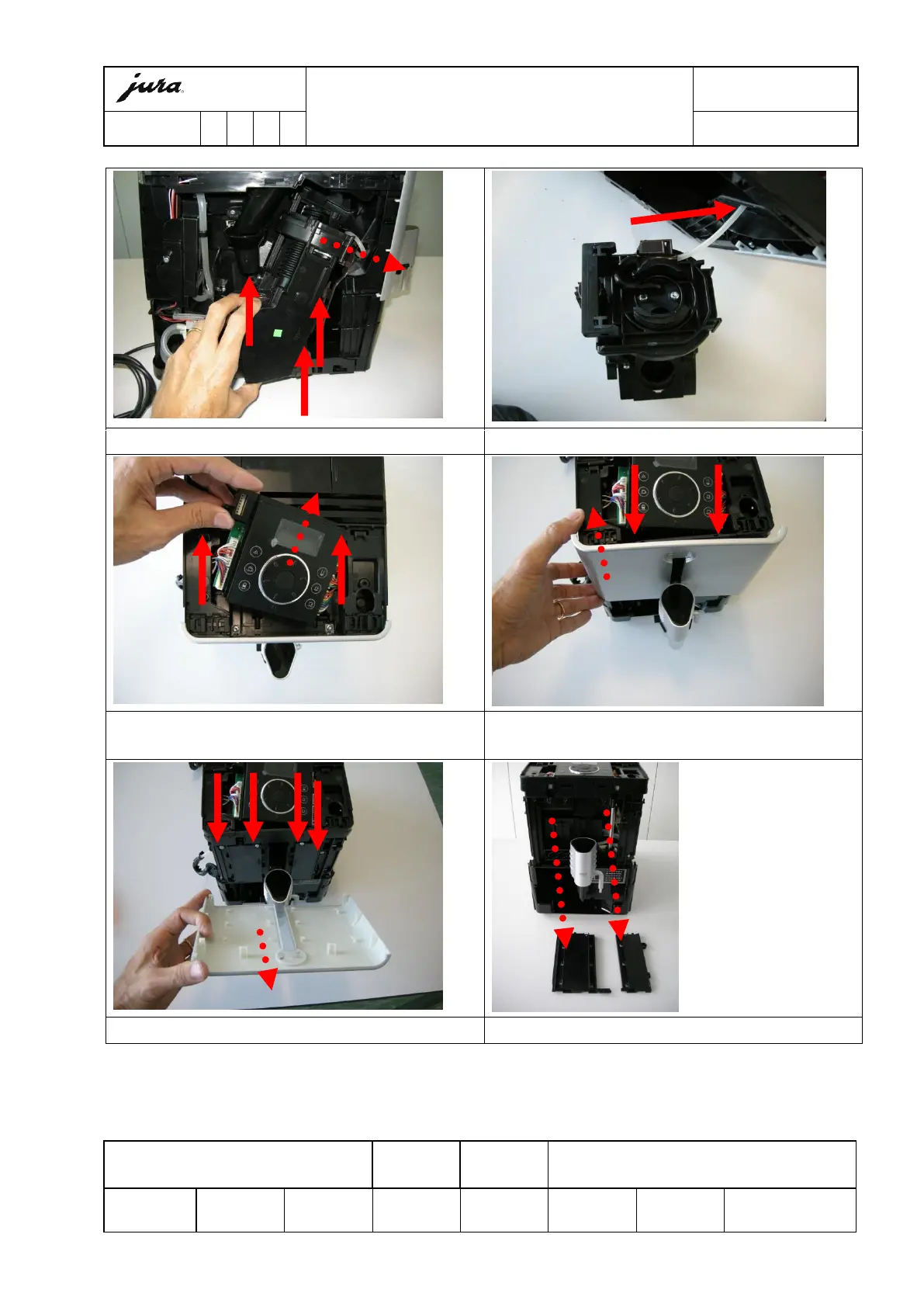

17. Unscrew 3x TORX 15 to remove the brewing unit
18. Remove hose
19. Unscrew 2x TORX 15.
Remove control panel (display module).
20. Unscrew 2x TORX 15.
Remove the front shield upwards.
21. Unscrew 4x TORX 15
22. Remove the 2x supports of the front shield
