Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
ENA Micro line / IMPRESSA A line
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontage_ENA_Micro_EN.docx
L:\Geräte\Linie_A\A5_OT\Schulungsunterlagen\E\Demontag
e_ENA_Micro_EN.docx
Date:
Rev. G:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
06.10.2011
20.02.2014
21.03.2012
19.09.2012
14.11.2012
27.03.2013
17.09.2013
Page 9/26

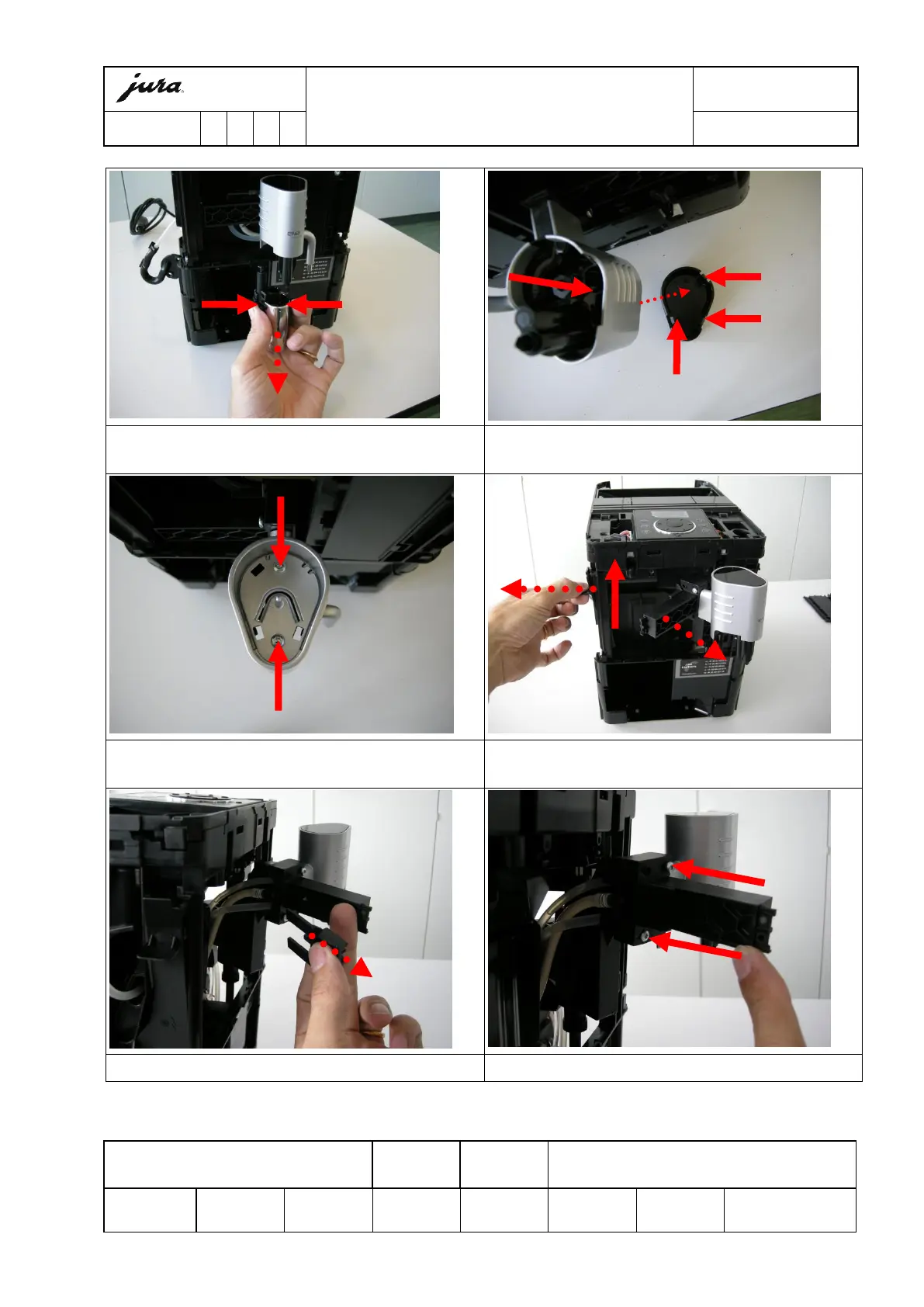

23. Remove coffee spout
(Press interlocks on both sides)
24. Release 3x snap-locks of the bottom of the coffee
spout and remove the lid
25. Unscrew 2x TORX 10 of the top of the coffee
spout
26. Release snap-lock and safety guide.
Swing the coffee spout.
27. Release 2x snap-locks of the interlock angel
28. Unscrew 2x TORX 10 of the fluid system support
