Jura ENA Micro Series - Page 10

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
ENA Micro line / IMPRESSA A line
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontage_ENA_Micro_EN.docx
L:\Geräte\Linie_A\A5_OT\Schulungsunterlagen\E\Demontag
e_ENA_Micro_EN.docx
Date:
Rev. G:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
06.10.2011
20.02.2014
21.03.2012
19.09.2012
14.11.2012
27.03.2013
17.09.2013
Page 10/26

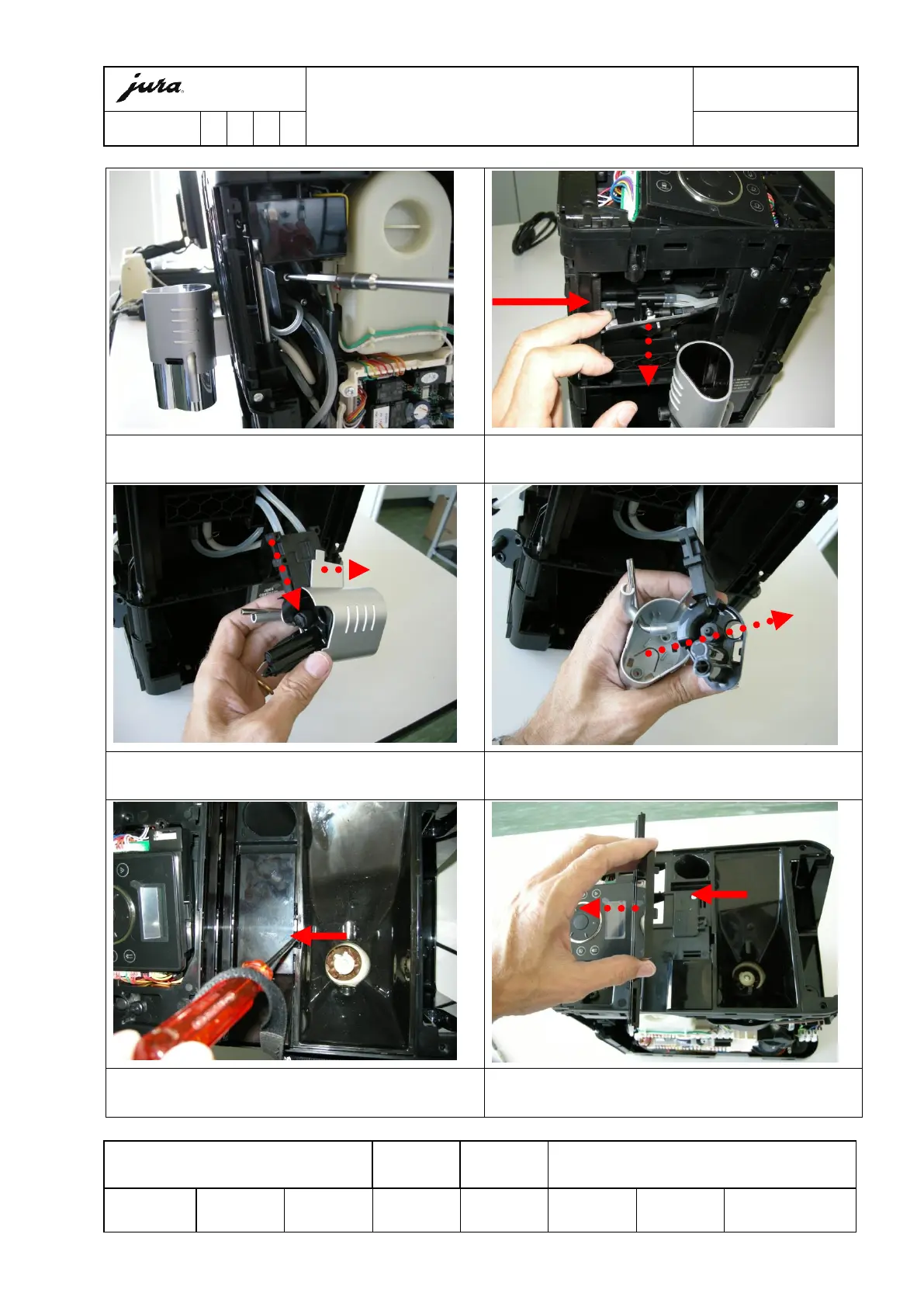

29. Unscrew TORX 15 of the hose shield
30. Remove hose shield.
Hose connection to brewing unit.
31. Pull out the fluid system support.
Detach the shield of the fluid system support.
32. Remove the shield upwards
33. Release snap-lock of the air cover
34. Remove the air cover.
Unscrew 1x TORX 15.
