SPARE PART DATA SHEET – LC 300-420-580 M
REV. 12
10-12-2021
30 / 44
Jurop SpA
Via Crosera n° 50
33082 Azzano Decimo, PN (Italia)
TEL. +39 0434 636811 FAX. +39 0434 636812
http://www.jurop.it
e-mail: info@jurop.it
93
4026351504
WASHER M6 ZINC.
4
106
4026706000
FITTING 90° 4X1/8
4
94
4026351505
WASHER M8 ZINC.
11
107
4026706003
FITTING 90° 6X1/8
2
95
4026351507
WASHER M12 ZINC.
14
108
4026706101
FITTING 4X1/8
2
96
4026357005
WASHER M8 ZINC.
1
109
4026904003
PLUG 1” ZINC.
6
97
4026357006
WASHER M10 ZINC.
6
110
4026904300
VENTIL VALVE 1/4
2
98
4026357007
WASHER M12 ZINC.
2
111
4026904503
PLUG M20X1,5
1
99
4026359001
WASHER 33,5X40X1,5
6
112
4026905002
PLUG ¼ ZINC.
2
100
4026359003
WASHER 21,5X26X1,5
1
113
4026910103
VENTIL PLUG 1
1
101
4026359006
WASHER 13,5X18X1,5
4
114
4026910601
PLUG 1/8”
2
102
4026401806
PIN 10X36
2
115
4029602701
NUT M8 PROTECTION
1
103
4026501004
TAB 12X8X45
1
116
4029602806
DRIVE SHAFT PROTECTION
1
104
4026701603
PLUG ½
1
105
4026702000
FITTING 4X1/8
4
1892008800
GASKET KIT LC 58 WITH GEARBOX
Pos.
Code
Description
Q.ty
Pos.
Code
Description
Q.ty
H1
1470102300
HYDRAULIC JOINT LC300-420
1
H13
4026102908
SCREW TE 8.8 M10X30 ZINC.
18
14701BEBB0
HYDRAULIC JOINT LC580
1
H14
4026103004
SCREW TE 8.8 M12X40 ZINC.
4
H2
1521506700
ROTOR LC 300 HDR
1
H15
4026121405
SCREW TCEI 8.8 M8X20 ZINC.
3
1521506000
ROTOR LC 420 HDR
1
H16
4026136003
GRUB SCREW 14.9 M8X8 LC300-420
1
1521507500
ROTOR LC 580 HDR
1
4026136005
GRUB SCREW 14.9 M8X12 LC580
1
H3
1610021600
FLANGE
1
H17
4026136006
GRUB SCREW 14.9 M8X14 LC300-420
1
H4
1610513500
LC300-420 HOUSING PUMP FLANGE
2
4026136005
GRUB SCREW 14.9 M8X12 LC580
1
1610514300
LC580 HOUSING PUMP FLANGE
2
H18
4026171304
STUD SCREW 8.8 M14X40 ZINC.
4
H5
1612501000
HDR MOTOR MOUNTING FLANGE
1
H19
4026308008
NUT M14 ZINC.
4
H6
1624037700
SPACER LC300-420
2
H20
4026350709
WASHER GROWER 12 ZINC.
4
4026300025
COMPENSATION SPACER LC580
1
H21
4026350710
WASHER GROWER 14 ZINC.
4
H7
1680707300
FRONT FLANGE GASKET
1
H22
4026351505
WASHER M8 ZINC.
6
H8
1680709800
LC300-420 HOUSING FLANGE GASKET
2
H23
4026351506
WASHER M10 ZINC.
16
1680712200
LC580 HOUSING FLANGE GASKET
2
H24
4026359001
WASHER 33,5X40X1,5
7
H9
4022200044
Y-SEAL 65X45X8
1
H25
4026501004
TAB 12X8X45 LC HDR
1
H10
4022200416
Y-SEAL 60X75X8 LC300-420
4
H26
4026510032
SEEGER E45
2
4022200113
Y-SEAL 70X55X15 LC580
2
H27
4026904003
PLUG 1” ZINC.
7
H11
4023100047
BEARING 6309
1
H12
4024107009
HYDRAULIC MOTOR LC 300
1
4024107001
HYDRAULIC MOTOR LC 420
1
4024107003
HYDRAULIC MOTOR LC 580
1

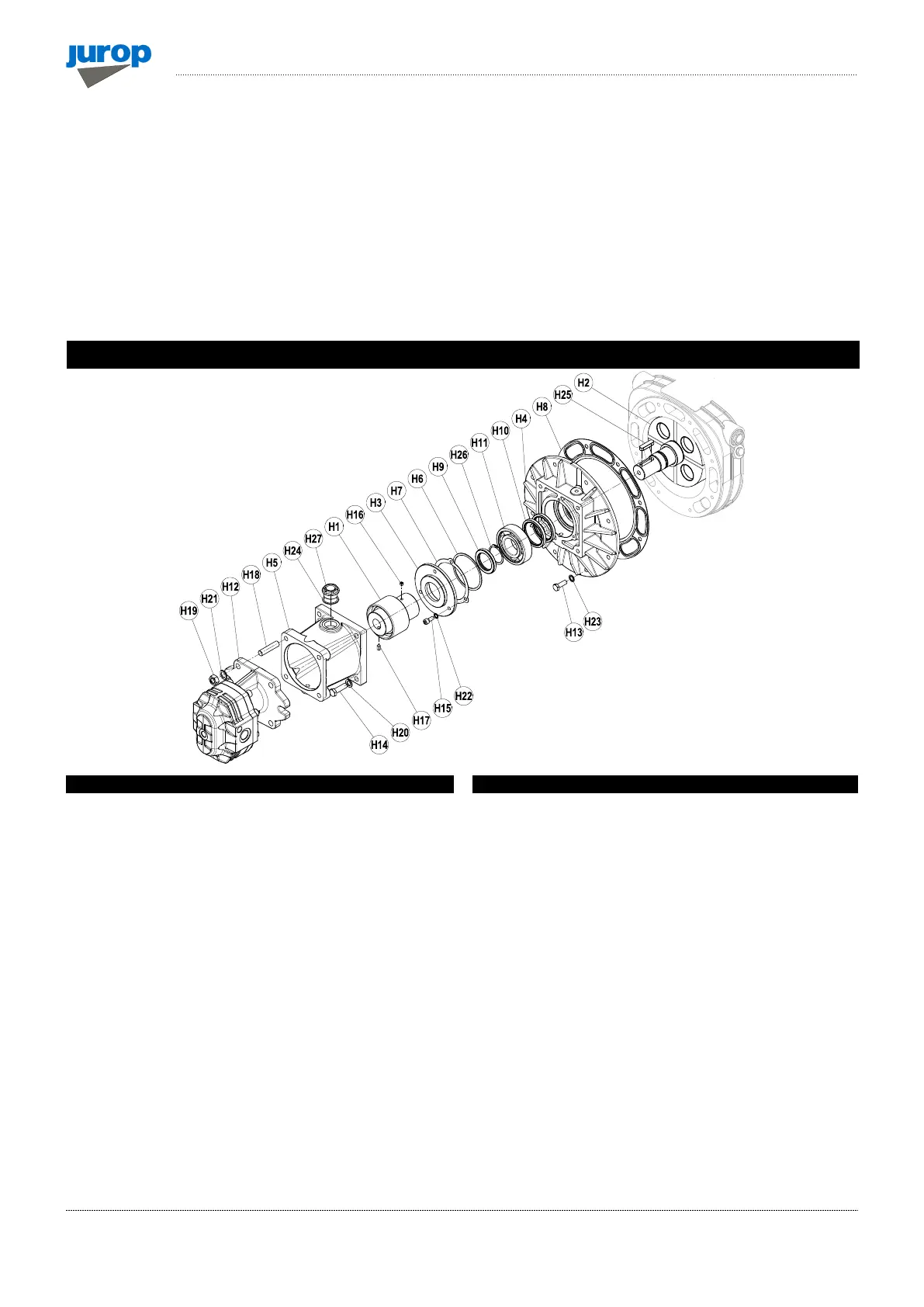

LC 300-420-580 WITH HYDRAULIC MOTOR
PICTURE SHOWS:
LC420 HDR RIGHT ROTATION - CODE: E248109440
LC300 - CODE: E37…
LC420 - CODE: E24…
LC580 - CODE: E56…
