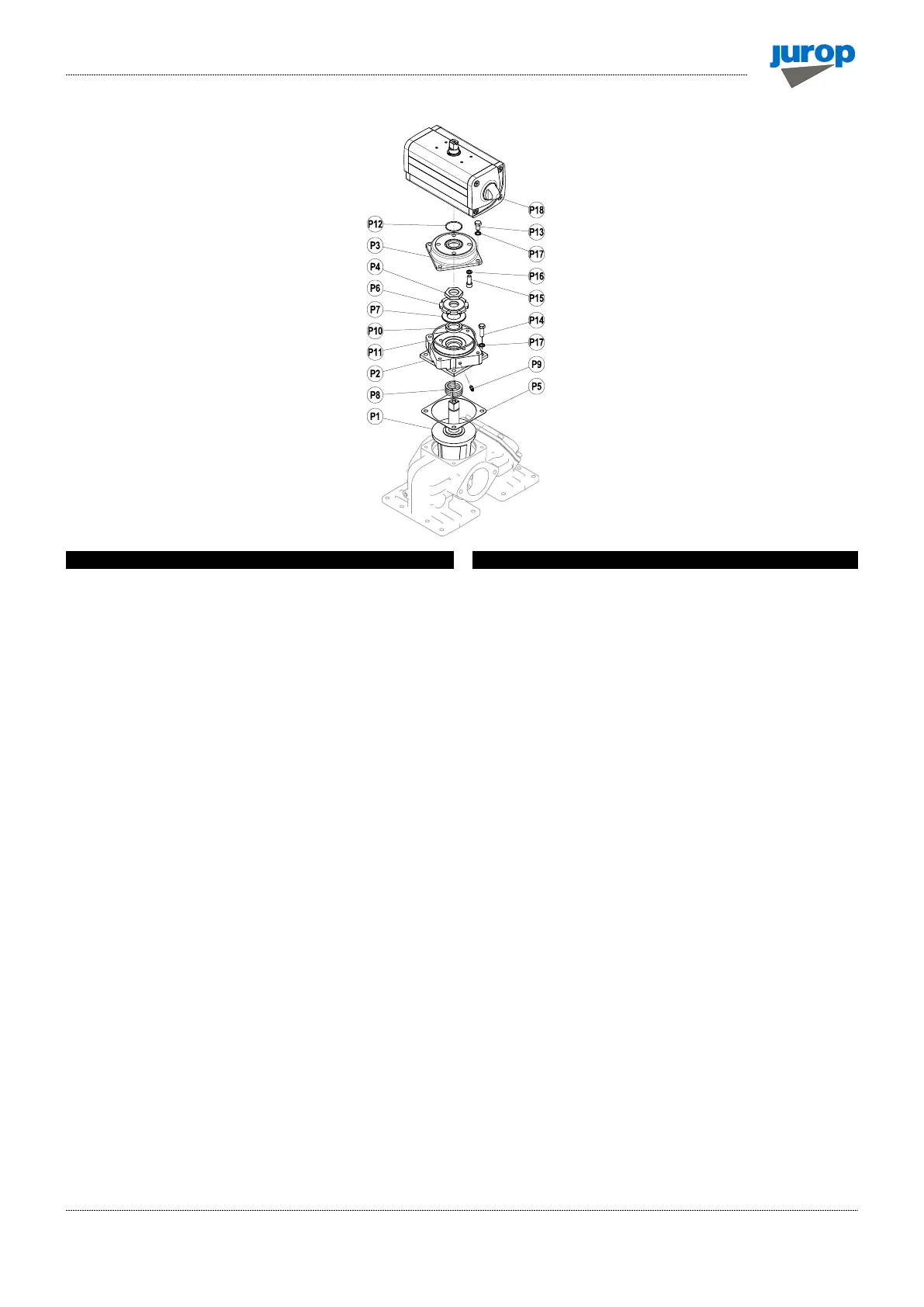

SPARE PART DATA SHEET – COOLING WATER PUMP LC
REV. 12
10-12-2021
39 / 44
Jurop SpA
Via Crosera n° 50
33082 Azzano Decimo, PN (Italia)
TEL. +39 0434 636811 FAX. +39 0434 636812
http://www.jurop.it
e-mail: info@jurop.it
Pos.
Code
Description
Q.ty
Pos.
Code
Description
Q.ty
143028B7B0
LC300 PNEUMATIC OPERATED 4-WAY KIT
P13
4026102804
SCREW TE M8X16
1
P1
160858KNB0
INSIDE VALVE
1
P14
4026102807
SCREW TE M8X25 GALV.
4
P2
161258B4B0
SUPPORT FLANGE
1
P15
4026121405
SCREW TCEI M8X20 GALV.
4
P3
1640580QB0
COVER
1
P16
4026350505
WASHER GROWER 8 GALV.
4
P4
167007ZAB0
NUT
1
P17
4026351505
WASHER M8 GALV.
4
P5
1680700200
GASKET
1
P18
4027100405
PNEUMATIC ACTUATOR
8
P6
168409PQB0
WASHER
1
P7
168529TFB0
SPACER
1
143028LKB0
KIT INVERSORE PNEUMATICO LC750
P8
1691000200
SPRING
1
P1
160858LLB0
DEVIATORE ATT. PNEUMATICO
1
P9
4022100100
GREASER M6X1
1
P2
161258L9B0
SCATOLA ATT. PNEUMATICO
1
P10
4022200005
SEAL 37X27X7
1
P3
1640580QB0
COPERCHIO ATTUATORE PNEUMATICO
1
P11
4022200330
OR SEAL 3375
1
P4
167007ZAB0
DADO FIL. ATTUAT. PNEUMATICO
1
P12
4022200331
OR SEAL 2137
1
P5
1680612200
GUARNIZIONE CAPPELLOTTO
1
P13
4026102804
SCREW TE M8X16
4
P6
168409PQB0
GHIERA REGOL. DEV. PNEUMATICO
1
P14
4026102807
SCREW TE M8X25
4
P7
168529TFB0
DISTANZIALE ATTUATORE PNEUMATICO
1
P15
4026121405
SCREW TCEI M8X20
4
P8
1691000200
MOLLA DEVIATORE CORTA
1
P16
4026350505
WASHER GROWER 8 GALV.
4
P9
4022100100
INGRASSATORE SFER.DIR.M6X1
1
P17
4026351505
WASHER M8
8
P10
4022200005
ANELLO TEN.AS 37X27X7
1
P18
4027100405
PNEUMATIC ACTUATOR
1
P11
4022200330
ANELLO OR 3375
1
P12
4022200331
ANELLO OR 2137
1
143028GZB0
LC420-520 PNM OPERATED 4-WAY KIT
P13
4026102804
VITE TE M8X16
4
P1
160858KBB0
INSIDE VALVE
P14
4026102807
VITE TE M8X25 ZINC.
4
P2
161258H0B0
SUPPORT FLANGE
1
P15
4026121405
VITE TCEI M8X20 ZINC.
4
P3
1640580QB0
COVER
1
P16
4026350505
RONDELLA GROWER 8 ZN. QUADRA
4
P4
167007ZAB0
NUT
1
P17
4026351505
RONDELLA DENTATA M8 ZINC.
8
P5
1680707800
CONVEYOR-CAP GASKET
1
P18
4027100405
ATTUATORE PNEUMATICO
1
P6
168409PQB0
WASHER
1
P7
168529TFB0
SPACER
1
P8
1691000200
SPRING
1
P9
4022100100
GREASER M6X1
1
P10
4022200005
SEAL 37X27X7
1
P11
4022200330
OR SEAL 3375
1
P12
4022200331
OR SEAL 2137
1
