jurop LC User Manual

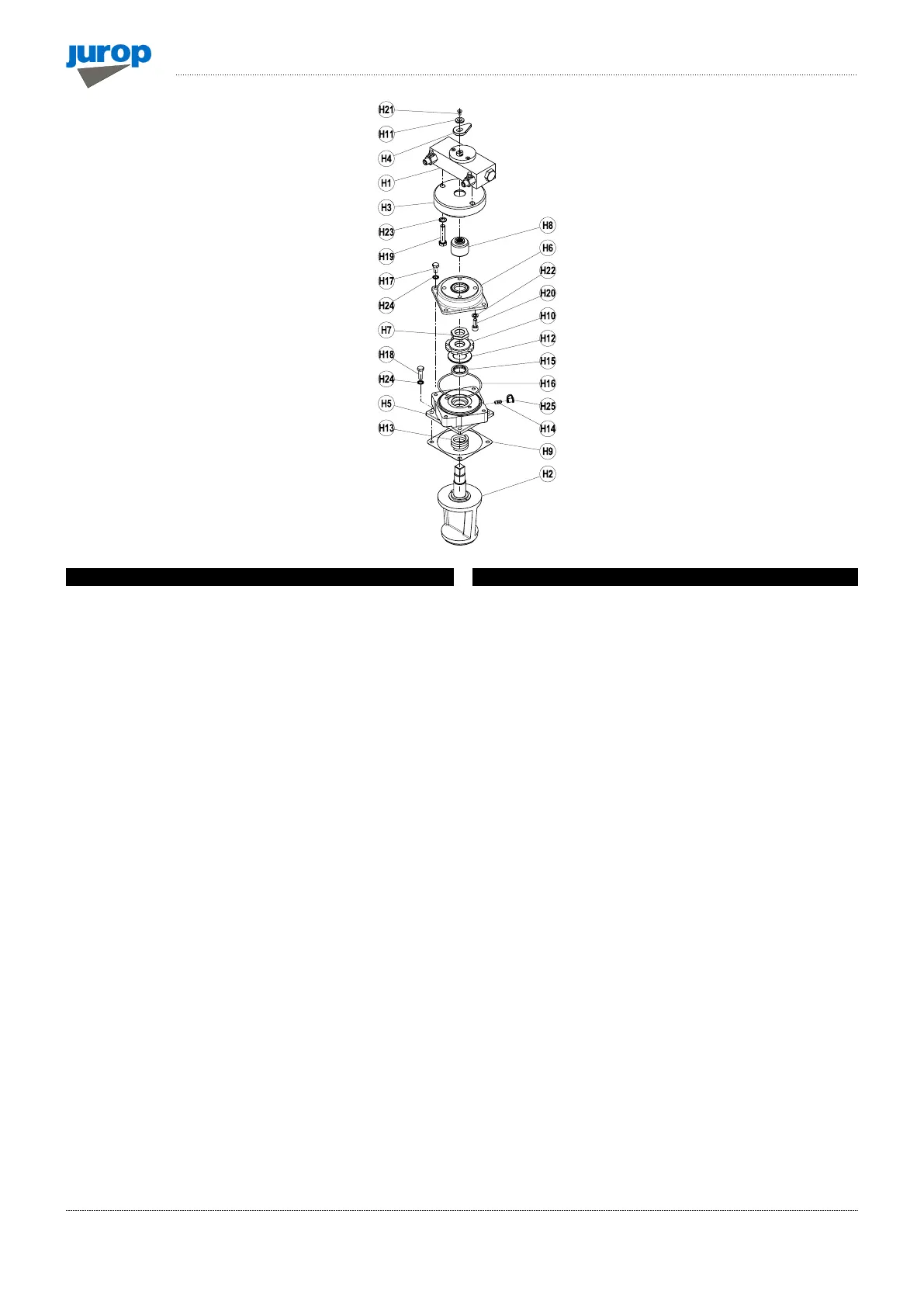

SPARE PART DATA SHEET – ACCESSORIES
REV. 12
10-12-2021
40 / 44
Jurop SpA
Via Crosera n° 50
33082 Azzano Decimo, PN (Italia)
TEL. +39 0434 636811 FAX. +39 0434 636812
http://www.jurop.it
e-mail: info@jurop.it
Pos.
Code
Description
Q.ty
Pos.
Code
Description
Q.ty
14302033E0
LC300 HYDRAULIC OPERATED 4-WAY KIT
H6
1640580QB0
COVER
1
H1
14302031E0
HYDRAULIC ACTUATOR
1
H7
167007ZAB0
NUT
1
H2
160858KNB0
INSIDE VALVE
1
H8
16732001E0
COUPLER
1
H3
16100416E0
HYDRAULIC ACTUATOR FLANGE
1
H9
1680707800
CONVEYOR-CAP GASKET
1
H4
16120286K0
PLATE
1
H10
168409PQB0
RING NUT
1
H5
161258B4B0
SUPPORT FLANGE
1
H11
16850007E0
WASHER M5
1
H6
1640580QB0
COVER
1
H12
168529TFB0
SPACER
1
H7
167007ZAB0
NUT
1
H13
1691000200
SPRING
1
H8
16732001E0
COUPLER
1
H14
4022100100
GREASER M6X1
1
H9
1680700200
CONVEYOR-CAP GASKET
1
H15
4022200005
Y-SEAL 37X27X7
1
H10
168409PQB0
RING NUT
1
H16
4022200330
O-RING 3375
1
H11
16850007E0
WASHER M5
1
H17
4026102804
SCREW TE M8X16 GALV.
4
H12
168529TFB0
SPACER
1
H18
4026102807
SCREW TE M8X25 GALV.
4
H13
1691000200
SPRING
1
H19
4026102911
SCREW TE M10X45 GALV.
2
H14
4022100100
GREASER M6X1
1
H20
4026121405
SCREW TCEI M8X20 GALV.
4
H15
4022200005
Y-SEAL 37X27X7
1
H21
4026155002
SCREW INOX304 TSPEI M5X10
1
H16
4022200330
O-RING 3375
1
H22
4026312B01
WASHER DA 8
4
H17
4026102804
SCREW TE M8X16 GALV.
4
H23
4026350708
WASHER GROWER 10 GALV.
2
H18
4026102807
SCREW TE M8X25 GALV.
4
H24
4026351505
WASHER M8 GALV.
8
H19
4026102911
SCREW TE M10X45 GALV.
2
H25
4029602700
PROTECTION CAP
1
H20
4026121405
SCREW TCEI M8X20 GALV.
4
H21
4026155002
SCREW INOX304 TSPEI M5X10
1
14302030E0
KIT INVERSORE IDRAULICO LC750
H22
4026312B01
WASHER DA 8
4
H1
14302031E0
ATTUATORE HDR ANGOLARE
1
H23
4026350708
WASHER M8 GALV.
2
H2
160858LLB0
DEVIATORE ATTUATORE
1
H24
4026351505
SCREW TE M8X25 GALV.
8
H3
16100416E0
FLANGIA SUPPORTO ATTUATORE HDR
1
H25
4029602700
PROTECTION CAP
1
H4
16120286K0
PIASTRINA
1
H5
161258L9B0
SCATOLA ATTUATORE
1
14302032E0
LC420-580 HYD OPERATED 4-WAY KIT
H6
1640580QB0
COPERCHIO ATTUATORE
1
H1
14302031E0
HYDRAULIC ACTUATOR
1
H7
167007ZAB0
DADO FILETTATO ATTUATORE
1
H2
160858KBB0
INSIDE VALVE
1
H8
16732001E0
MANICOTTO ATT. HDR DEVIATORE 4-VIE
1
H3
16100416E0
HYDRAULIC ACTUATOR FLANGE
1
H9
1680612200
GUARNIZIONE CAPPELLOTTO
1
H4
16120286K0
PLATE
1
H10
168409PQB0
GHIERA REGOLAZIONE DEVIATORE
1
H5
161258H0B0
SUPPORT FLANGE
1
H11
16850007E0
RONDELLA VITE M5
1
