SPARE PART DATA SHEET – COOLING WATER PUMP LC
REV. 12
10-12-2021
41 / 44
Jurop SpA
Via Crosera n° 50
33082 Azzano Decimo, PN (Italia)
TEL. +39 0434 636811 FAX. +39 0434 636812
http://www.jurop.it
e-mail: info@jurop.it
H12
168529TFB0
DISTANZIALE ATTUATORE
1
H19
4026102911
VITE TE M10X45 ZINC.
2
H13
1691000200
MOLLA DEVIATORE CORTA
1
H20
4026121405
VITE TCEI M8X20 ZINC.
4
H14
4022100100
INGRASSATORE SFERICO DIR. M6X1
1
H21
4026155002
VITE INOX304 TSPEI M5X10
1
H15
4022200005
ANELLO TENUTA 37X27X7
1
H22
4026312B01
RONDELLA IN RAME DA 8
4
H16
4022200330
ANELLO OR 3375
1
H23
4026350708
RONDELLA GROWER 10 ZINC. PIATTA
2
H17
4026102804
VITE TE M8X16 ZINC.
4
H24
4026351505
RONDELLA DENTATA M8 ZINC.
8
H18
4026102807
VITE TE M8X25 ZINC.
4
H25
4029602700
CAPPUCCIO PROTEZIONE
1
Pos.
Code
Description
Q.ty
Pos.
Code
Description
Q.ty
LC300
LC750
VERSION WITH FLANGE
VERSION WITH FLANGE
F1
1627505500
FLANGED MANIFOLD
1
F1
1610040000
FLANGE
2
F2
1627505600
WASHER GROWER M8
1
F2
168079XIB0
GASKET
2
F3
4026350706
SCREW M8X25
12
F3
4026102808
SCREW TE M8X30 GALV.
8
F4
4026102807
SCREW M10X10
12
F4
4026350706
SCREW GROWER M8 GALV.
8
F5
4026135504
FLANGED MANIFOLD
1
1852104300
ADJUSTABLE CONVEYOR Ø120
1852109000
ADJUSTABLE CONVEYOR Ø76
C1
1610101200
FLANGE
2
C1
1610100000
CONVEYOR FLANGE
1
C2
1627102900
CONVEYOR D.120
2
C2
1627100500
CONVEYOR Ø76
1
C3
4022200314
O-RING 193 VITON
2
C3
4022200307
OR 6287
1
C4
4026102808
SCREW TE 8,8 M8X30 GALV.
8
C4
4026103002
SCREW M12X30
2
C5
4026350706
WASHER GROWER M8 GALV.
8
C5
4026350709
WASHER GROWER M12
2

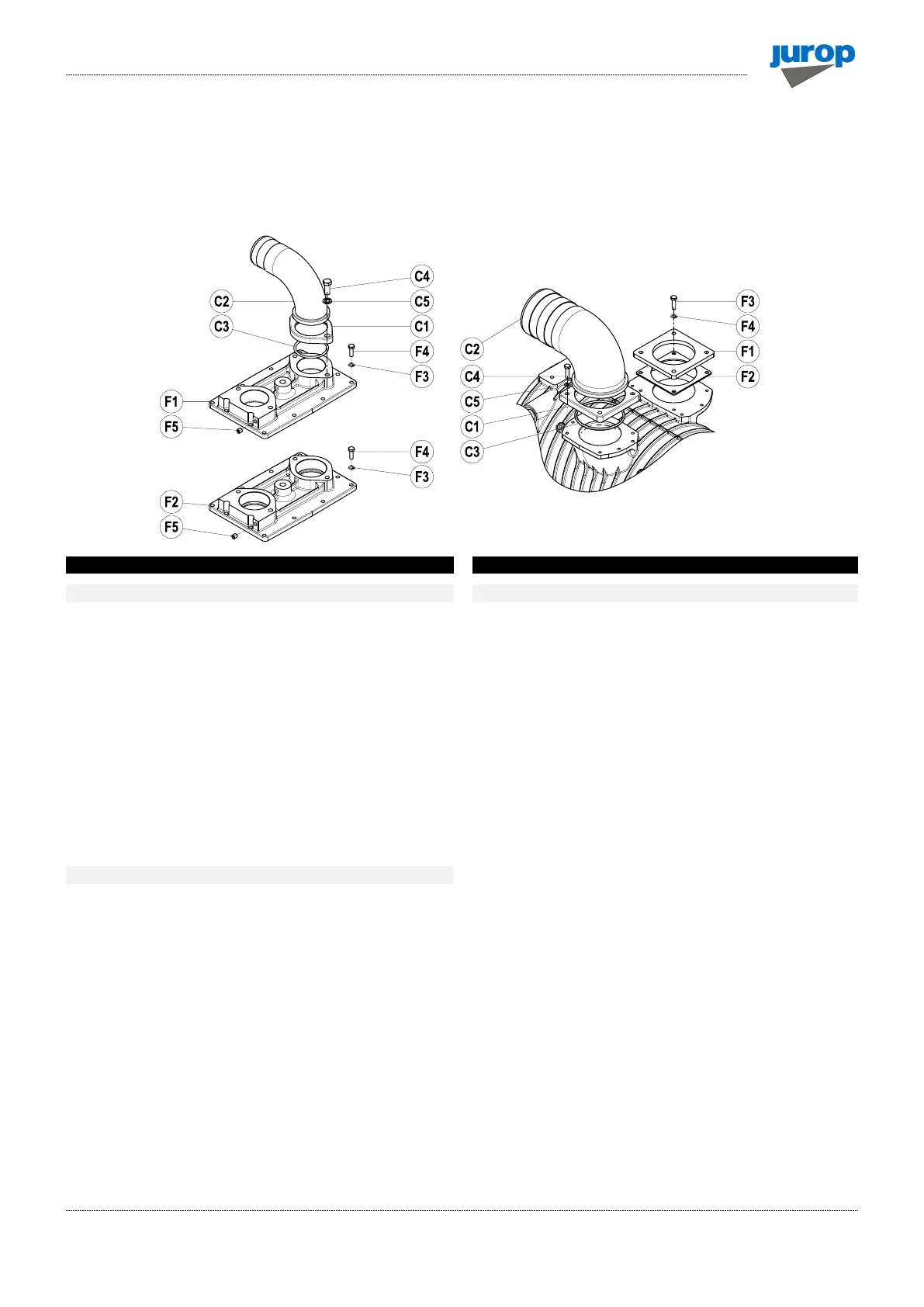

LC420-580
VERSION WITH FLANGE
F1
1627504800
FLANGED MANIFOLD
1
F2
1627504900
TOOTHED WASHER M8
1
F3
4026351505
SCREW M8X25
12
F4
4026102807
SCREW M10X10
12
F5
4026135504
FLANGED MANIFOLD
1
1852103900
ADJUSTABLE CONVEYOR Ø80
1852104000
ADJUSTABLE CONVEYOR Ø100
C1
1610101100
CONVEYOR FLANGE
1
C2
1627102700
CONVEYOR Ø80
1
1627102400
CONVEYOR Ø100
1
C3
4022200310
O-RING 6362
1
C4
4026102808
SCREW TE M8X30 UNI5739 GALV.
4
C5
4026350706
WASHER GROWER 8 FLAT SEC. GALV.
4
