• Sliding vanes vacuum pump injection cooled. Is meant for heavy duty.
• Manifold with non-return valve on the pump inlet.
• Rear oil tank. Side oil tank available on request.
• Built-in vacuum-pressure changeover valve. Pneumatic or hydraulic actuator are available.
• Transmission:
- Direct with smooth or splined shaft.
- Hydraulic motor.
STANDARD EQUIPMENT
• Sliding-vanes, air cooled vacuum pump.
• Asbestos-free sliding vanes.
• Automatic lubrication by means of a volumetric pump and an oil
tank.
• Asymmetrical manifold with check valve installed on the pump
inlet.
• Pivoting suction and exhaust conveyors in aluminum alloy.
• Direct transmission with smooth or splined shaft (ASAE 1 3/8”).
• Counter clockwise rotation.
• Injection cooled.
AVAILABLE ON REQUEST
• Clockwise rotation.
• Serbatoio olio laterale.
• Transmission with hydraulic motor.
• Gearbox transmission.
• Pulley for the belt drive.
• Pneumatic actuator for the vacuum/pressure changeover valve.
• Hydraulic actuator for the vacuum/pressure changeover valve.
R
R
2
2
6
6
0
0
WEIGHT R 260
Direct transmission (smooth or splined shaft) 170 kg (375 Ibs)
Hydraulic motor 205 kg (450 Ibs)
2.
Technical data

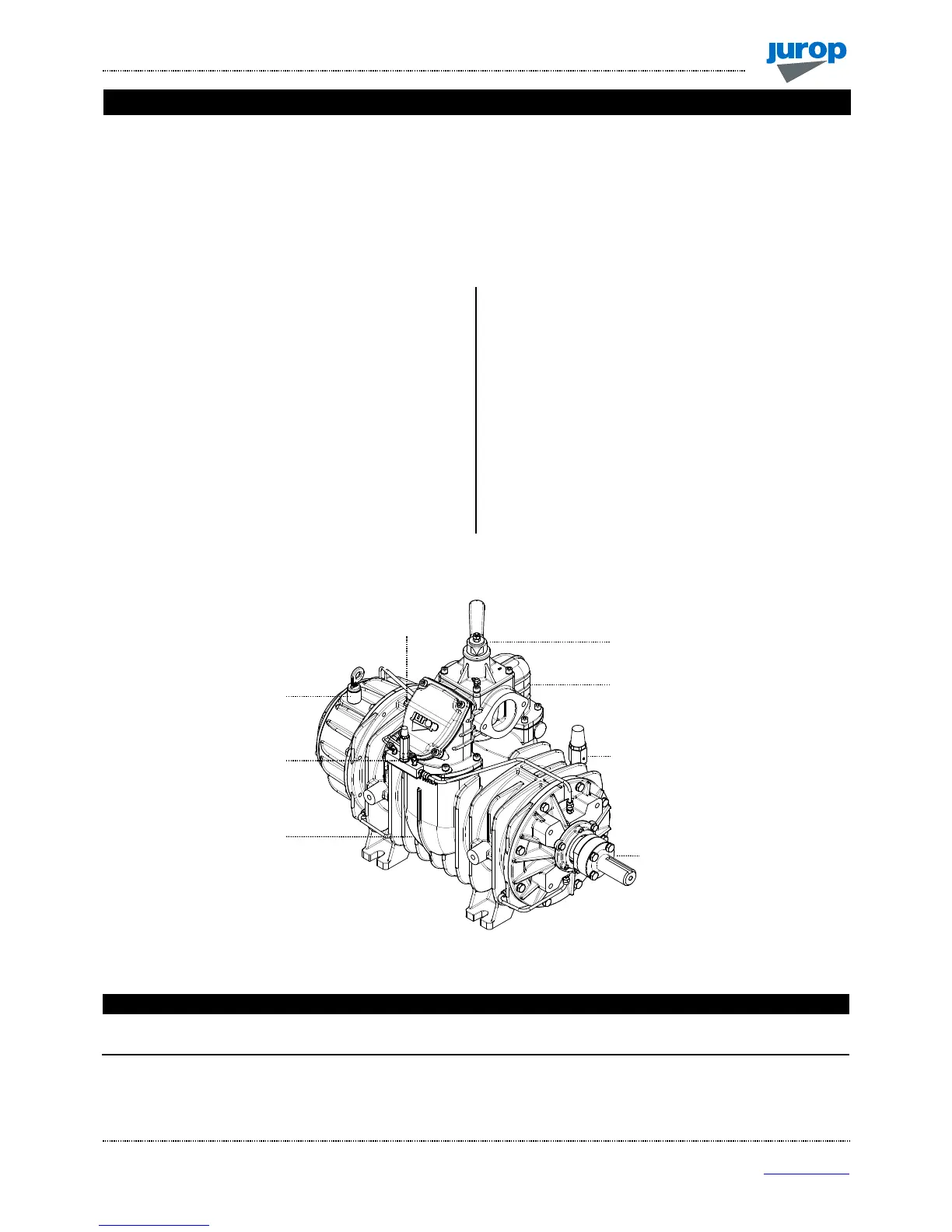

AIR INJECTION VALVES
MANIFOLD WITH NON
-
RETURN VALVE ON THE PUMP INLET
EUROPEAN PATENT APPL
ICATION
HOUSING
SMOOTH SHAFT
OIL TANK
OIL FILLING PORT AND
DIP STICK
VACUUM
/
PRESSURE
CHANGEOVER VALVE
VANES
INSPECTION
PORT
ONE - WAY VALVE
