I NSTALLATION , USE AND MAINTENANCE MANUAL – RV360 - 520
R
EV
.
0
9
21-03-2016
6 / 32
Jurop
SpA
Via Crosera n° 50
33082 Azzano Decimo, PN (Italia)
T
EL
.
+39
0
434
636811
F
AX
.
+39
0
434
636812
http://www.jurop.it
e-mail: info@jurop.it
RV360 – RV520

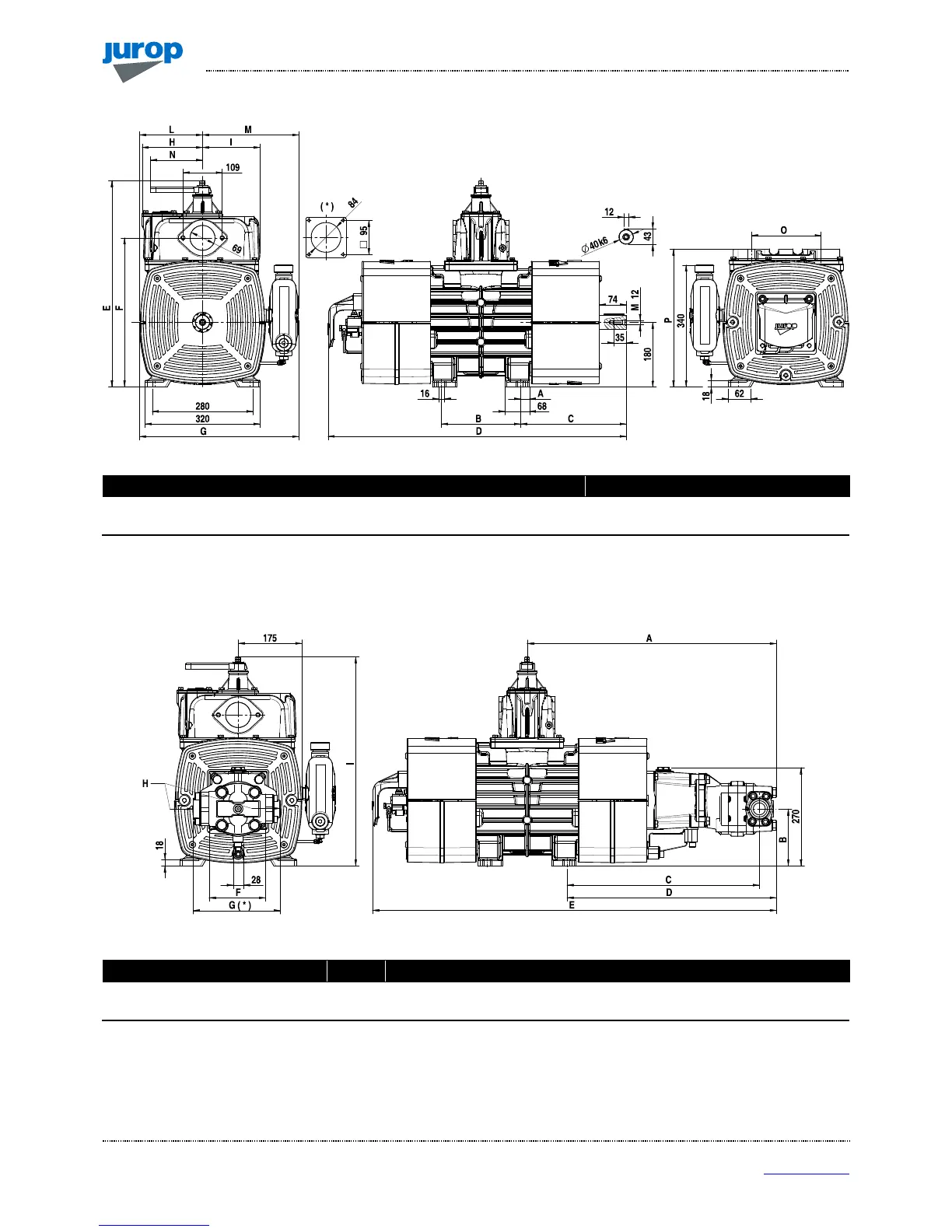

Dimensions (mm) A B C D E F G H I L M N O P
RV 360 25 220 294 830 577 415 443 168 160 175 267 145 192 384
RV 520 29,5 286 334 975 598 429 438,5 156,5 187,5 160 278,5 195 210 392
(*) : dimension of RV520 manifold
RV360 HDR – RV520 HDR
Dimensions (mm) A B C D E F G ( * ) H (IN) H (OUT) I
RV 360 HDR 686 157 529 576 1111 155 240 G1” ¼ G1” ½ 577
RV 520 HDR 741 149 527 598 1239 150 - G ¾ G1” 597,5
(*) : Dimension referred to RV360 hydraulic motor with flanges version.
F LANGE VERSION (FL)
