• Rotary vacuum pump cooled by high efficiency contrapposed fans. The airflow reduces the temperature of the internal parts normally
subjected to wear like bearings, vanes and sealings.
• High resistance tangential vanes. Suitable for heavy duty operation.
• Automatic lubrication with positive displacement pump. Side mounted oil tank. Copper oil piping.
• N°2 vane inspection ports.
• Built-in 4-way vacuum/pressure manifold. Pneumatic actuator available on request.
• Non-return valve integrated in the pump manifold (RV360). Check valve installed on the pump inlet (RV520).
• Aluminum conveyors.
• Available in flanged version (FL).
• Drive system:
- Direct with smooth shaft;
- With hydraulic motor.
Weight
RV 360 manifold RV 360 FL RV 520 manifold RV 520 FL
Direct with smooth shaft 175 kg 166 kg 220 kg 210 kg
With hydraulic motor 205 kg 196 kg 250 kg 240 kg

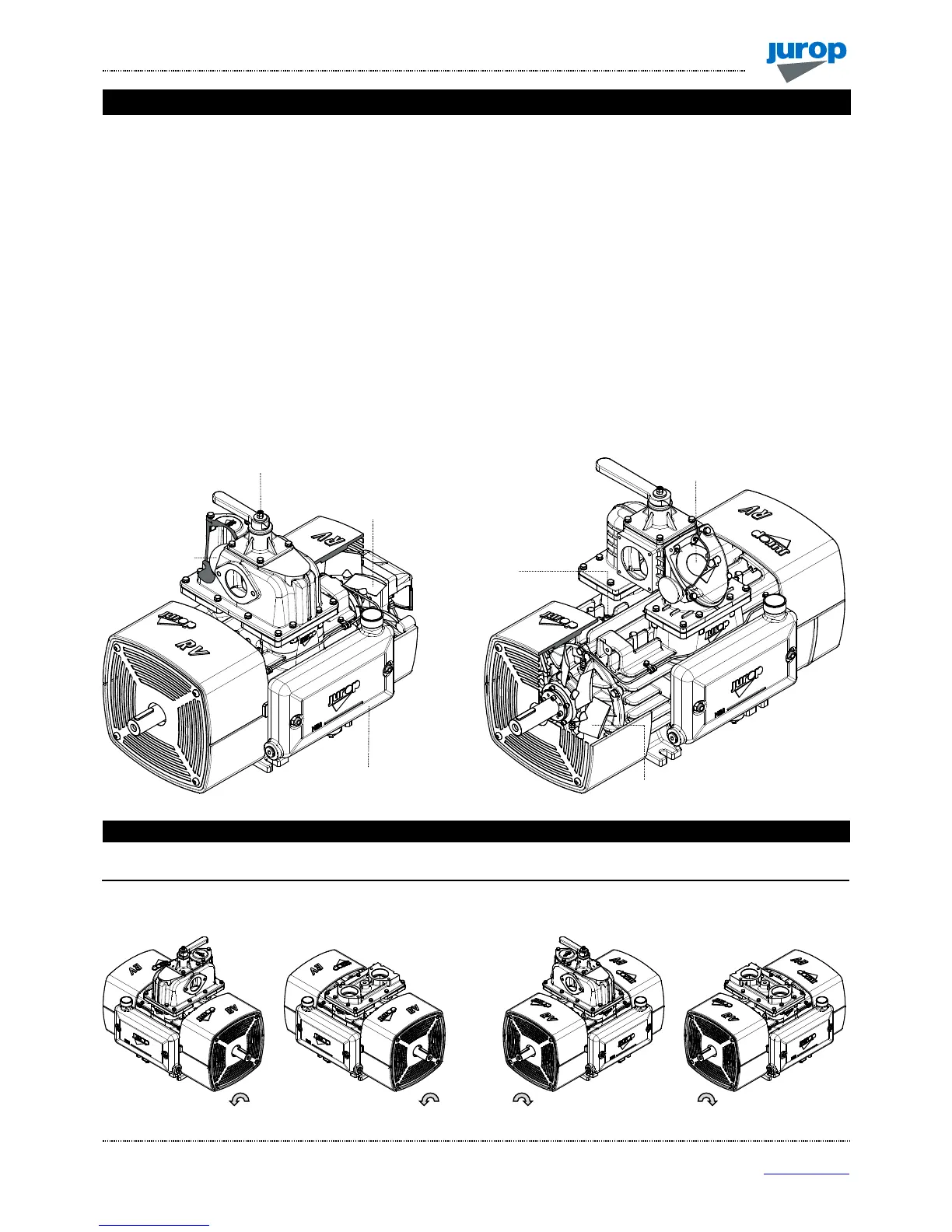

2.1 Dimensions and arrangement RV 360 – RV 520
2.
Technical data
R
R
V
V
3
3
6
6
0
0
R
R
V
V
5
5
2
2
0
0
R OTATION LEFT – W ITH MANIFOLD R OTATION LEFT – W ITH FLANGE
R
OTATION RIGHT
–
W
ITH MANIFOLD
R
OTATION RIGHT
–
W
ITH FLANGE
FAN
FAN
SIDE MOUNTED
OIL TANK
NON RETURN VALVE
INTEGRATED
4 WAY MANIFOLD
NON RETURN VALVE
INTEGRATED
VANE INSPECTION
PORTS
