9
English
RIGHT
LEFT
SPEAKER IMPEDANCE
6~16Ω
SPEAKERS
INPUTINPUT
Red
1
Black
Speaker
cord
Rear of the right
speaker
Rear of the left
speaker
2
3,4
Speaker terminals
Red
Black
Speaker
cord
AV
COMPU
LINK
ANTENNA
Vinyl-covered wire
(not supplied)
AM loop antenna
(supplied)
3
1
2
AM antenna

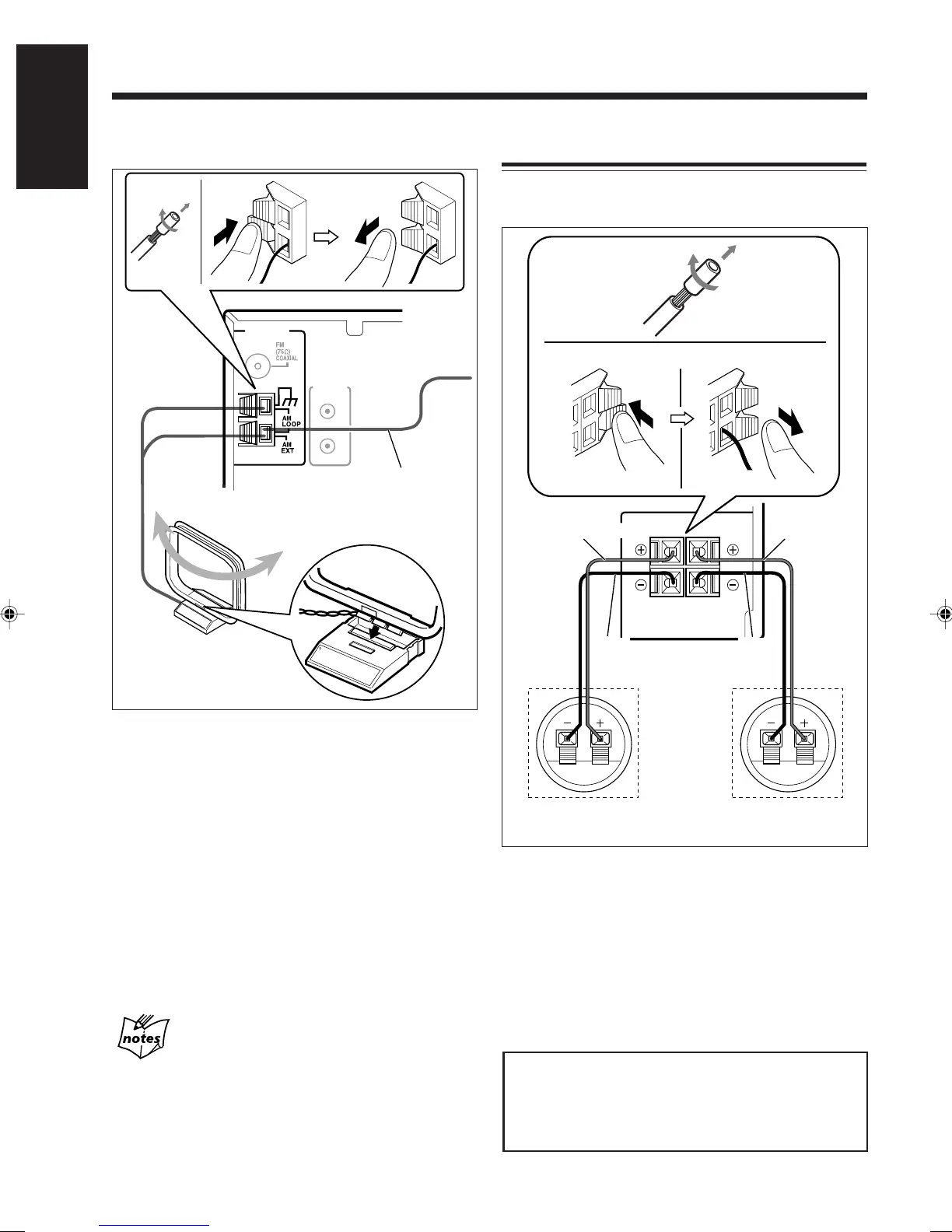

1 If the cords are covered with insulation, remove the
short section of insulation at the end of each cord by
twisting and pulling it off.
2 Connect the AM loop antenna to the AM LOOP
terminals as illustrated.
3 Turn the AM loop antenna until you have the best
reception.
To connect an outdoor AM antenna
When reception is poor, connect a single vinyl-covered
wire to the AM EXT terminal and extend it horizontally.
The AM loop antenna must remain connected.
For better reception of both FM and AM
• Make sure the antenna conductors do not touch any other
terminals or connecting cords.
• Keep the antennas away from metallic parts of the unit,
connecting cords, and the AC power cord.
Connecting Speakers
To connect speakers
You can connect the speakers using the speaker cords.
1 If the cords are covered with insulation, remove the
short section of insulation at the end of each cord by
twisting and pulling it off.
2 Hold the clamp of the speaker terminal.
3 Insert the end of the speaker cord into the terminal.
Match the polarity of the speaker terminals: (+) to (+)
and (–) to (–).
4 Release your finger from the clamp.
IMPORTANT:
• Use only speakers with the same speaker impedance as
indicated by the speaker terminals on the rear of the unit.
• DO NOT connect more than one speaker to one speaker
terminal.
EN08_17UX_A7DVD[UF].pm6 03.2.26, 9:24 PM9
