13

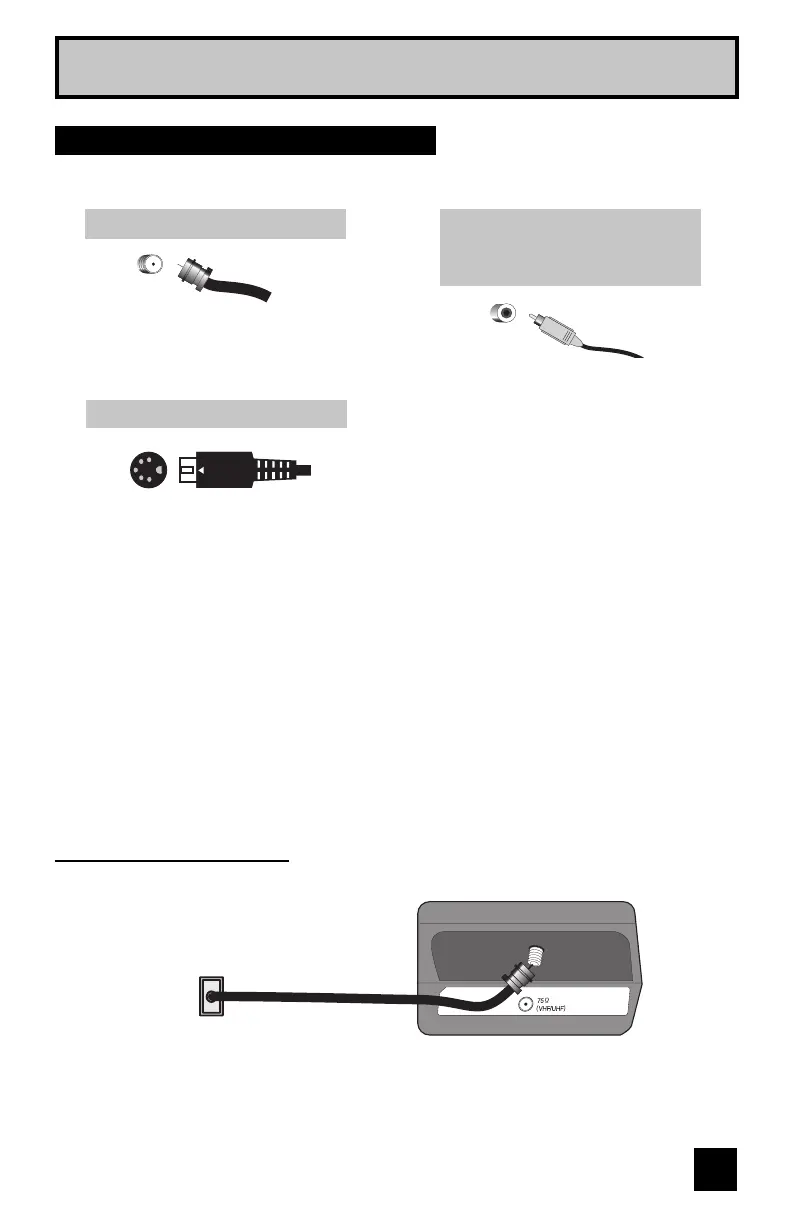

Step 2 - Connecting your devices
Quick Setup
Notes:
• The following connection diagrams are examples.
• After you are finished connecting your devices, plug the power cord into the nearest power
outlet and turn on the TV.
• If you follow these diagrams and the television does not work properly, contact your local
cable operator.
• To connect a DVD player, see VCR Connection.
• If you have a satellite television system, refer to the satellite TV manual.
Used to connect an external
antenna or cable TV system to your
TV.
Used to make video connections
with S-Video VCRs, Camcorders
and DVD players.
Coaxial Cables
S-Video Cable
Used to connect audio/video
devices like VCRs, DVD players,
stereo amplifiers, game consoles,
etc.
Component Cables
Composite Cables
Audio Cables
To make these connections, you will use plugs like the ones illustrated below.
TV Rear Panel
Cable or Antenna
Output
Coaxial Cable
No VCR Connection
To Next Page
