Chapter 7---Troubleshooting
Model 250 Service Manual 7-17

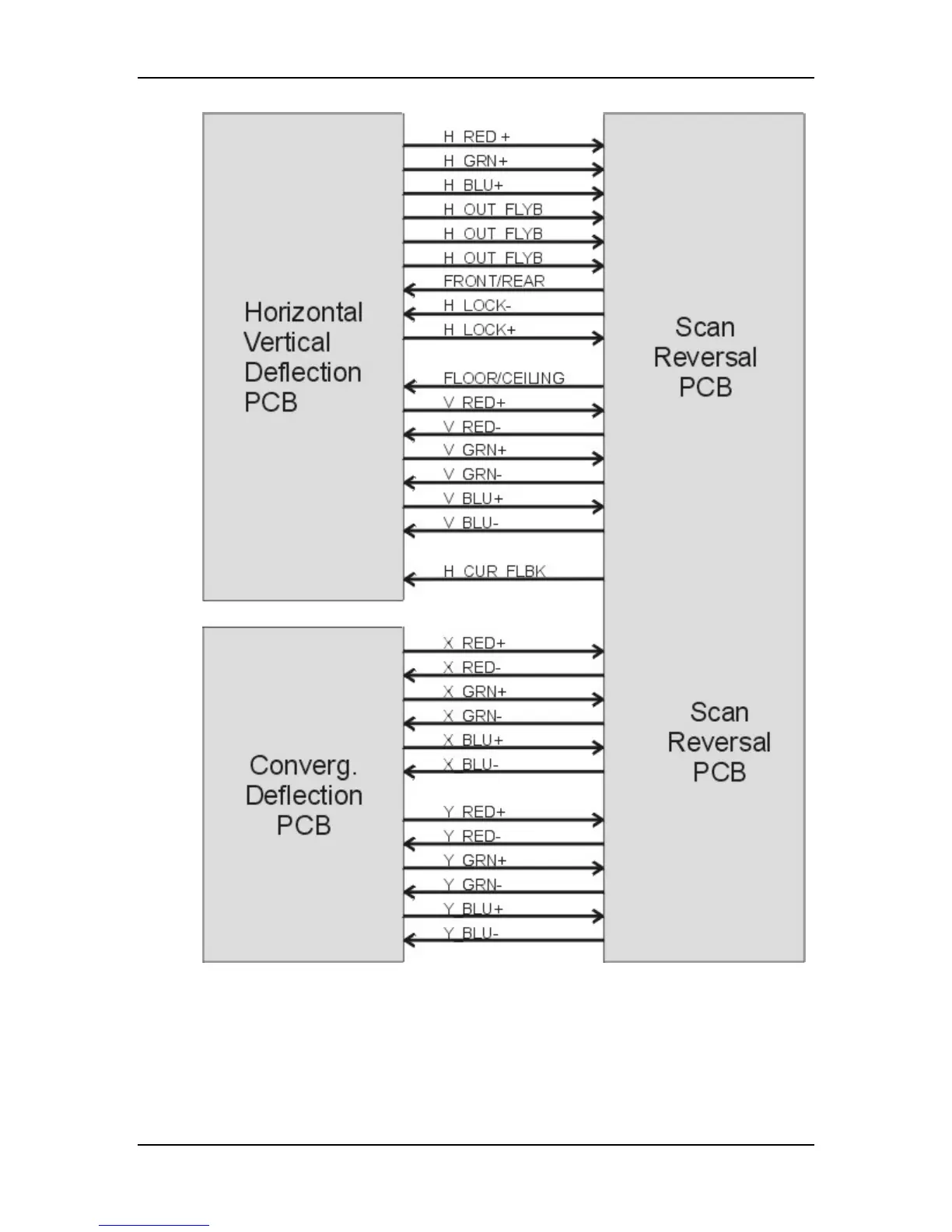

Figure 7-13
CRT Deflection path between Horiz/Vert Deflection PCB,
Convergence Deflection PCB and Scan Reversal PCB.
