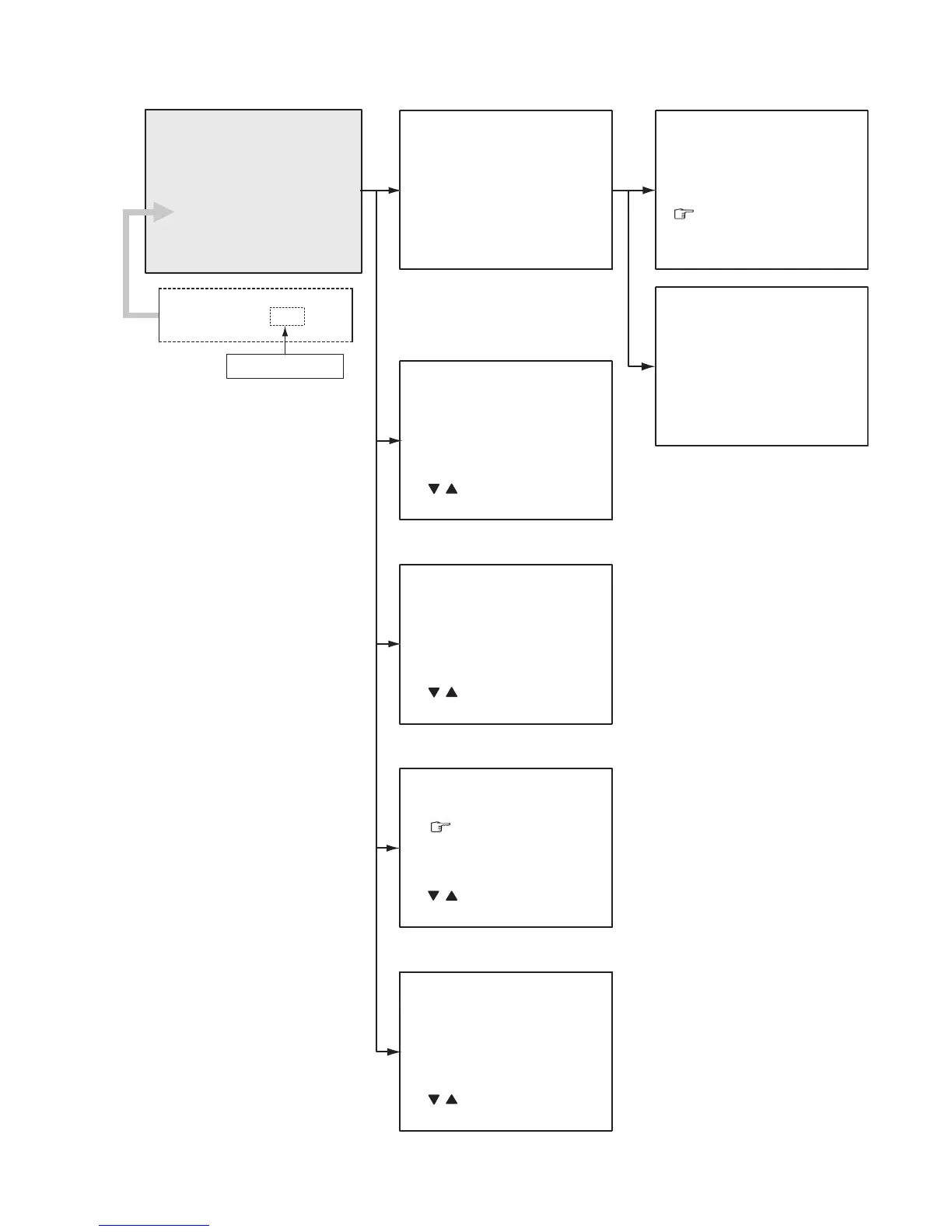

4.6.8 SERVICE MENU FLOW CHART
SERVICE MENU
IF
1. VCO
2. DELAY POINT
1-2 : SELECT DISP : EXIT
1. IF
VCO (CW)
***.**
MHz
TOO HIGH
ABOVE REFERENCE
JUST REFERENCE
BELOW REFERENCE
TOO LOW
AFT ADJUST
***
(
**
)
VCO ADJUST
***
(
**
)
FINE
DISP : EXIT
DELAY POINT UHF
AGC TAKE-OVER
**
- / + : OPERATE DISP : EXIT
6. SETUP TOUR OFF
BRIGHT
TINT
**
COLOUR
**
BRIGHT
**
CONT.
**
SHARP
**
- / + : OPERATE DISP : EXIT
4. VSM PRESET
/ : SELECT
DEF AUTO
- / + : OPERATE DISP : EXIT
3. DEF
/ : SELECT
50Hz
1. VER. POSITION
**
V/C PAL
1. CUTOFF
(R)
* **
(G)
* **
(B)
* **
- / + : OPERATE DISP : EXIT
50Hz
2. V/C
/ : SELECT
PRESET AUTO
1. C-TRAP FIX
*
- / + : OPERATE DISP : EXIT
50Hz B/G
5. PRESET
/ : SELECT
SERVICE MENU
1.IF 2.V/C
3.DEF 4.VSM PRESET
5.PRESET
6.SETUP TOUR OFF
1-6 : SELECT DISP : EXIT
************ **.***
************ **.***
*** ** **** ***
ON / OFF
(By pressing [6] key)
